LEFT (OR UPPER) FOUR RIGHT (OR LOWER) FOUR
OUTPUT
Main (ch1) not used (ch2) SUB (ch3) Main (ch3) not used (ch5) SUB (ch6)
Output Gain
0 0.0 dB 0 0.0 dB
Input Source
A A, A+B or B B, A+B or
(Alt Source)
(C for Aux sub) (A for 8 mono) (C for Aux sub)
Polarity
OUT IN OUT IN
LPF frequency
20 KHz 80Hz 20 KHz 80Hz
LPF type
OUT Linkwtz 24 OUT Linkwtz 24
HPF frequency
80 Hz 32 Hz 80 Hz 32 Hz
HPF type
Linkwtz 24 Butter 18 Linkwtz 24 Butter 18
Limit Threshold
0dB 0dB 0dB 0dB
Output Delay
PEQ1 GAIN
6 dB 6 dB
PEQ1 FREQ
630 Hz 630 Hz
PEQ1 BW
0.16 0.16
PEQ2 GAIN
-9 dB -9 dB
PEQ2 FREQ
2.7 KHz 2.7 KHz
PEQ2 BW
0.12 0.12

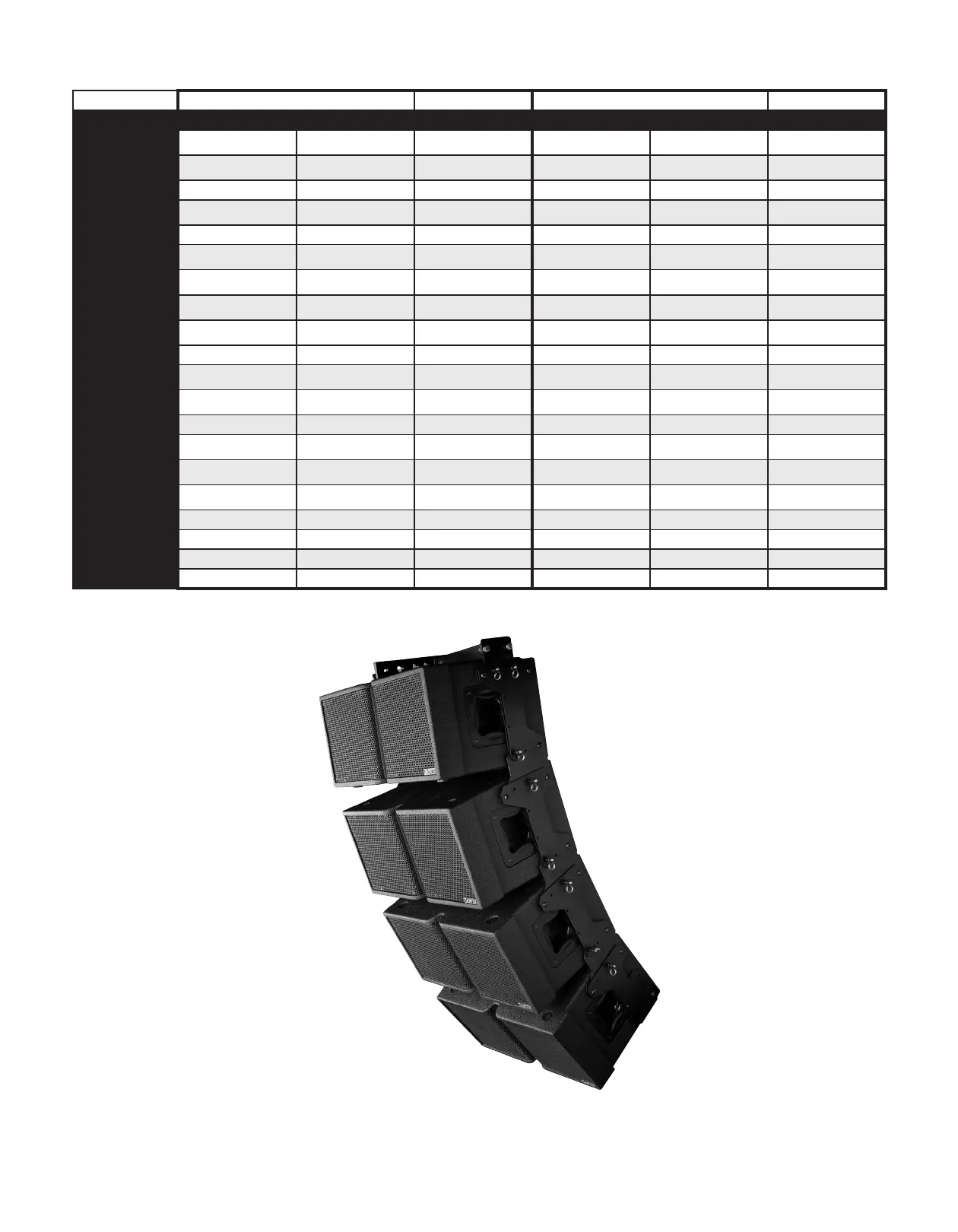

Stereo passive 4 array modules 2.5 - 12.5 degree Curve array
Also works for 8 module passive mono hang using right as upper and left as lower.
4 enclosure Curve Array
