6871082-R26

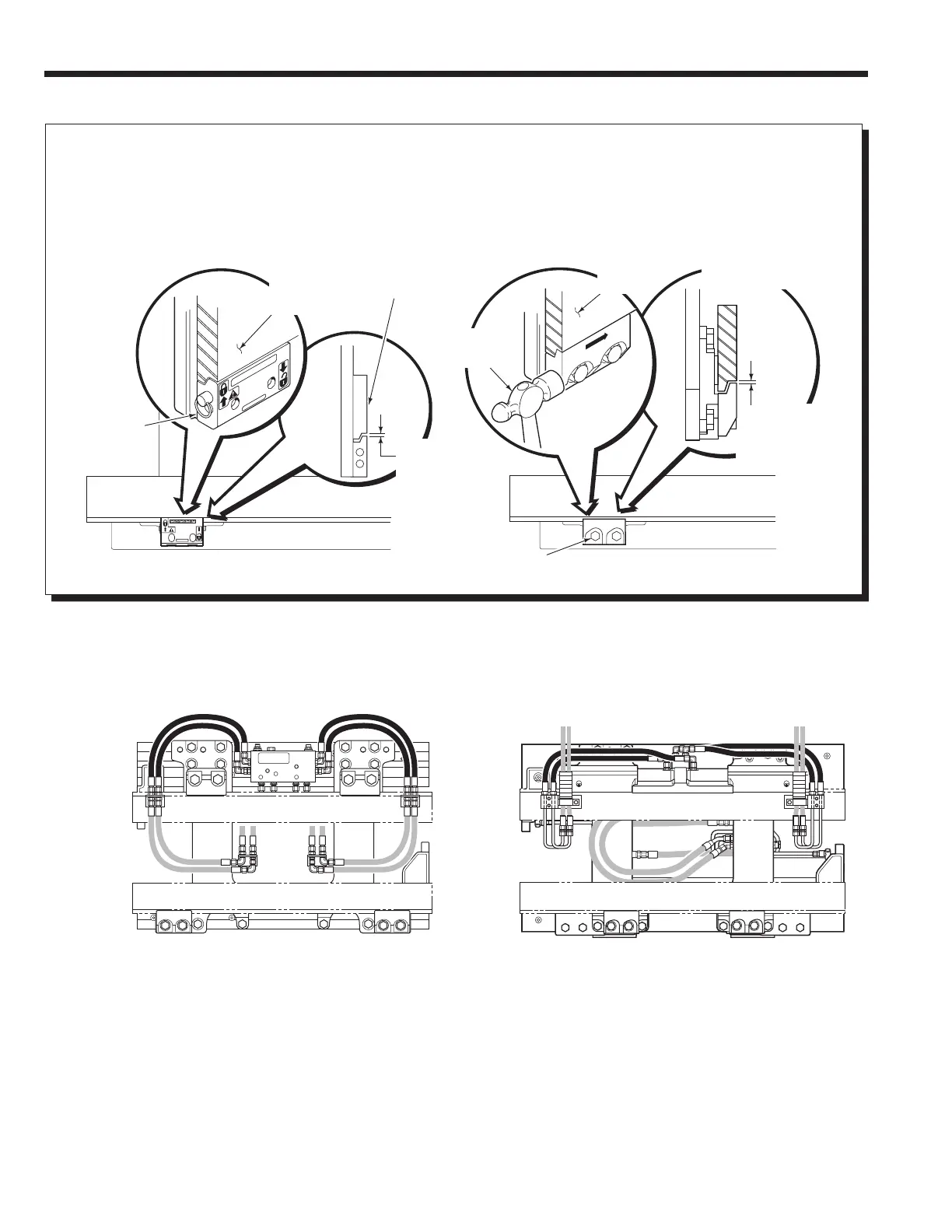

INSTALLATION
cascad
e
®
C-675514-1
GA0371.eps
Tighten capscrews to 120 ft.-lbs. (165 Nm)
Install and engage lower hooks
BOLT-ON TYPE
w/ INTERNAL
SIDESHIFTING
QUICK-CHANGE TYPE
Inspect hooks for
excessive clearance.
(Reverse guides to change
clearance – See Step 2.)
Lower
Carriage
Bar
Slide hook
up to engage
bar, install pin
in upper hole
(locked.)
0.18 in.
(5 mm)
Max.
Tap tight into
position.
Clearance:
0.06 in. to 0.18 in.
(1.5 to 5 mm)
IMPORTANT: Adjust
lower hooks for
operating clearance.
Lower
Carriage
Bar
BOLT-ON TYPE
w/ EXTERNAL
SIDESHIFTING
6
CL3407.eps
Connect hoses prepared in
Step 3 to attachment
Internal Hose Reeving Hydraulic Supply
(Standard Attachment Shown)
Hose Reels Hydraulic Supply (External Sideshifter)
7
To Next Page
