CASE CONSTRUCTION 1107EX-D - MAINTENANCE; Machine disposal

1-GENERALINFORMATION
Withcab

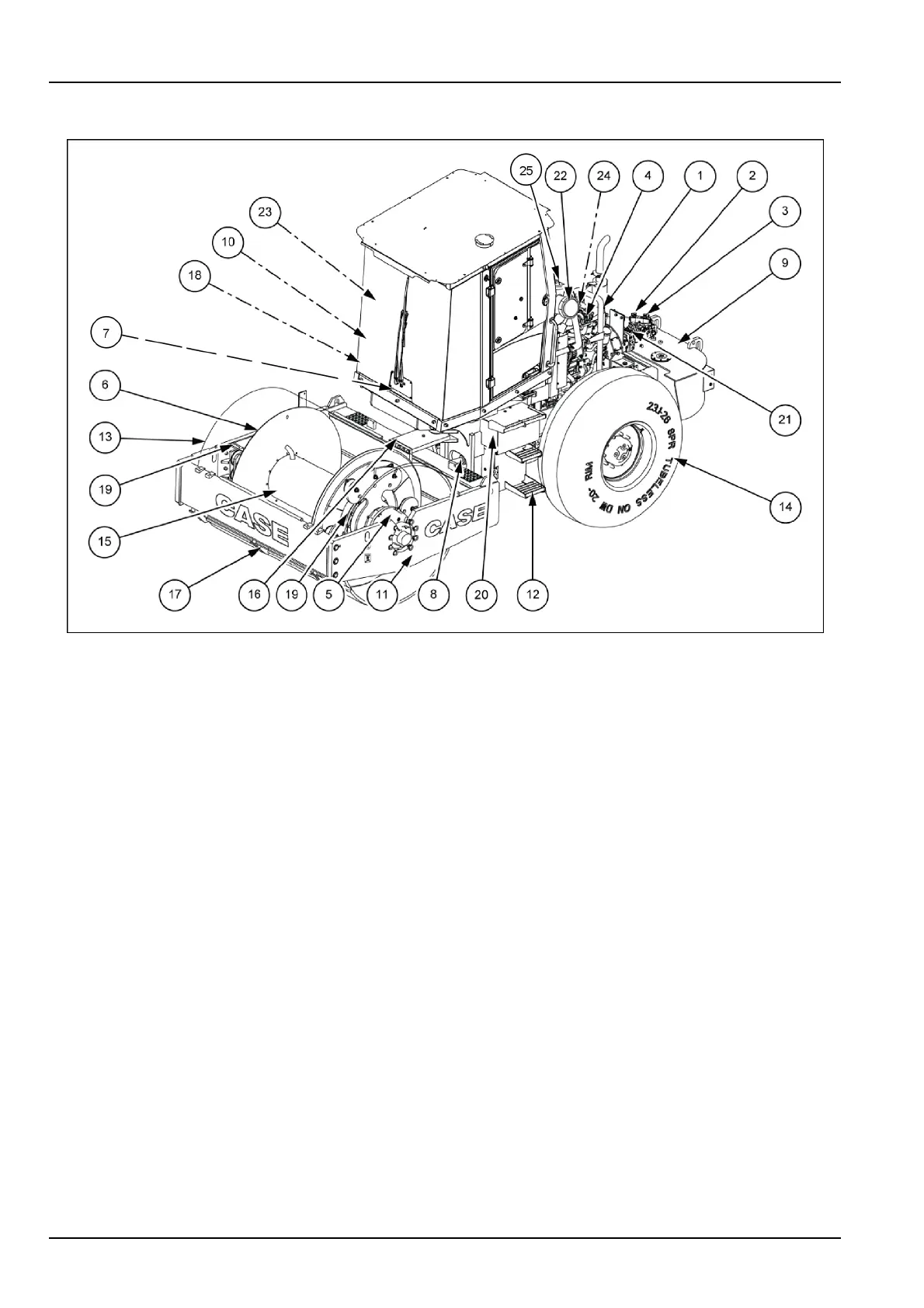

PTIL17COM1100FA2
1.
Engine
14.Tires
2.
Travelpump
15.
Excitershaft
3.
Vibrationpump
16.
Articulationjoint
4.
TurboCharger
17.
Scrapper
5.
Auxiliarymotor
18.
Cab
6.Vibrationmotor19.
Elasticsuspension
7.
Steeringunit(insidecab)
20.
Battery
8.
Steeringcylinders
21.
Hydraulicoillter
9.Fueltank22.
Airlter
10.
Hydraulicoiltank(ontheright-handsideofthe
machine)
23.
Operator’sseat(insidecab)
11.
Frontrollerframe
24.
Steeringpump
12.Rearchassis25
Compressor
13.Frontdrum
1-10
