8-SPECIFICATIONS

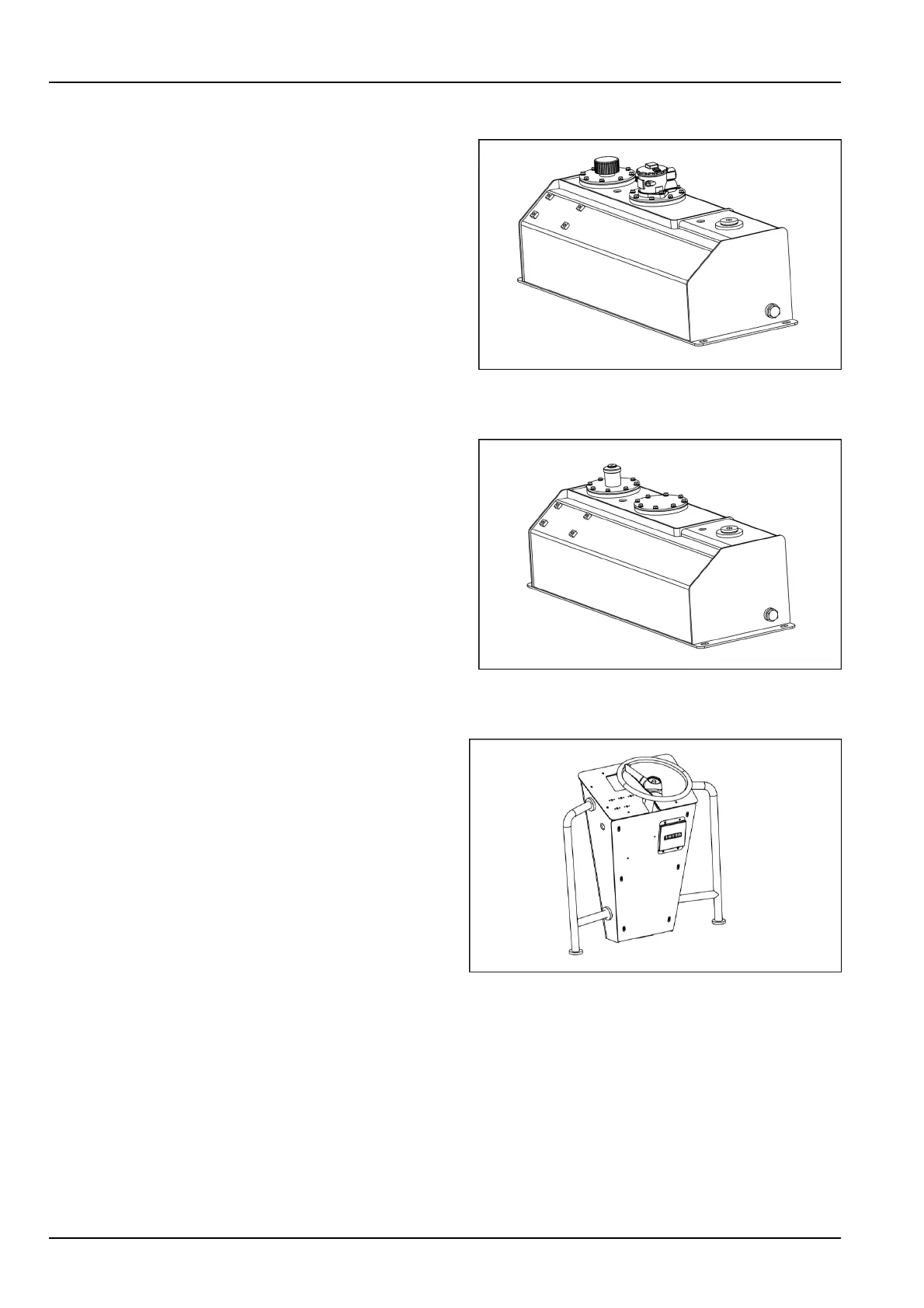

7.WaterHydraulicTank
Thewater-oiltankismountedonthefrontchassis.Itis
dividedintotwocompartments-Oneactingasawaterunit
ofcapacity60litersandtheotheractingasahydraulic
oilunitofcapacity42liters.Thewaterchamberhasa
levelindicatortoindicatetheminimumlevelofwater.The
Hydraulicoilchamberisprovidedwithtwolevelindicators.
Onefortheminimumandtheotherforthemaximumlevel.
ABreathercumllercap,mountedoverthehydraulicoil
chamber,ensuresthataconstantpressureismaintained
inside.Areturnsuctionlterisalsomountedovertheoil
chamber.Thewater-oiltankisprovidedwithtwodrain
plugs.Onebelowthehydraulicoilchamberandtheother
belowthewaterchamber,foreffectivedrainage.
PTIL15COM0210AA8
8.Water-DieselTank
AsimilarshapedtankismountedontheOperator'splat-
form,whichactsastheWater-Dieseltank.TheWa-
ter-Dieseltankisprovidedwiththesameaccessoriesex-
ceptthebreatherandlter.TheDieseltank,withacapac-
ityof42liters,isprovidedwithalockablefuelllerneck.
PTIL15COM0211AA9
9.ControlTower
Controltowerconsistsofcontrolpanel,steeringwheel
andMCBassembly.
