8-SPECIFICATIONS

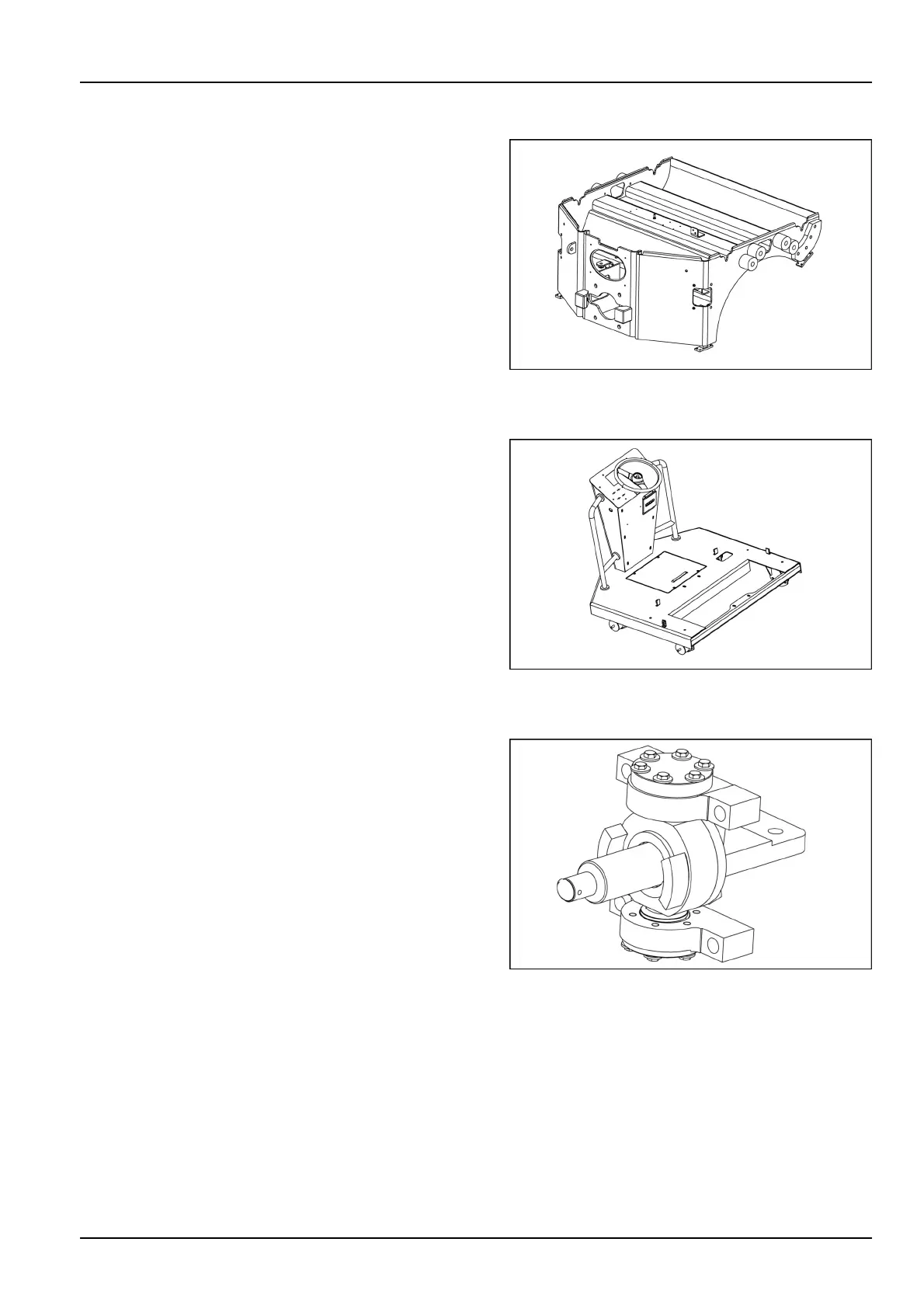

4.RearChassis
Therearchassissupportstherearrollerassembly,Water
Dieseltank,Operator'sPlatform&Canopy.Thisiscon-
nectedtotheFrontchassisbymeansofanarticulation
joint.
PTIL15COM0207AA5
5.OperatorsPlatform
Operator'sPlatformismountedontherearchassisby
meansofAVMtocutdownthevibrations,therebyenhanc-
ingtheOperator'scomfort.
PTIL15COM0208AA6
6.ArticulationJoint
Thefrontrollingpartandtherearrollingpartarecoupled
bymeansofacouplingcalled
PTIL15COM0209AA7
8-17
