3 - SAFETY/DECALS
7

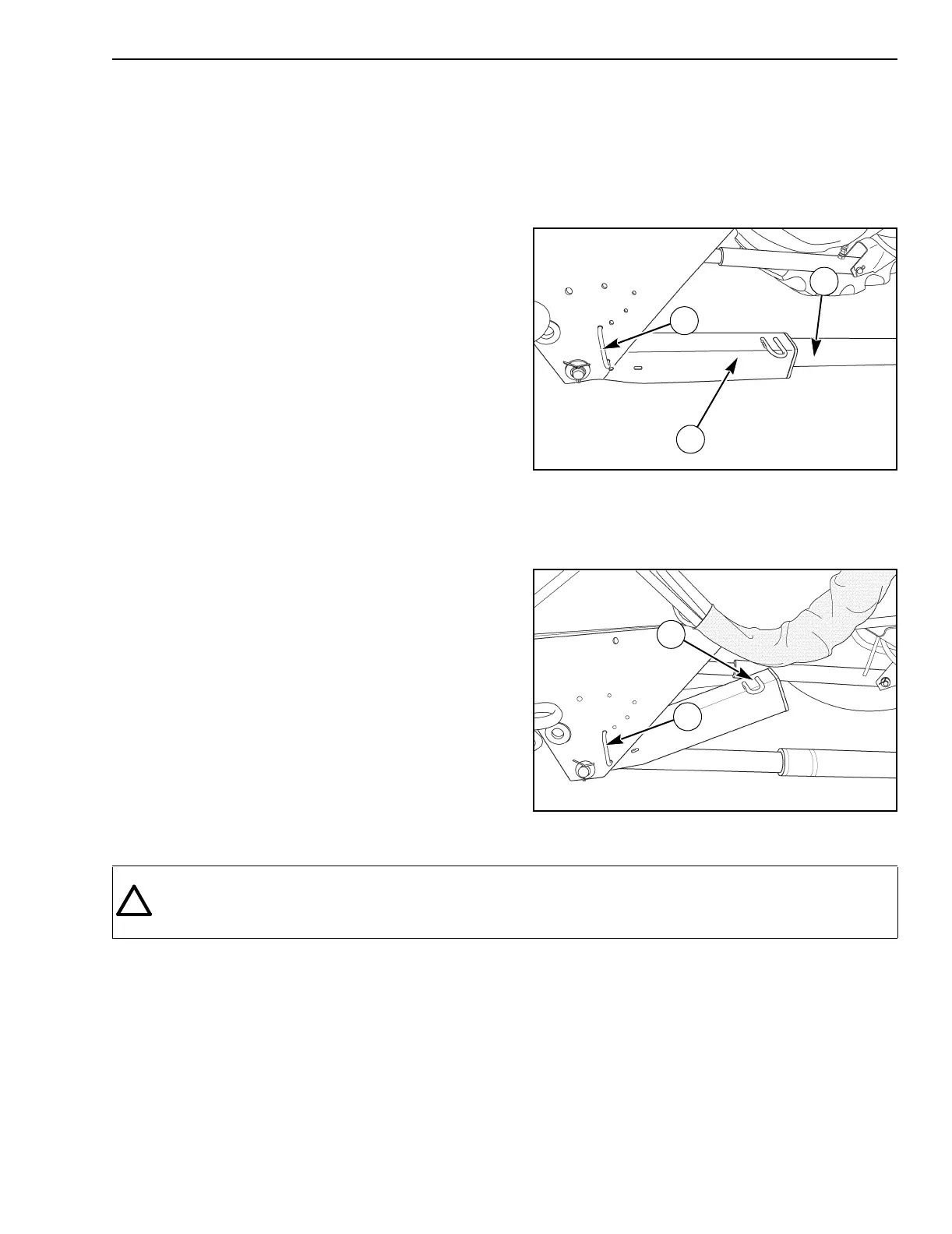

Feeder Safety Lock
The left feeder lift cylinder is equipped with a safety lock. The safety lock is used to prevent accidental lowering of
the feeder or header. ALWAYS engage the feeder safety lock before working under the feeder or header.
TO ENGAGE THE FEEDER SAFETY LOCK:
1. Raise the feeder to the maximum height.
2. Pull the latch pin (1) out to release the feeder
safety lock(s) (2). Lower the feeder safety
lock(s) over the Left lift cylinder rod (3).
TO DISENGAGE THE FEEDER SAFETY LOCK:
Rotate the feeder safety lock (2) up and the latch
pin (1) will engage.
RD01H174
2
3
1
RD01H175
2
1
WARNING: Always shut OFF engine, remove the key and engage feeder safety lock in position on lift
cylinder before working under Header or feeder. Failure to engage feeder safety lock may cause injury or
death.
