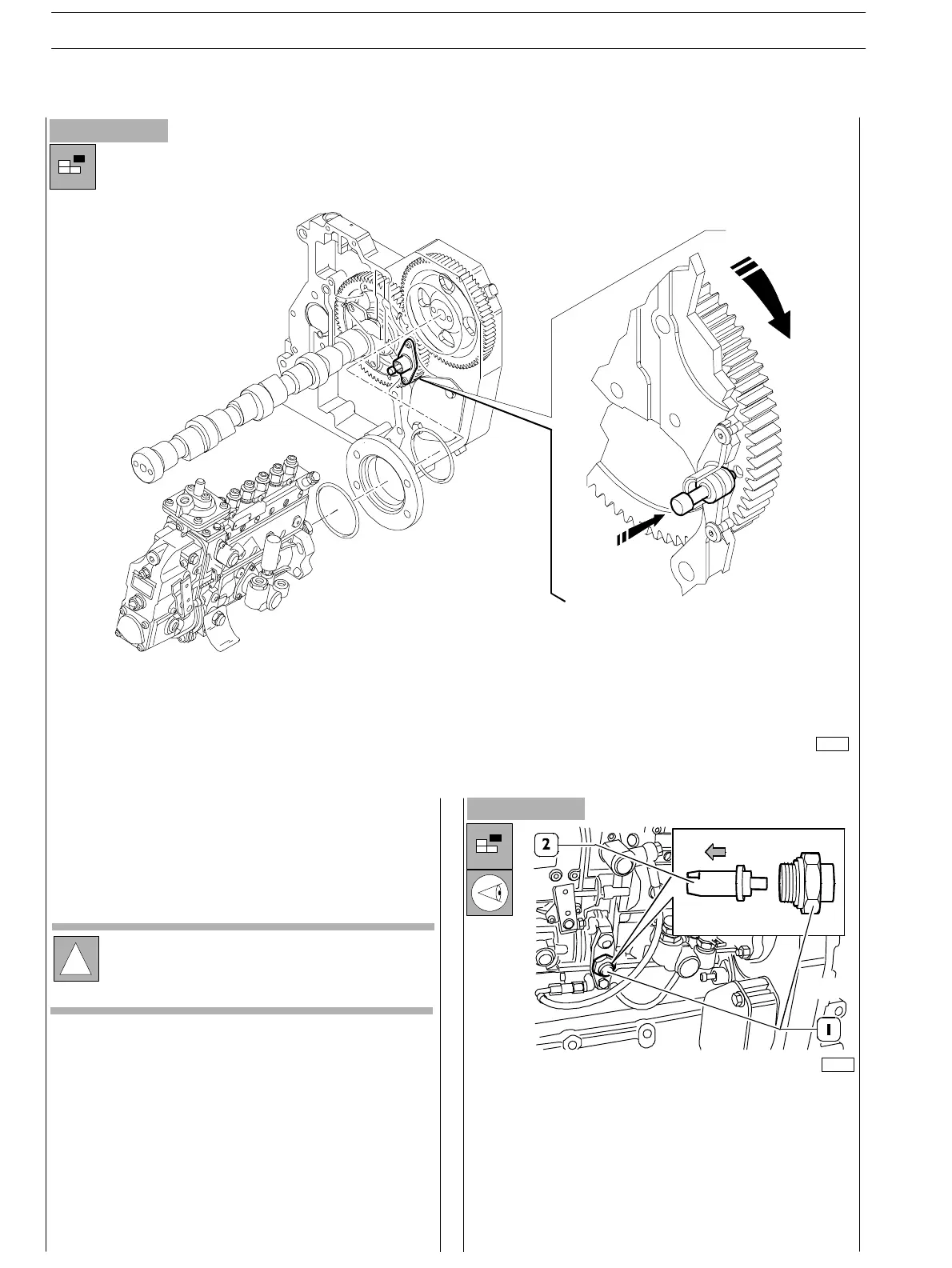

Figure 204
Figure 205
76209
- Rotate with caution the flywheel following its own
rotation sense to annul the gear slacks and at the same
time keep the (→) pin pressed until when this last one
is fitting into the port of the camshaft gear.
This way the P.M.S. shall be determined within N.6
cylin der.
!
Flywheel rotation shall be carried out with extreme
caution. The pin charged by excessive sh earing stress
may get damaged.
76135
- Plugh the previously removed pin into the gauge housing
following the direction indicated in the figure.
The pin (2) shall be pluged until end of stroke to bind the
index and lock rotation of the pump’s camshaft.
- Assemble hexagon shaped cap (1).
SECTION 3 − DUTY − INDUSTRIAL APPLICATION
66
E NG I NE S
ED. FEBUARY 2003
