Case 446 - Transmission and Travel Control

Range gears may not shift readily when selecting.
Rotate the
gears to allow them to shift.
To rotate gears:
1. move travel control lever partway into forward.
2. return travel control lever to neutral.
IMPORTANT: Range shift lever must be positioned past the neutral locating pin when
in
Low or High range. Gear damage will result if lever is not positioned
properly.
5.
TRAVEL CONTROL LEVER
TO STOP TRAVEL: Position travel control lever in neutral.
TO TRAVEL FORWARD: Slowly and in small increments move travel control lever
forward.
Speed and power
will increase as the lever is moved from the neutral position to-
ward the full forward position.
TO
TRAVEL REVERSE: Slowly and in small increments move travel control lever
rearward.
Speed and power
will increase as the lever is moved from the neutral position to-
ward the
full reverse position.
DO
NOT TRAVEL FULL SPEED IN REVERSE.
TO "RETARD" TRAVEL IN FORWARD OR REVERSE: "Retard" is the hill holding
or dynamic braking position for the travel control lever.
Position travel
control lever in "Retard" when descending a hill or incline.
See Operating Procedure Section of this manual for more complete description of
"Retard" usage.
Depress the travel control lever slightly when moving to either direction for smoother
motion and control.
N
E
LJ
~

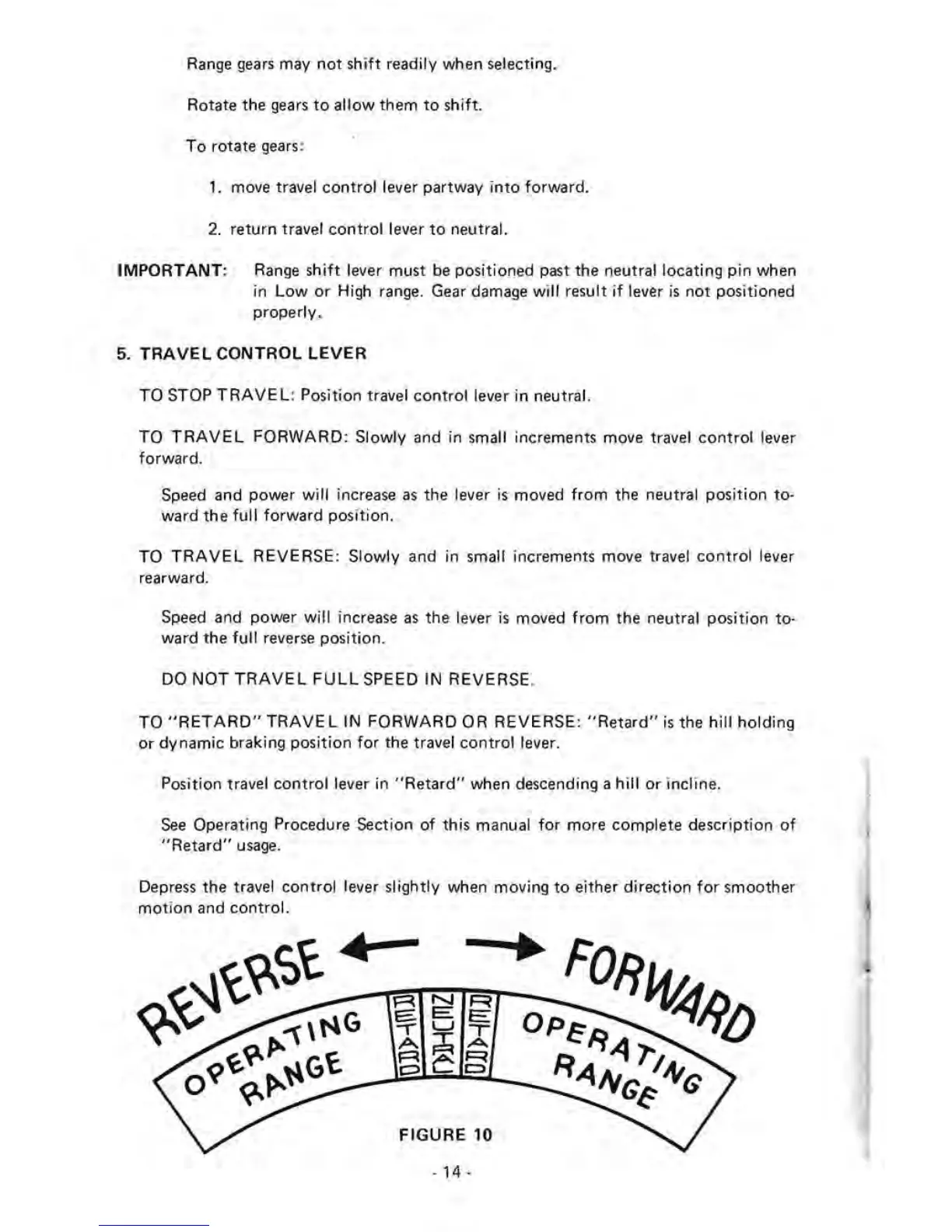

FIGURE 10
- 14 -
