Case 446 - Attachment Controls

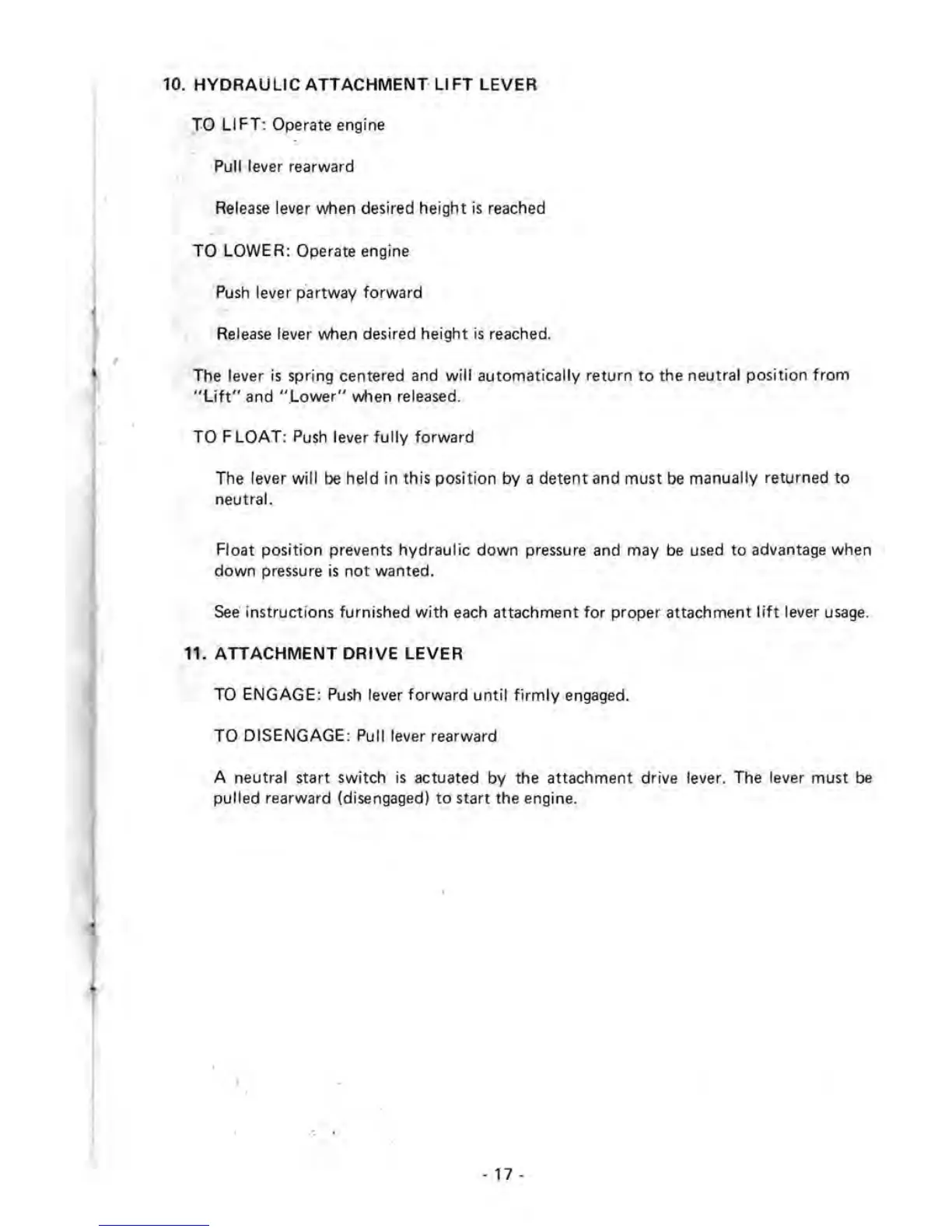

10. HYDRAULIC ATTACHMENT LI FT LEVER
T0 LIFT: Operate engine
Pull lever rearward
Release lever when desired height is reached
TO LOWER: Operate engine
'Push lever p' artway forward
Release lever when desired height is reached.
The lever is spring centered and will automatically return to the neutral position from
"lift" and "Lower" when released.
TO FLOAT : Push lever fully forward
The lever will be held in this position by a detent and must be manually returned to
neutral.
Float position prevents hydraulic down pressure and may be used to advantage when
down pressure is not wanted.
See instructions furnished with each attachment for proper attachment lift lever usage.
11.
ATTACHMENT DRIVE LEVER
TO ENGAGE: Push lever forward until firmly engaged.
TO DISENGAGE: Pull lever rearward
A neutral start switch is actuated by the attachment drive lever. The lever must be
pulled rearward (disengaged) to start the engine.
- 17 -
