Case 446 - Brake, Parking Lock, and Lights

7. PARKING BRAKE LOCK
TO SET: Depr!lss brake pedal fully.
Push
down on the parking brake lock so one of the notches engages with the bot·
tom of the slot.
TO RE LEASE: Depress brake pedal slightly and release.
A spring will disengage
the parking brake lock.
8. HEADLIGHTS
TO LIGHT: Turn key to the "LIGHTS" position after engine is started.
Using lights with engine off or at low idle will result in a discharged battery.
TO EXTINGUISH: Turn key from the "LlGHTS" position.

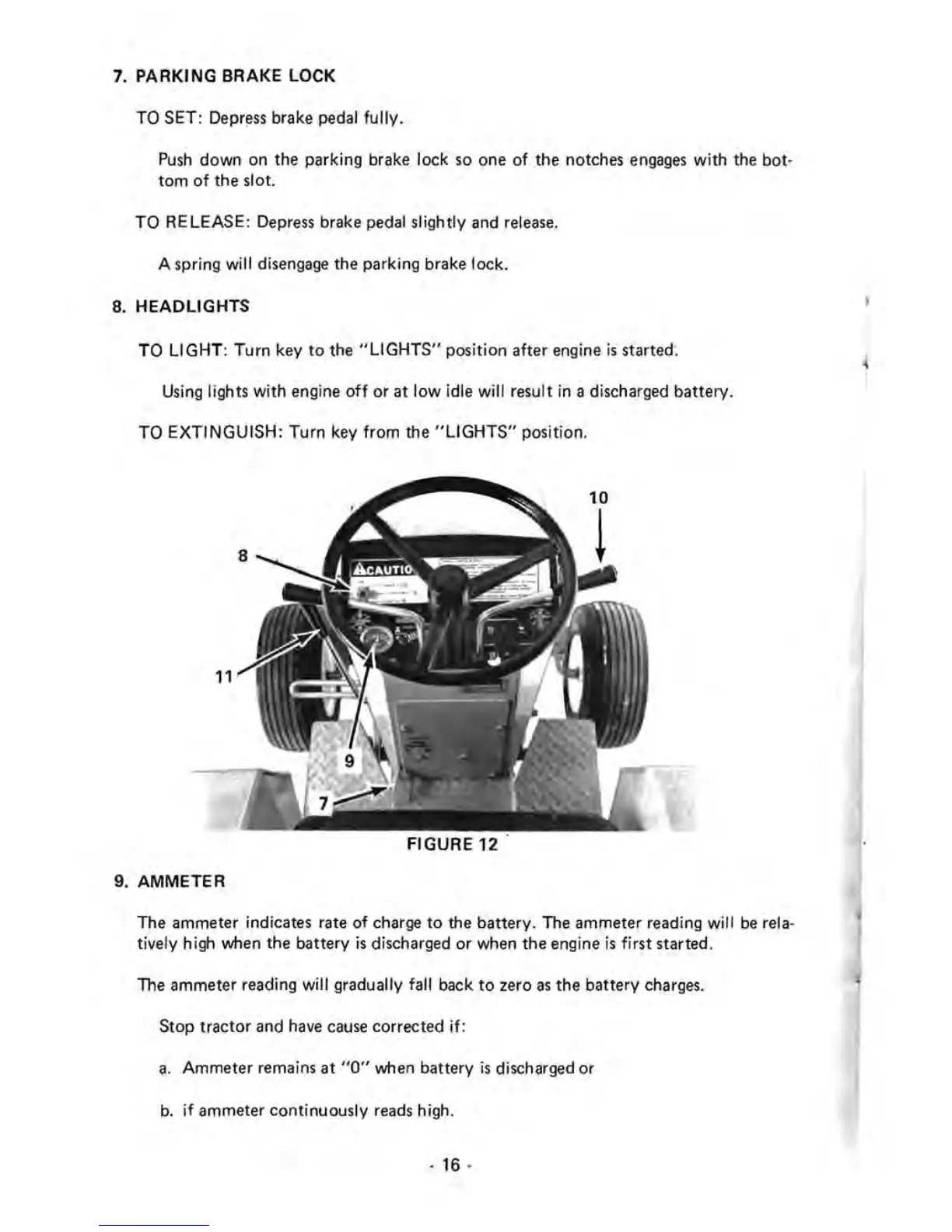

FIGURE 12
9. AMMETER
The ammeter indicates rate of charge to the battery. The ammeter reading will be rela-
tively high when
the battery is discharged or when the engine is first started.
The ammeter reading will gradually fall back to zero as the battery charges.
Stop tractor and have cause corrected if:
a. Ammeter remains at "0" when battery is discharged or
b. if ammeter continuously reads high.
- 16 -
