INTRODUCTION

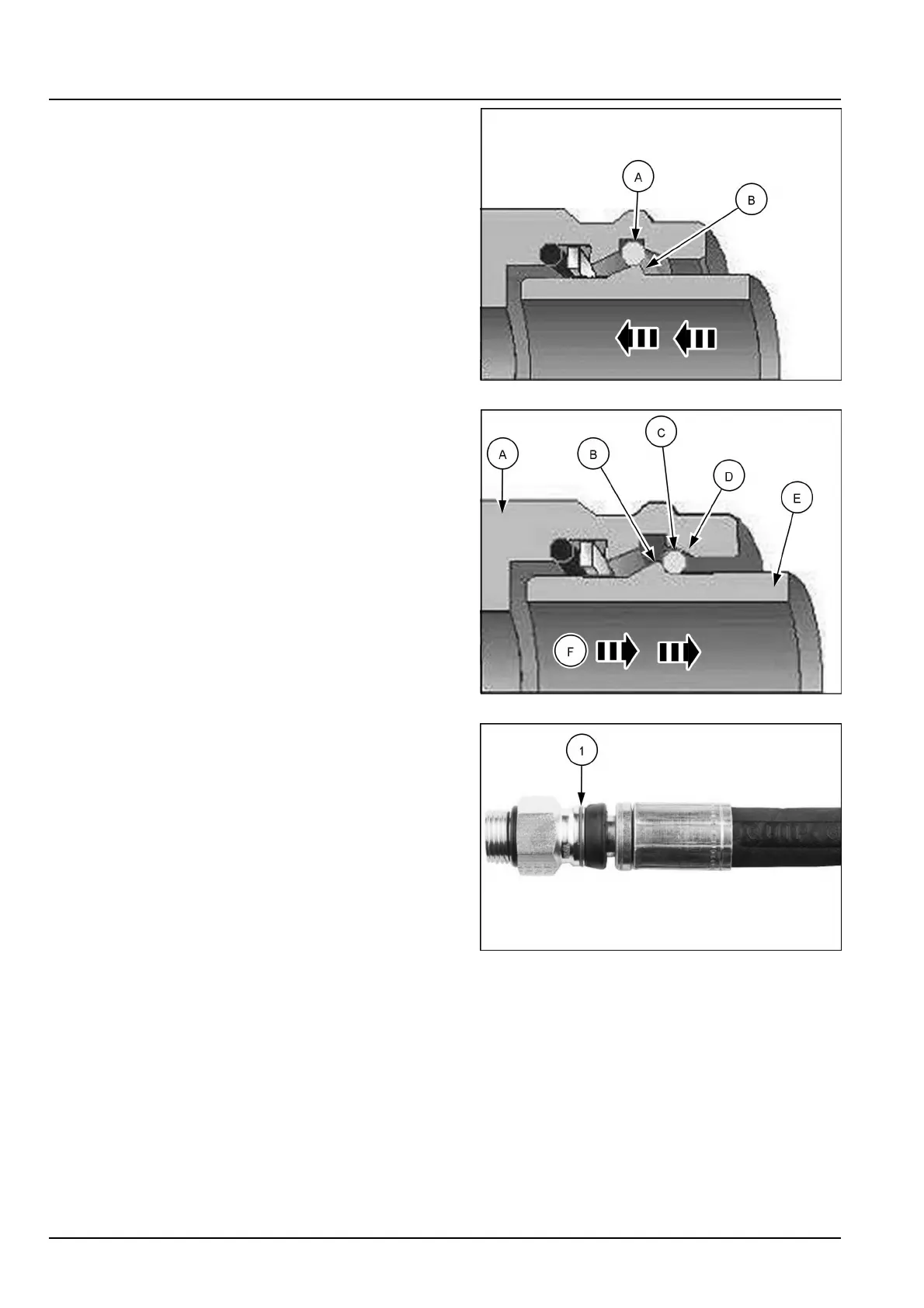

Whenthelatchring(A)isinitsopenposition,themale
shoulder(B)canslidepastthelatchring(A).
RAIL17TLB0019AA4
Themale(E)andfemale(A)connectorsarelockedinto
place.Asuidpressure(F)isapplied,thelatchring(C)
iswedgedbetweenthemaleshoulder(B)andthefemale
angle(D).
RAIL17TLB0018AA5
ConnectionofSTC®connectors
•
Donotusetherubbersleeveasleveragetopushthe
malehalfintothefemalehalfoftheSTC®connection.
•
Donotholdsleeveduringassembly.
•
Iftheredindicationring(1)isvisibleaftertheconnection
attemptrepeattheconnectionprocedure.
RAIL17TLB0021AA6
