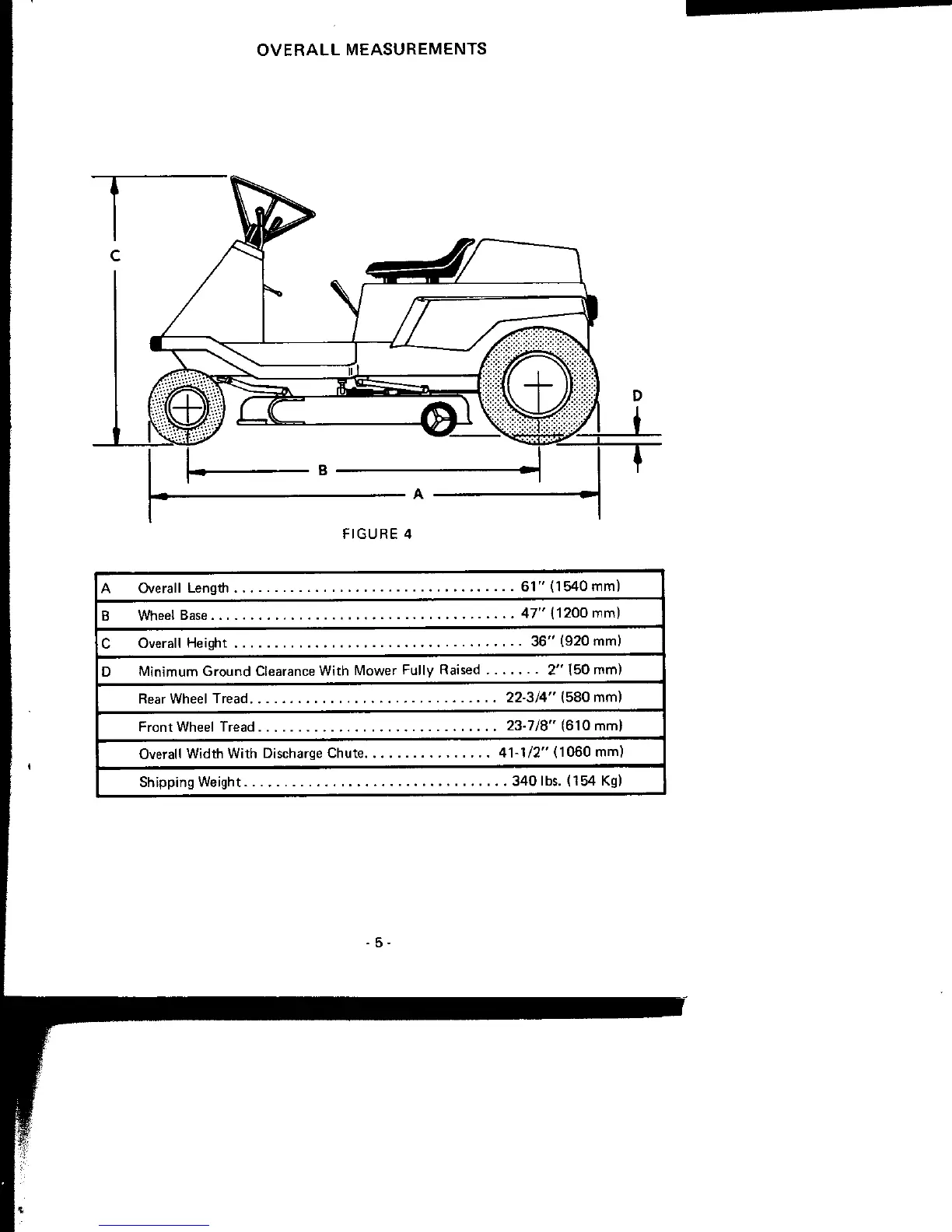

OVERALL
MEASUREMENTS
C
FIGURE 4
A Overall Length 61" (1540 mm)
B Wheel Base 47" {1200mm)
C Overall Height 36" (920 mm)
D Minimum Ground Clearance With Mower Fully Raised 2" (50 mm)
Rear WheelTread 22-3/4" (580 mm)
Front Wheel Tread 23-7/8" (610 mm)
Overall Width With Discharge Chute 41-1/2" (1060 mm)
Shipping Weight 340lbs. (154 Kg)
