MOWER DRIVE BELT SERVICE
1. Place mower height selection in lowest position.
2. Approach mower from left side.
3. Place the mower drive lever in the OFF position. Slip belt off left side of mower drive
pulley.
4. Place the mower drive lever in the ON position (this lifts belt-brake away from belt).
Remove belt from right side of mower drive pulley.
5. Remove belt from engine pulley.
6. Reverse the above procedure for installation.
A
CAUTION: Move attachment drive clutch lever in OFF position,
shut off engine, allow engine to cool, remove key and spark plug
wire before making adjustments to or servicing the Riding Lawn
Mower.

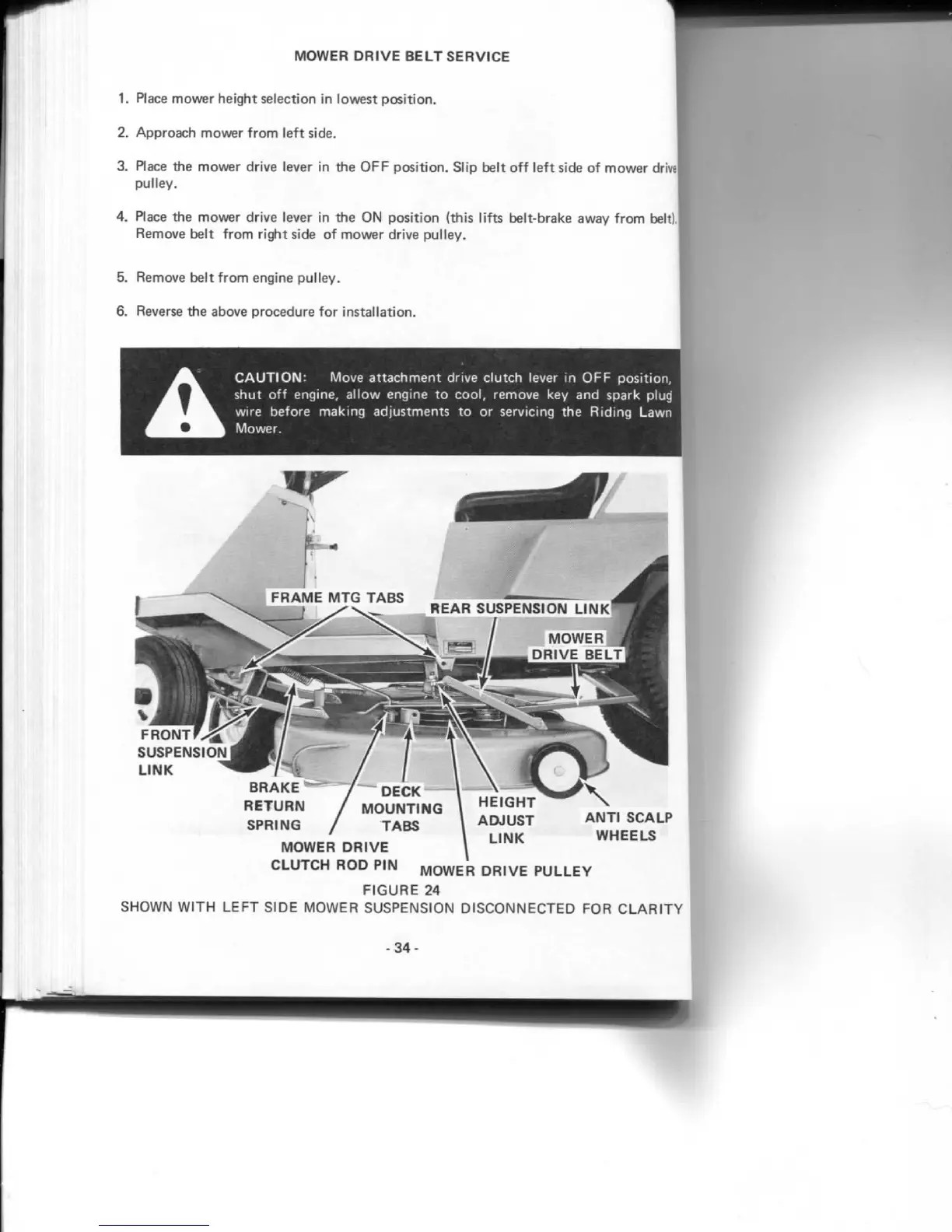

FIGURE 24
SHOWN WITH LEFT SIDE MOWER SUSPENSION DISCONNECTED FOR CLARITY
-34-
