TRACTION DRIVE MAINTENANCE

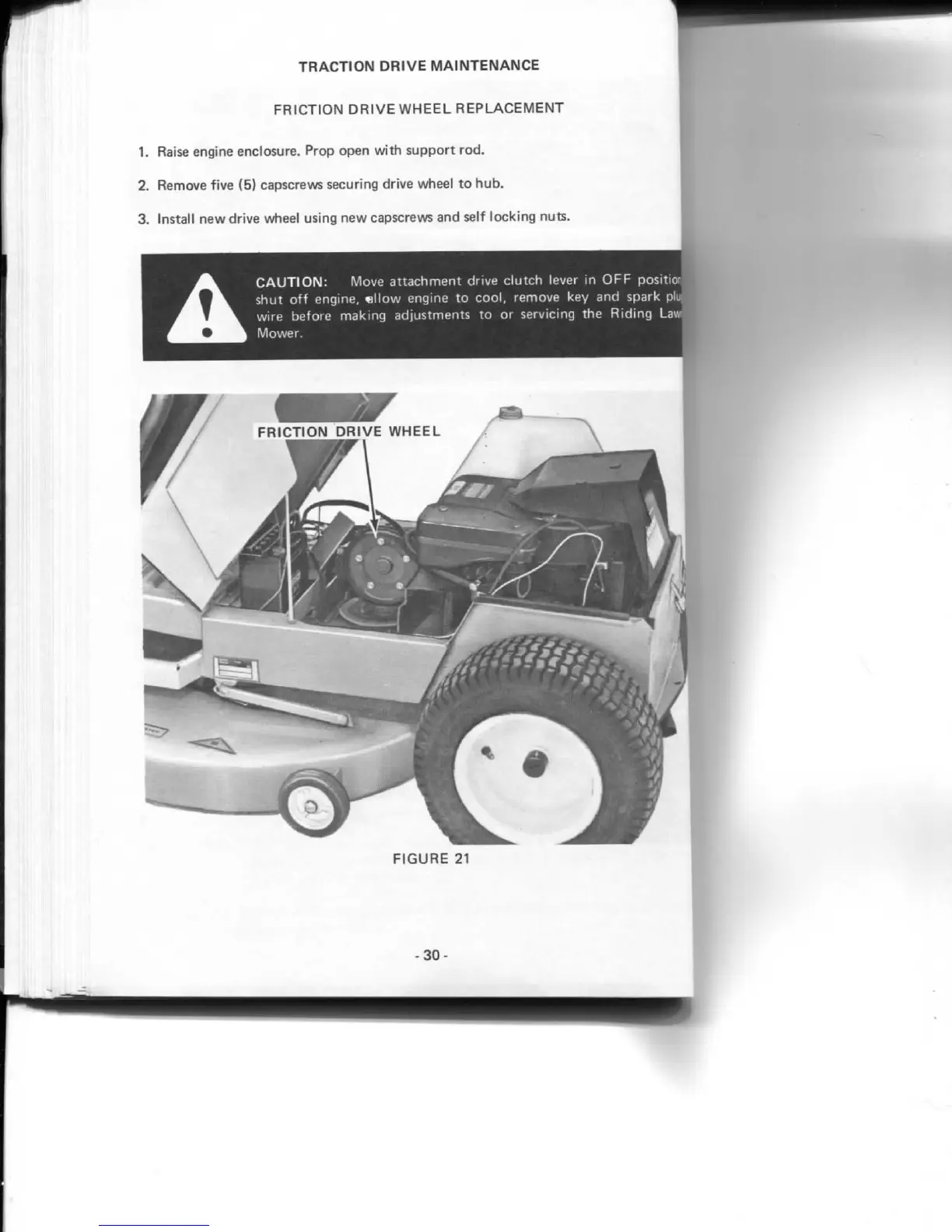

FRICTION DRIVE WHEEL REPLACEMENT
1. Raise engine enclosure. Prop open with support rod.
2. Remove five (5) capscrews securing drive wheel to hub.
3. Install new drive wheel using new capscrews and self locking nuts.
A
I
CAUTION: Move attachment drive clutch lever in OFF positior •
shut off engine, «llow engine to cool, remove key and spark plu;
wire before making adjustments to or servicing the Riding Law
Mower. ;
-30-
