A
CAUTION:
Be sure gasoline is thoroughly drained and battery re-
moved as described in the "Storage" section of this manual before
standing mower on end for storage or service.
2.
Be sure to REMOVE BATTERY before lifting. Tipping the battery on end will cause
minute particles of sediment from the bottom of the battery to lodge between the cell
plates and consequently ruin the battery. Warranty will not be allowed on this type of
failure.
3. Care should be used when lifting the unit to avoid strain and physical injury. Be sure
the unit is standing securely before working on it.
4.
Reach under and lift by the front frame area and NOT THE FRONT RUBBER BUM-
PER.
5. Attach a cord or chain between the upper part of the Lawn Mower Chasis and the wall
or ceiling. This will prevent the unit from falling if it is accidentally pushed or
bumped.
I \

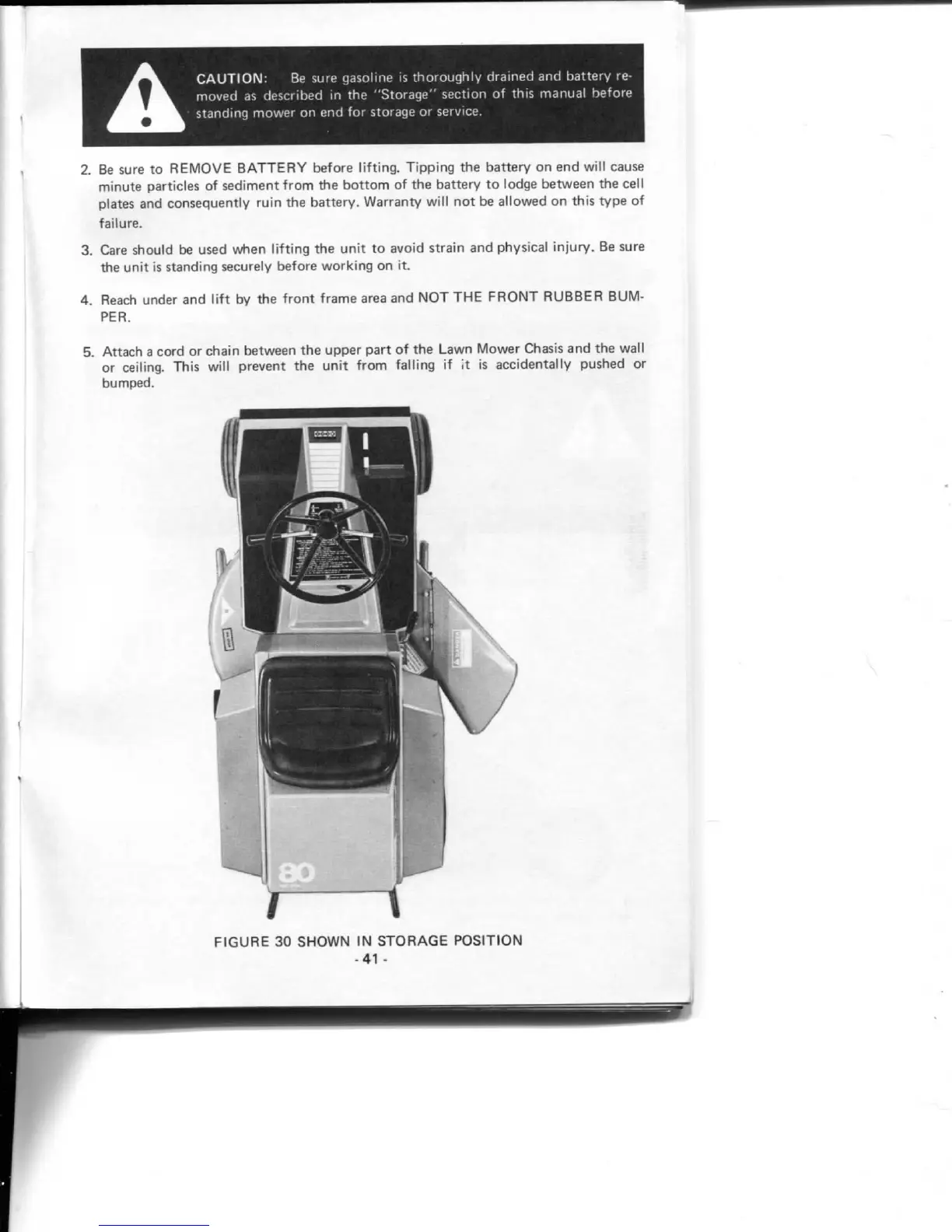

FIGURE 30 SHOWN IN STORAGE POSITION
-41 -
