INTRODUCTION

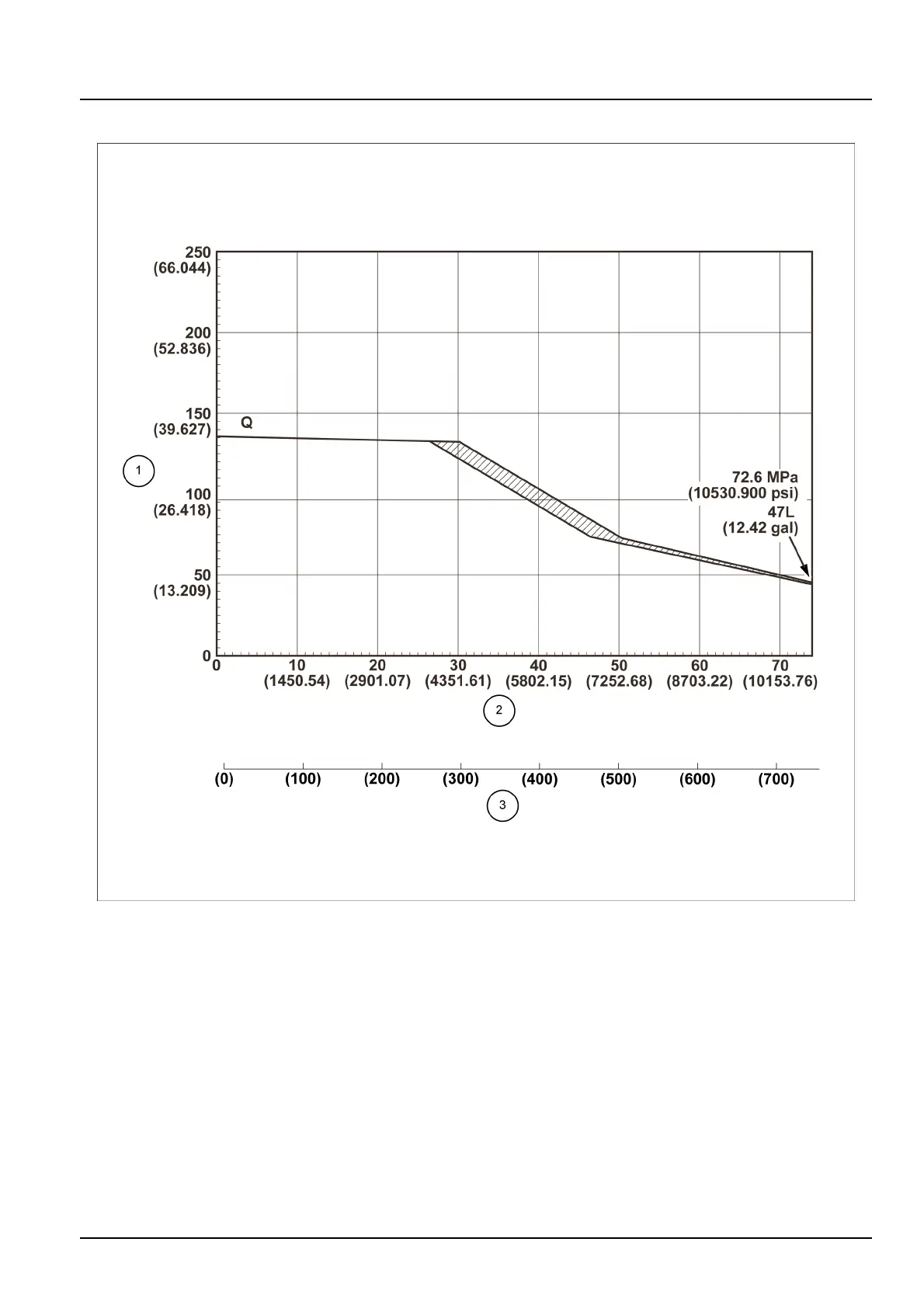

PumpP-QDiagram
SMIL15CEX6821GB1
(1)DischargeowQ[L/min(gpm)]
(2)DischargepressurePd[MPa(psi)]
(3)DischargepressurePd[kgf/cm2]
4799619620/05/2016
33
