Case CX160D - General Specification

INTRODUCTION

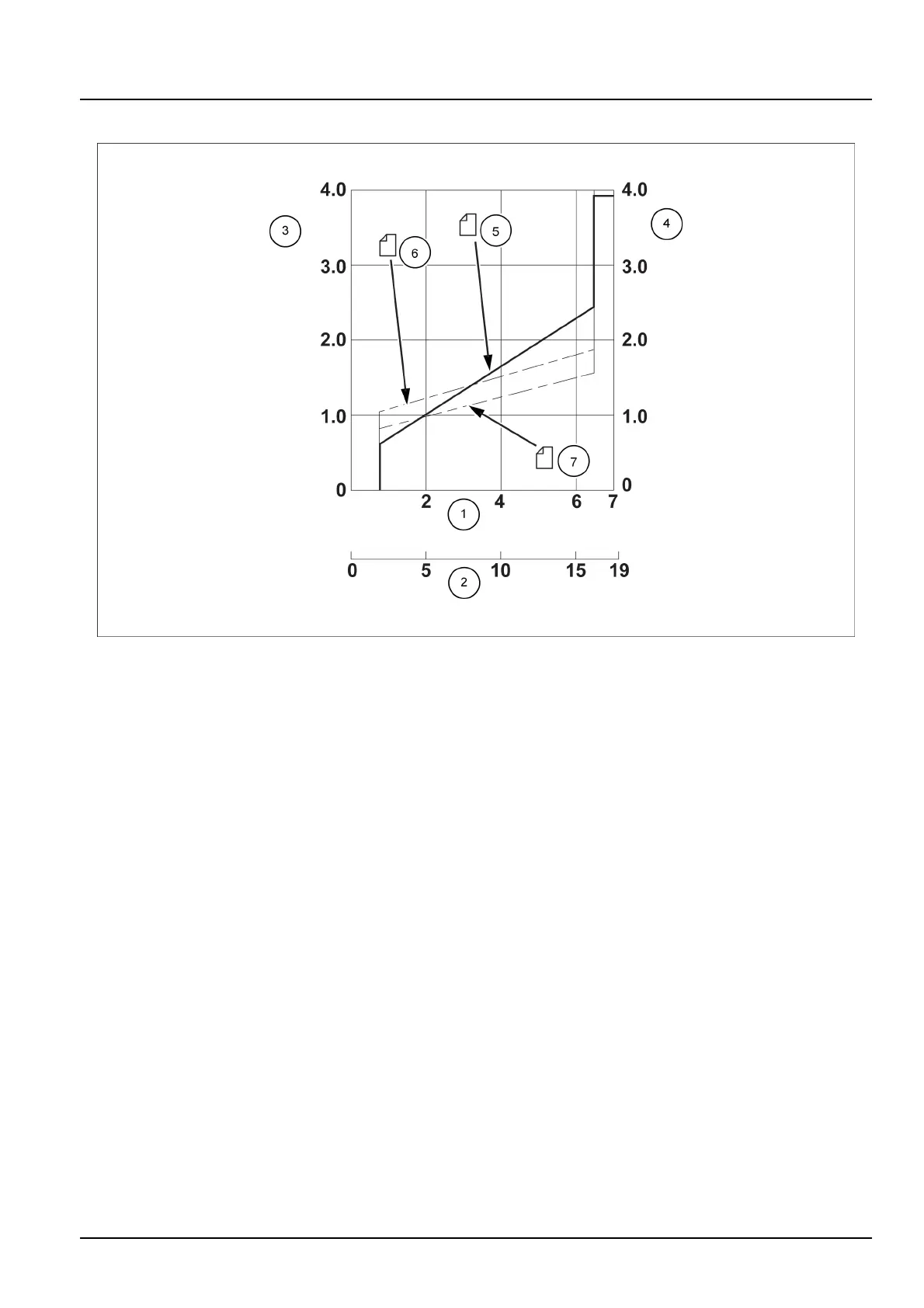

Operationremotecontrolvalvecontroldiagram
SMIL15CEX4380FB2
Ports1,3
1
Pushrodstroke[mm(in)]
5
Secondarypressure
2
Operatingangle[deg.]
6
Independentoperatingtorque(Port1)
3
Secondarypressure[MPa]
7
Independentoperatingtorque(Port3)
4
Operatingtorque[Nm]
4799619620/05/2016
35
