INTRODUCTION

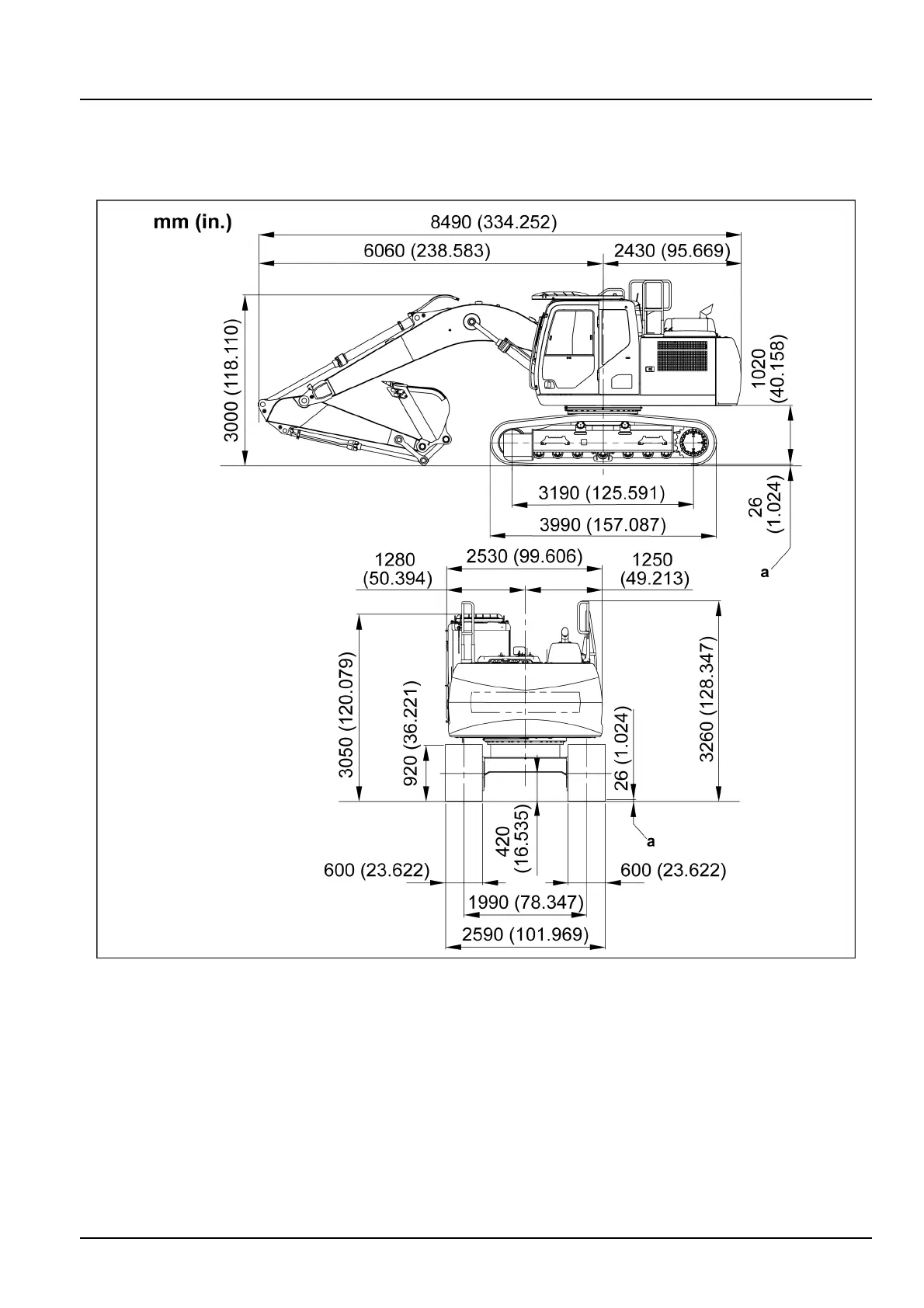

Shortarm[2.23m(7.316ft)]
NOTE:Numbersaresubjecttochangewithoutnoticeduetodesignchangeorotherreason.
NOTE:Thediagramgivesvaluesthatincludetheshoelugheight“a”[26mm(1.024in)].
SMIL15CEXY717GA2
4799619620/05/2016
59
