INTRODUCTION

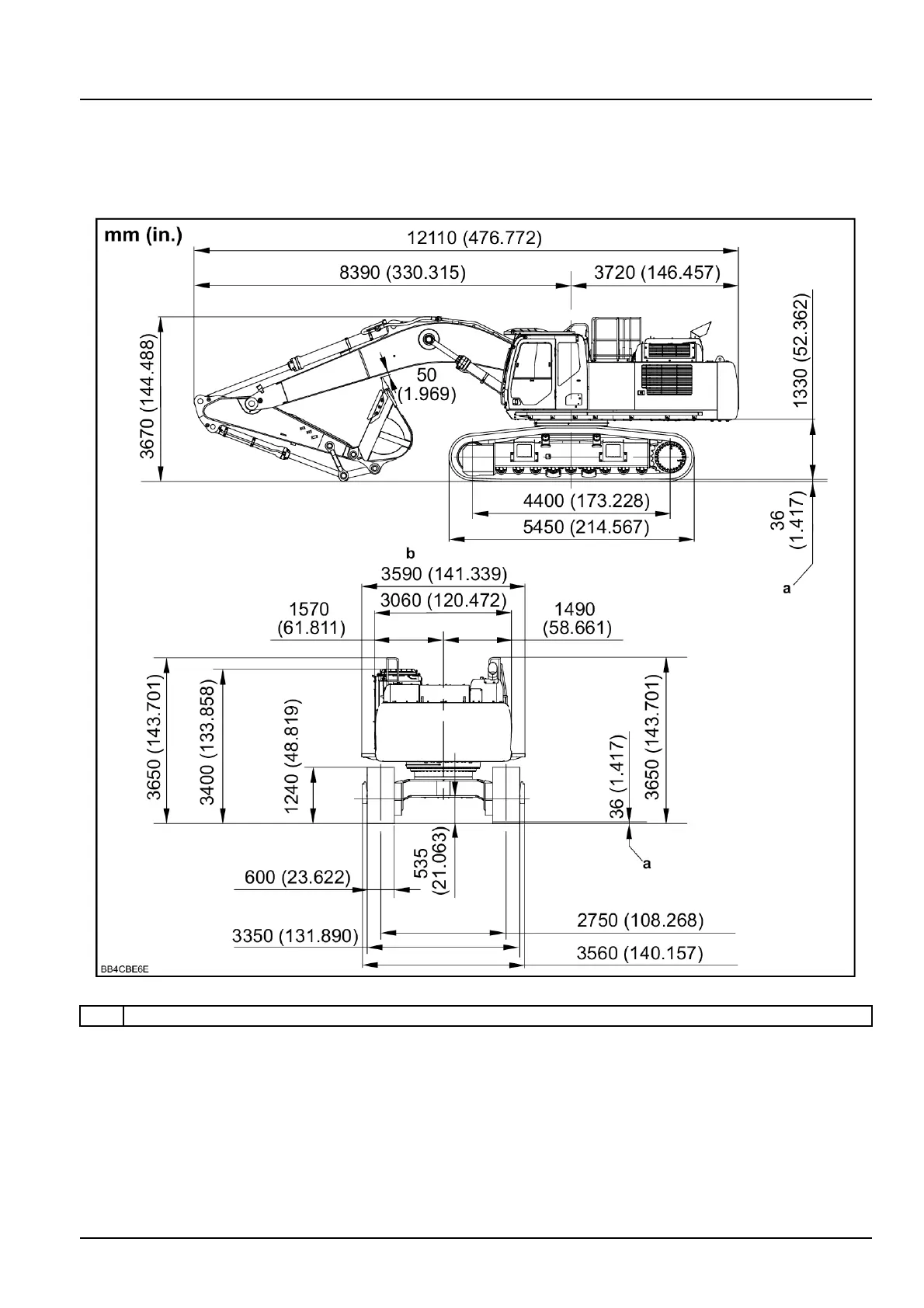

Shortarm[2.53m(8.30ft)]
NOTE:Thevaluesusedinthisdocumentaresubjecttochangewithoutnoticeduetoadesignchangeorotherrea-
sons.
NOTE:Thevaluesindicatedinthediagramincludetheshoelugheight(a)[36mm(1.417in)].
BB4CBE6E2
(b)Withcatwalk-option
4793781129/02/2016
