INTRODUCTION

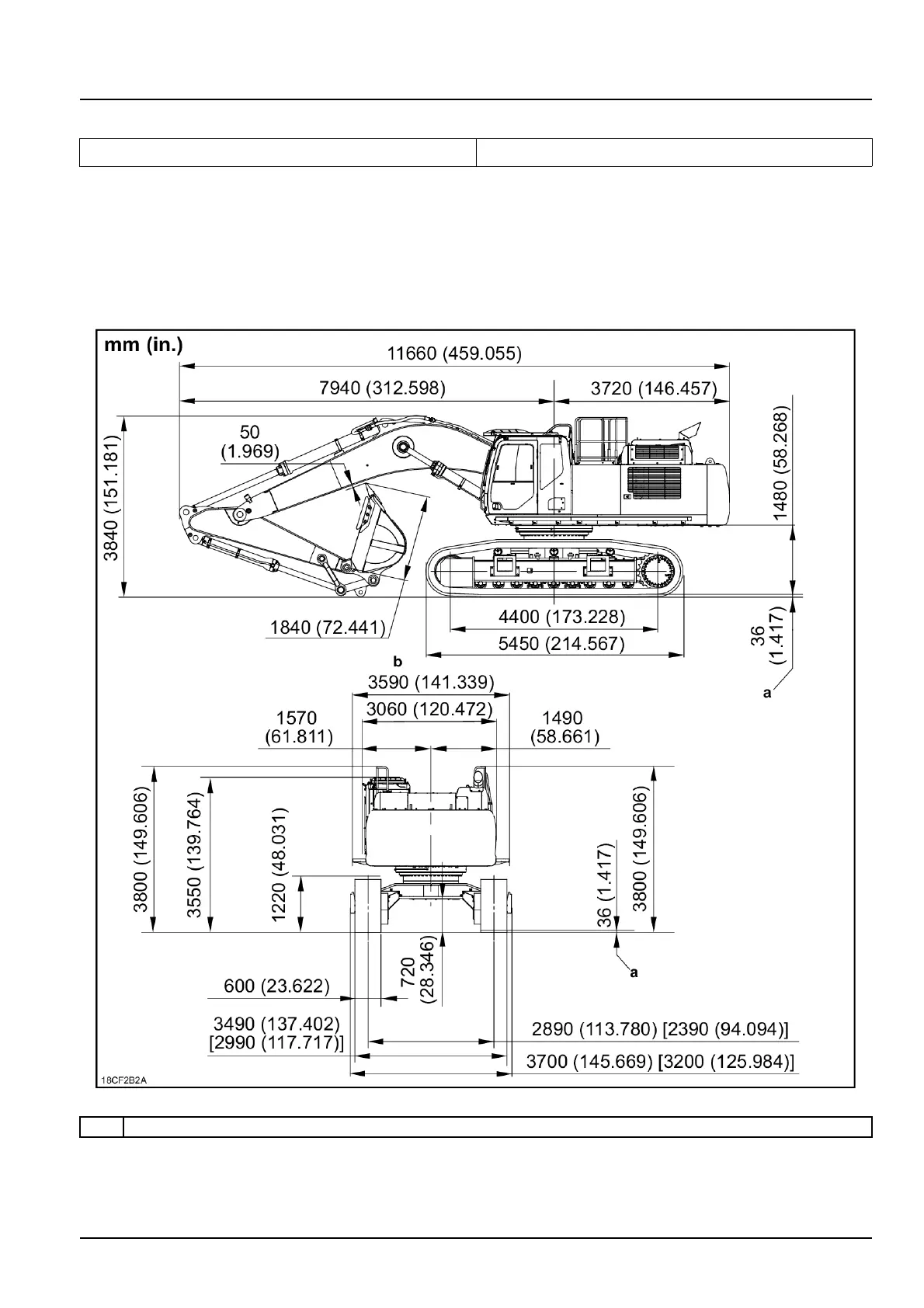

Dimension

CX500DCrawlerexcavatorsRTCMassexcavatorversion(TIER4FINAL)

-EUMarket

ShortArm[2.53m(8.30ft)]

NOTE:Thevaluesusedinthisdocumentaresubjecttochangewithoutnoticeduetoadesignchangeorotherrea-

sons.

NOTE:Thevaluesindicatedinthediagramincludetheshoelugheight(a)[36mm(1.417in)].

NOTE:Thedimensionbetweenbrackets[]indicatestheminimumdimensionfortransport.

18CF2B2A1

(b)Withcatwalk-option

4793781129/02/2016
