― 52 ―

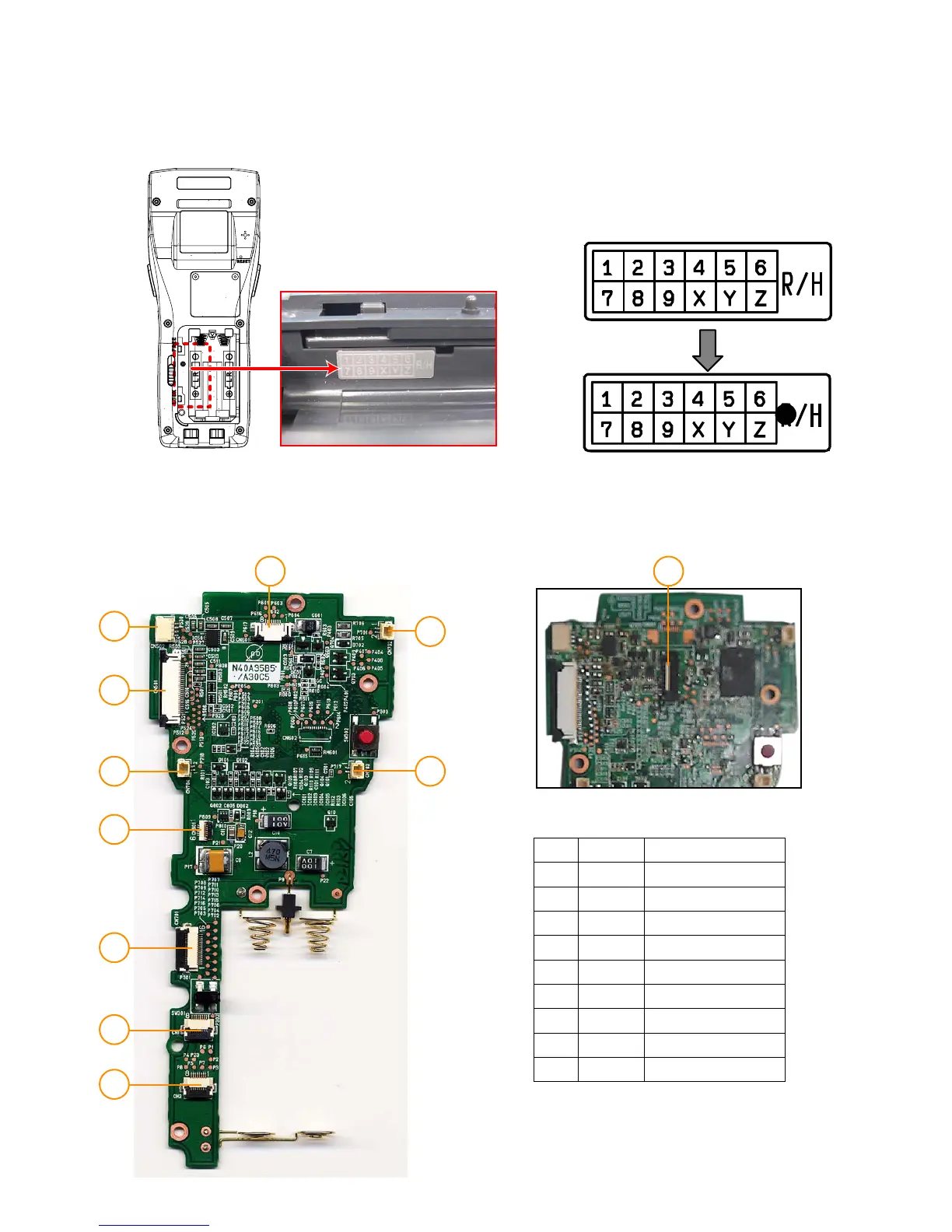

Notes on DT-930
To distinguish the new VA type from the initial type by viewing the revision label, draw a black dot over [R]
of the [R/H] in the revision label.
6.2 MAIN PCB CONNECTOR INFORMATION
7
4
3
9
10
6
1
2
5 5
8
1 CN1 to IO ASSY
2 CN2 to IO ASSY
3 CN501 to LCD module
4 CN502 to LCD backlight
5 CN601 to Laser Scanner
6 CN701 to Key PCB
7 CN702 to Buzzer
8 CN703 to Trigger Key
9 CN704 to Trigger Key
10 CN801 to SUB PCB
< PY050-MAINH-ASSY/PY050D1-MAIN-ASSY > < PY050D2-MAIN-ASSY >
