B-1. Remove the CHASSIS/HNG.
Reference Procedure: A-1 to A-4

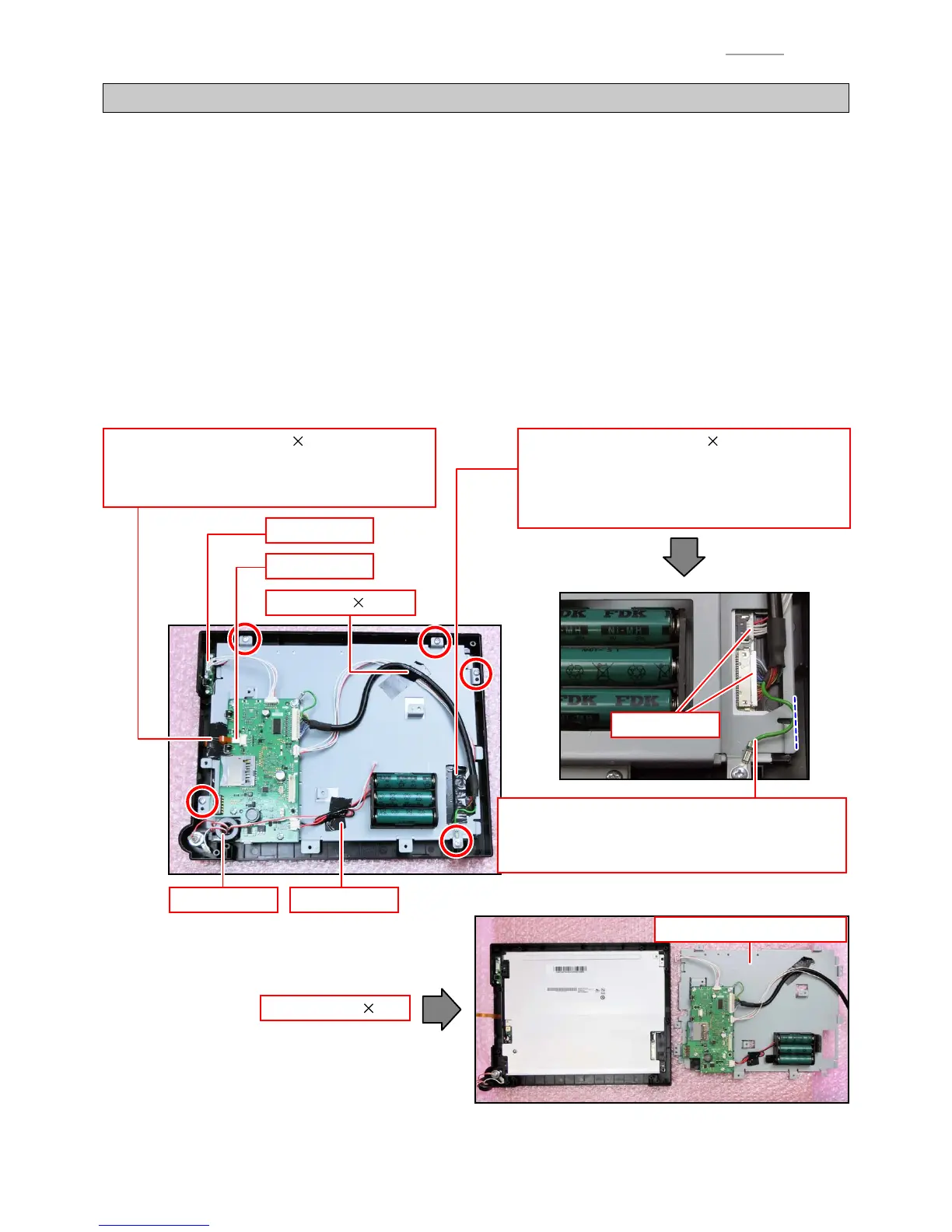

B-2. Remove the CHASSIS/LCD.
(1) Peel off tape (3 pcs.).
(2) Unlock the connector lock and disconnect the FPC.
(3) Disconnect three connectors.
(4) Peel off the tape that is fi xing the lead wires from the Dallas key.
(5) Remove the Dallas key’s ferrite core that is fi xed with double-sided tape.
(6) Undo fi ve screws.
(7) Remove the CHASSIS/LCD block.
(6) Screw (S4) 5
(1) Tape (
15 50)
NOTE: There is a connector under the tape. Peel
off the tape without giving a load to the
connector.
(3) Connector
(1) Tape (
15 30)
NOTE: Peel off the tape without giving a load to
the FPC.
(7) CHASSIS/LCD
block
(3) Connector
(2) FPC
(1)
Tape (
15 50)
(4) Tape(5) Ferrite core
Note on reassembling
Ground wire
When attaching the ground wire, make sure that the
wire does not protrude from the CHASSIS/LCD.
