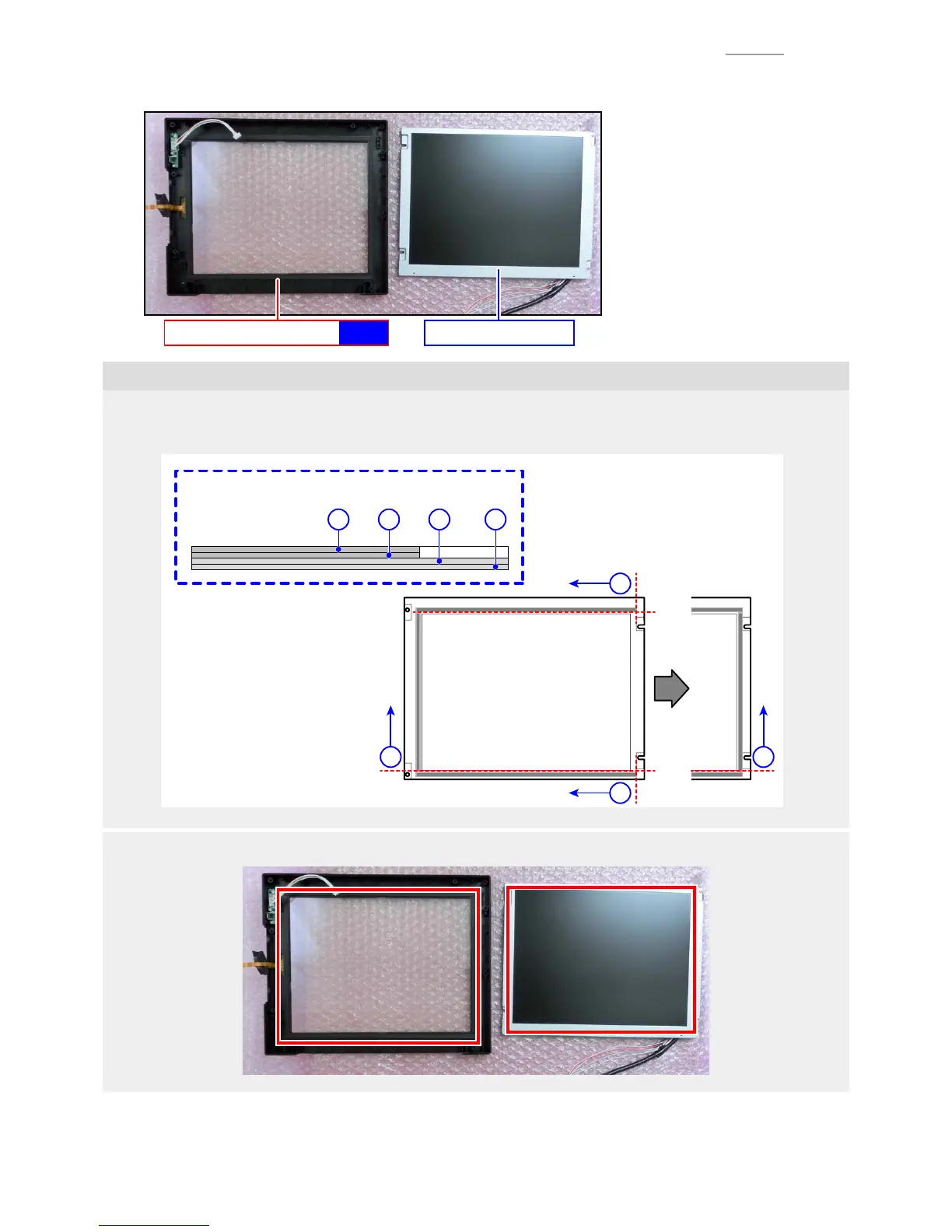

B-3. Remove the LCD unit (LCD UNIT).
CASE ASSY/FRONT

H-3
LCD UNIT
Note on reassembling
0
Attach the four cushions to the new LCD UNIT.
NOTE: Attach them in the order indicated by the numbers below.
1
2
3 4
CUSHION/LCD
1234
0
Make sure that no dirt or dust is on the touch panel surface and LCD surface.
B-4. Assemble the parts in the reverse order of the disassembly procedure.
