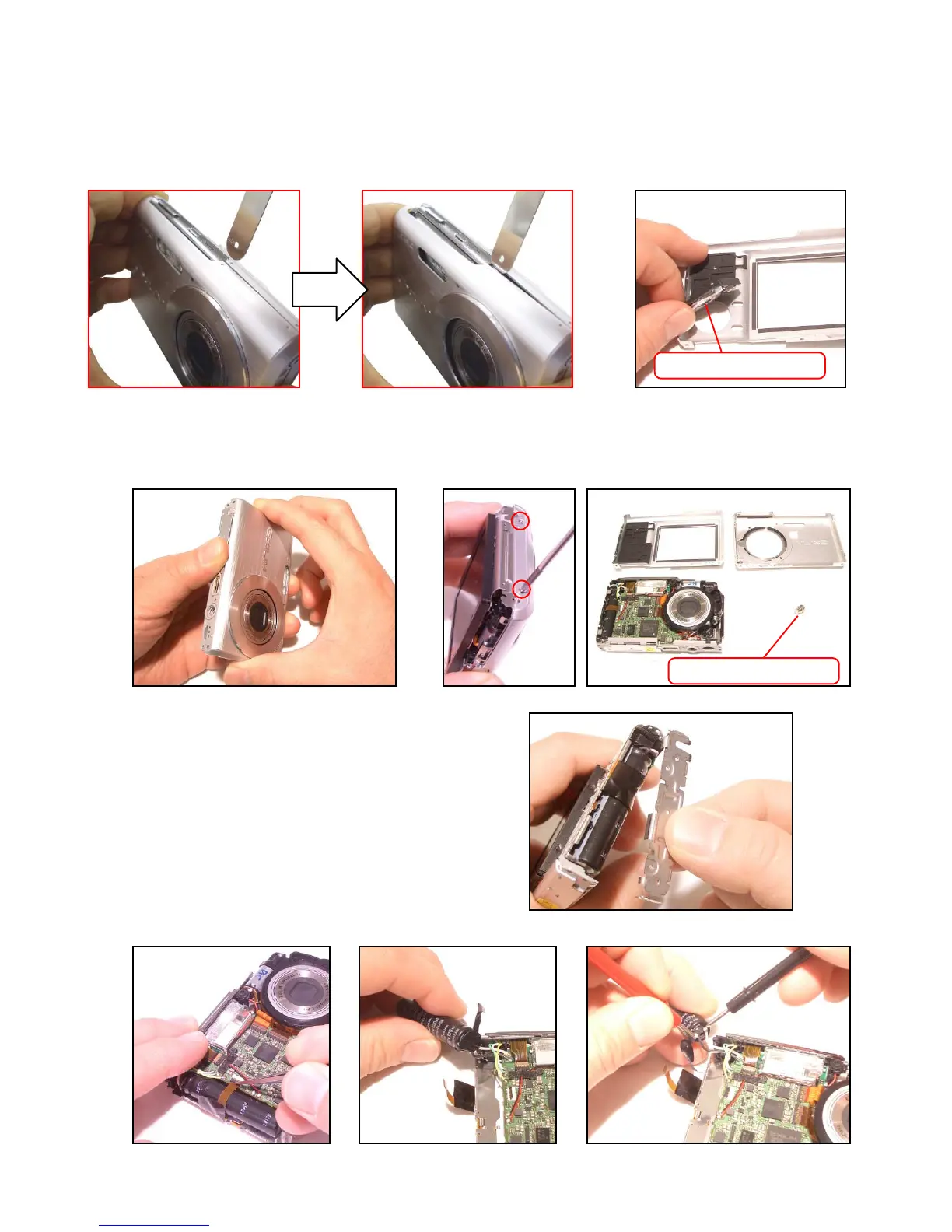

4. Removing the rear case assy.
Strap
5. Removing the front case assy.
Point: The front case assy can be removed easily by loosing the screws.
Note: Do not lose the strap.
6. Removing the bracket.
Note: Discharge the strobe condenser.
6-1. Remove the connector.
6-2. Remove the strobe condenser.
6-3. Discharge.
(1) Slide a 0.1mm width metal
plate into the gap between the
front case and the rear case.
The keypad is fixed by double-
sided tape.
(2) Remove the rear case with
sightly pressing the dowel.
Keypad
