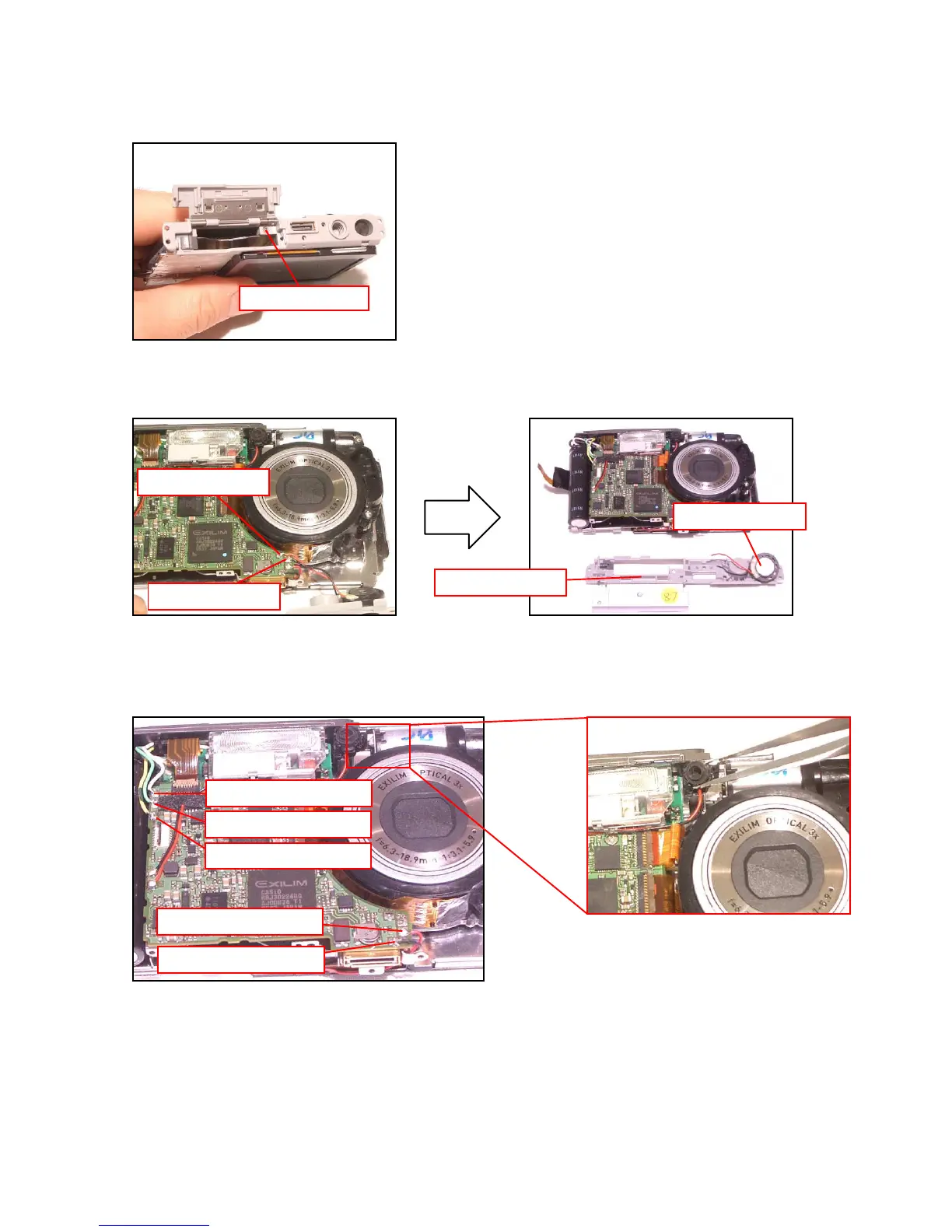

■ Removing the battery case
7. Remove one screw.
8. Unsolder two lead wires.
The speaker is fixed by double-sided tape.
lead wire (red)
Speaker
Battery case
lead wire (black)
lead wire (yellow)
lead wire (green)
lead wire (while)
lead wire (red)
lead wire (black)
Screws (S4)
■ Removing the main PCB
9. Unsolder five lead wires.
10. Remove the microphone.
