The numbers in parentheses indicate the pages where each item is explained.
. Camera
.
Charger Unit

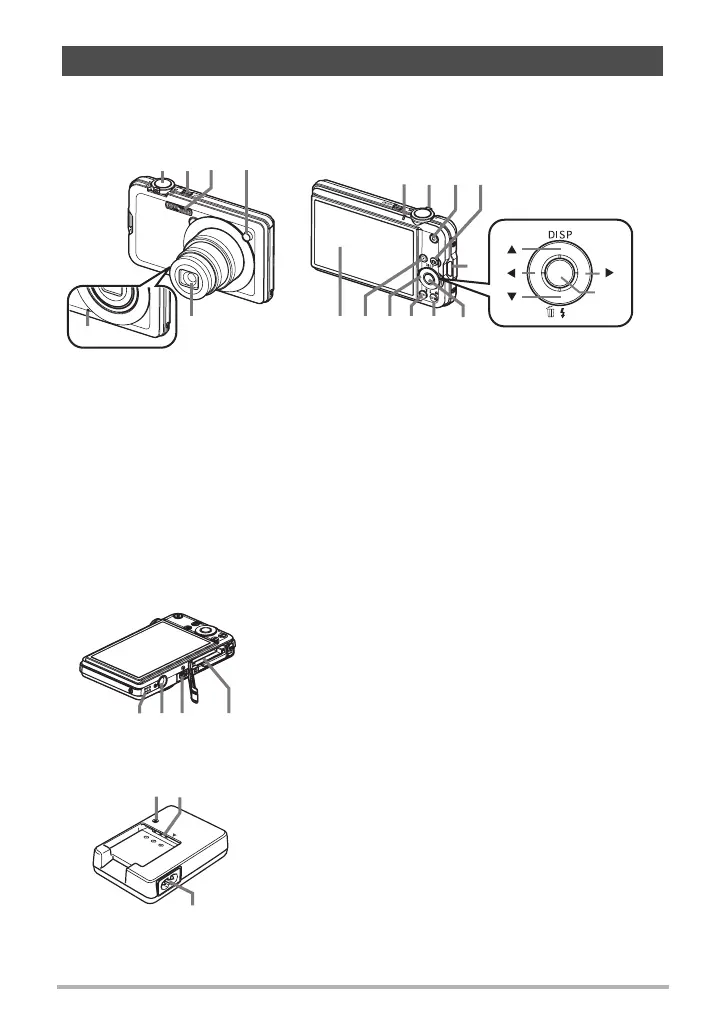

General Guide
1
Shutter button (page 16)
2
[ON/OFF] (Power)
(page 22)
3
Flash (page 26)
4
Front lamp
(pages 18, 61, 63)
5
Lens
6
Microphone
(pages 45, 89)
7
Back lamp
(pages 16, 22, 26)
8
Zoom controller
(pages 16, 42, 73, 74)
9
[0] (movie) button
(page 45)
bk
[r] (REC) button
(pages 16, 22)
bl
Strap hole (page 2)
bm
[SET] button (page 23)
bn
[BS] (^) button
(page 50)
bo
[MENU] button
(page 56)
bp
Control Button
([8][2][4][6])
(page 23)
bq
[p] (PLAY) button
(pages 19, 22)
br
Monitor screen
(pages 133, 150)
5
3
4
21
6
89bk7
bl
bnbobpbqbr bm
[ ]
[ ]
[ ]
[ ]
[
SET
]
Front Back
bs
Battery/memory card slots (pages 12, 14, 144, 146)
bt
USB/AV port (pages 75, 93, 101, 110)
ck
Tripod hole
Use this hole when attaching to a tripod.
cl
Speaker
bsckcl bt
Bottom
3
2
1
1
[CHARGE] Lamp
2
+- Contacts
3
AC jack
To Next Page
