APPENDIX
APPENDIX
The numbers in parentheses indicate the pages where each part
is explained.

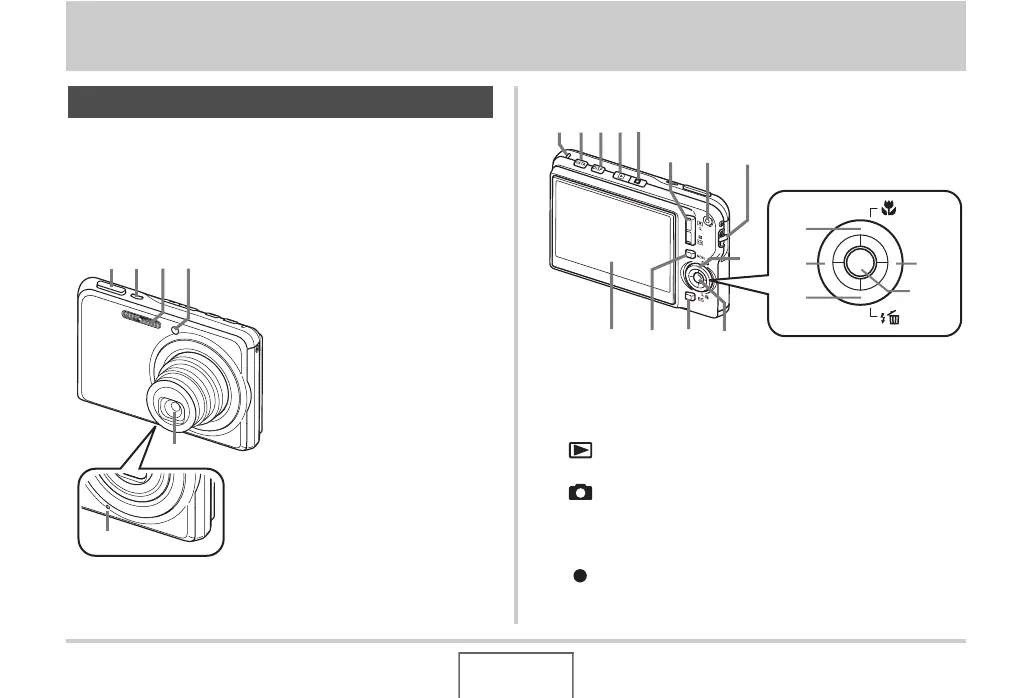

■ Camera
Front
Back
General Guide
1
Shutter (page 65)
2
[ON/OFF] (Power)
(page 43)
3
Flash (page 76)
4
AF Assist/Self-timer Lamp
(pages 63, 70, 81, 272)
5
Lens
6
Microphone
(pages 91, 175)
5
3
4
21
6
7
Operation Lamp
(pages 43, 65, 272)
8
[DATA] Button (page 258)
9
[DISP] Button (page 53)
bk
[ ] (PLAY) Button
(pages 43, 197)
bl
[ ] (REC) Button
(pages 43, 197)
bm
Zoom Button
(pages 72, 154, 155)
bn
[ ](Movie) Button
(page 89)
bo
Strap Hole (page 2)
bp
Control Button
([S], [T], [W], [X])
bq
[SET] Button
br
[BS] Button (page 98)
bs
[MENU] Button (page 52)
bt
Monitor Screen (page 53)
bp
897
brbsbt bq
bkbl
bm bobn
[S]
[W]
[T]
[X]
[SET]
