E-34
Using the Printer
When Using Formed Sheet Paper

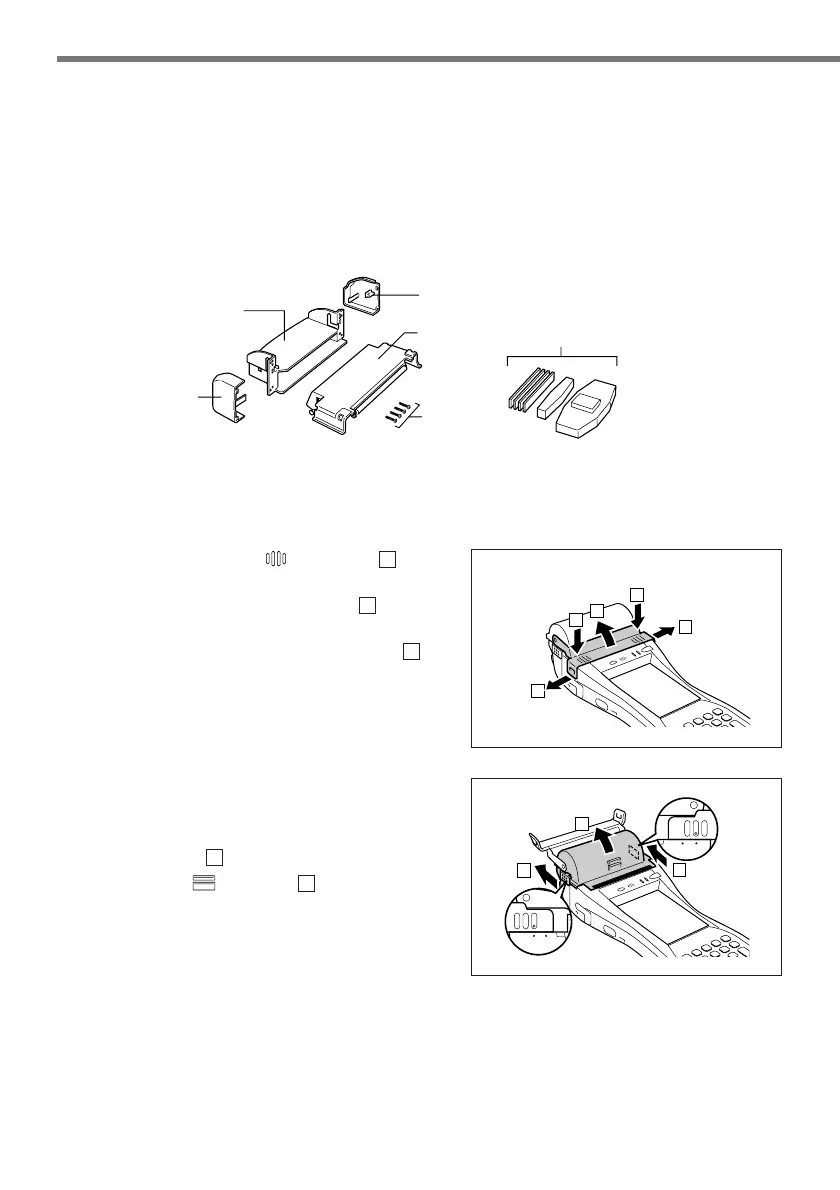

Attaching the Paper Holder
Attach the separately sold Paper Holder (HA-B93PH)* when printing on formed sheet
paper. The Paper Holder is composed of four parts and four screws.
In addition, a PC card cushion is enclosed to prevent the PC card from being dislodged
by an impact and so forth. Use this card as necessary.
1. Check that the power is off. If the power is on, always make sure to turn it off by
pressing the power key.
2. Press the ridged (
) portions ( ) of
the splash protect cover while spreading
apart the left and right locks ( ) to
disengage as shown in the illustration, and
then open the splash protect cover ( ).
3. Slide the lock knobs on the left and right
sides of the roll paper holder as shown
in the illustration to align at the FREE
position ( ), and then push up the
ridged (
) portion ( ) to open.
• Please note that the positions of the
lock knobs on the left and right sides
are different.
4. Turn over the Handheld Printer Terminal.
* Not available for IT-3100M75E.
1
2
3
2
1
3
2
2
1
1
2
1
2
Part B
Part D
Part C
Part A
Screws (4)
PC card cushion
To Next Page
