E-70

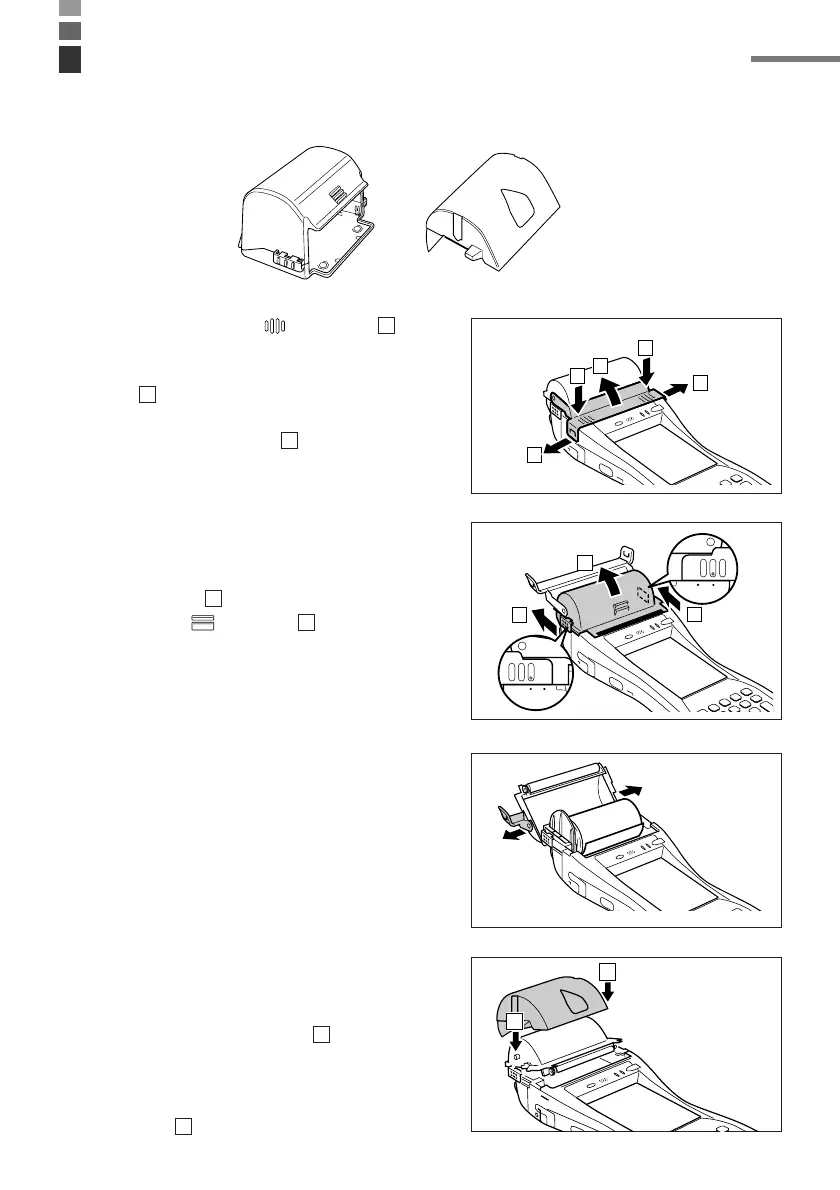

Attaching the Splash Protect Cover to the Handheld Printer Terminal lets you use it
even during inclement weather.
Attach the Splash Protect Cover by following the procedure described below.
1. Press the ridged (
) portions ( ) of
the paper outlet cover while spreading
apart the locks on the left and right sides
( ) to disengage them as shown in the
illustration followed by opening the
paper outlet cover ( ).
2. Slide the lock knobs on the left and right
sides of the roll paper holder as shown
in the illustration to align at the FREE
position ( ), and then push up the
ridged (
) portion ( ) to open.
• Please note that the positions of the
lock knobs on the left and right sides
are different.
3. Spread apart the bearing supports of the
paper outlet cover towards the left and
right directions and remove.
4. Attach the inner cover as shown in the
illustration. First, insert a tab on one side
of the roll paper holder into one of the
slits of the inner cover ( ). Next, push
down on the opposite side of the inner
cover, and insert the tab on that side of
the roll paper holder into the slit on that
side ( ).
Attaching the Splash Protect Cover
inner cover
1
2
3
1
2
1
2
1
3
2
2
1
1
2
1
1
2
To Next Page
