Casio LK-127 Service Manual & Parts Guide

LK-127
– 10 –

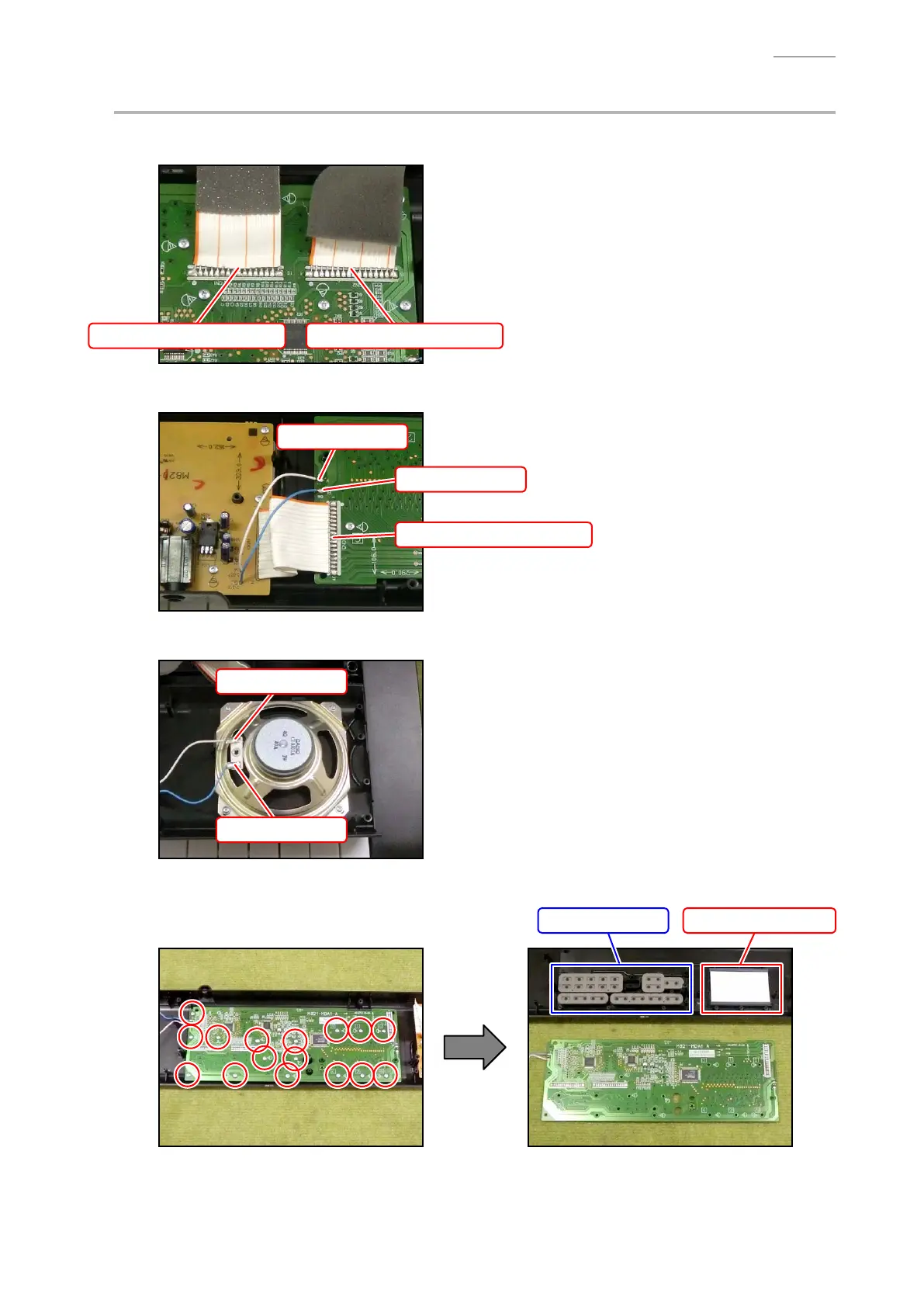

B. Remove the PCB UNIT/MAIN
B-1. Unsolder two ribbon cables.
Ribbon cable (LDA2 PCB)Ribbon cable
(
KYA2 PCB
)
B-2. Unsolder two lead wires and one ribbon cable.
Lead wire (White)
Lead wire (Blue)
Ribbon cable (PSA1 PCB)
B-3. Unsolder two lead wires from the right speaker.
Lead wire (White)
Lead wire (Blue)
B-4. Undo 16 screws and then remove the PCB UNIT/MAIN, four RUBBER KEY, and LCD components.
RUBBER KEY LCD components
