4. DISASSEMBLY
4-1. Important
• Please note that the product on this manual may appear to be different from the actual one
according to the changes such as engineering design change.
• Be sure to unplug the power cord before starting any repair/maintenance.

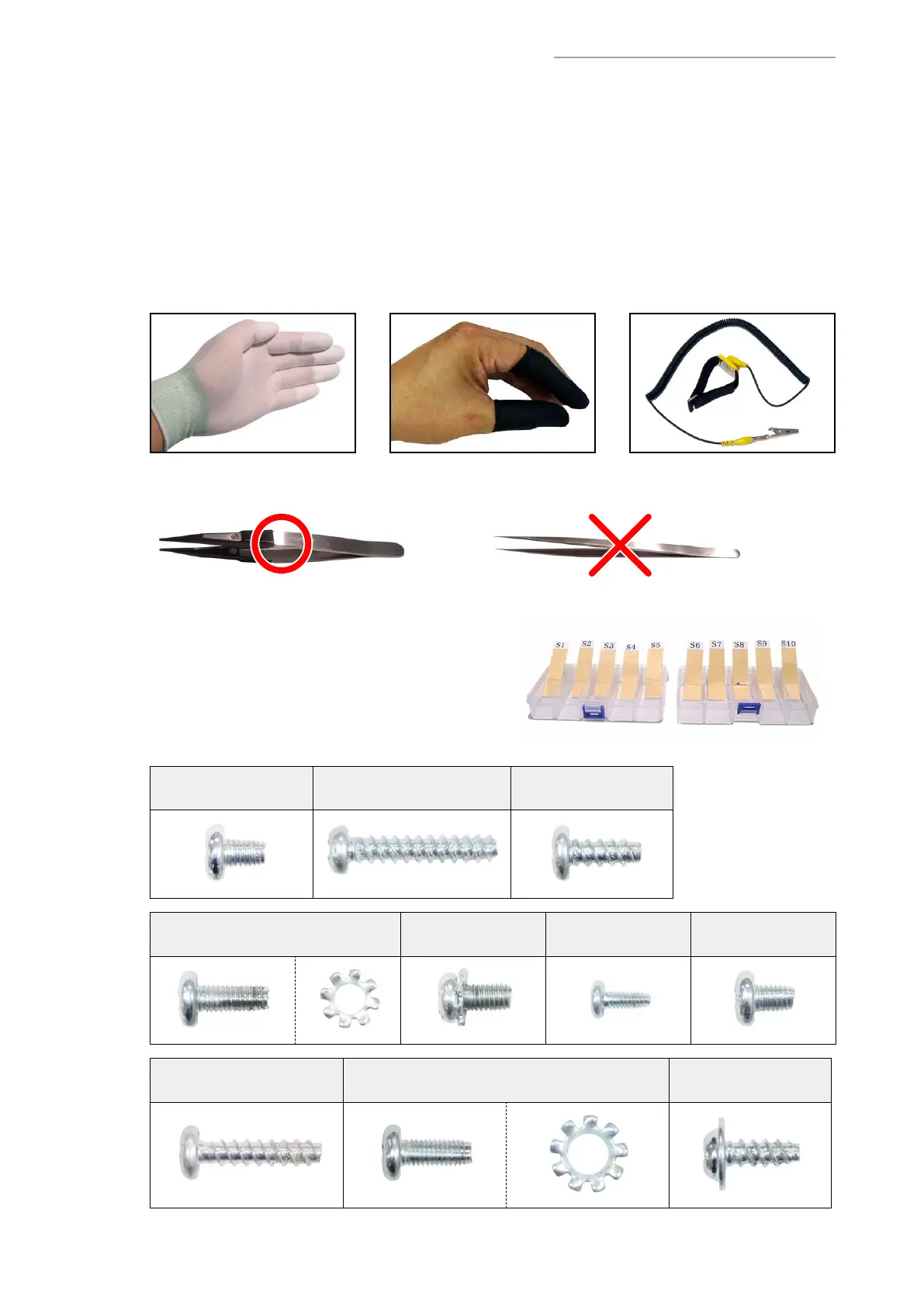

• In order to prevent static and avoid leaving grease from the hand, wear conductive gloves,
fi nger cots, or anti-static band when assembling/disassembling the product.
• Do not use metal tweezers. Be sure to use plastic tweezers with fl at tips.
(Anti-static tweezers are recommended)
• Cautions Concerning Screws
* There are several kinds of screws. Be sure
to use the correct type of screws when
reassembling. It is advisable to sort the
screws as shown right after removing them.
* Specifi cations of the screw
S1
( φ : 3mm, L: 5mm)
S2
( φ : 3mm, L: 16mm)
S3
( φ : 3mm, L: 8mm)
S4 ( φ : 3mm, L: 8mm)
+ Washer (
φ : 3mm)
S5
( φ : 3mm, L: 6mm)
S6
( φ : 2mm, L: 5mm)
S7
( φ : 3mm, L: 5mm)
S8
( φ : 3mm, L: 14mm)
S9 ( φ : 3mm, L: 8mm)
+ Washer ( φ : 4mm)
S10
( φ : 3mm, L: 8mm)
