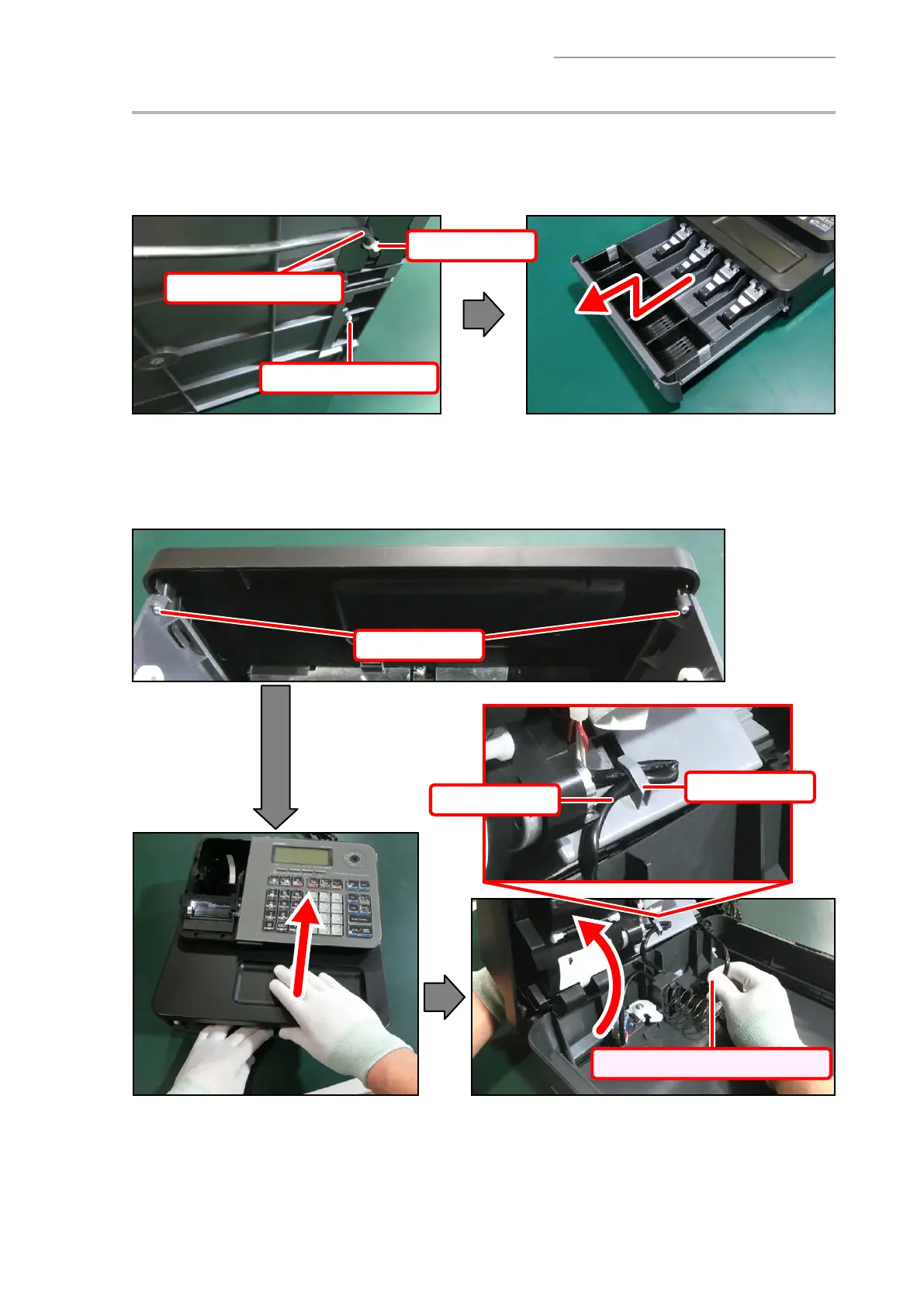

B. MAIN-UNIT (S-type Drawer)
B-1. Remove the cable tie.
B-2. Pull the drawer release lever and then remove the drawer.
[NOTE]
In case the drawer is locked with a drawer lock key, the lever does not activate.
Drawer release lever
Cable tie
AC power cord
B-3. Undo two screws.
B-4. Slide the MAIN UNIT toward the back. Disengage the MAIN UNIT as you pull out the AC power
cord.
B-5. Remove the drawer cable from the hook.
Pull out the AC power cord.
Screws (S2)
Hook
Drawer cable
To Next Page
