SE-S100 / PCR-T285 / PCR-T295
– 10 –

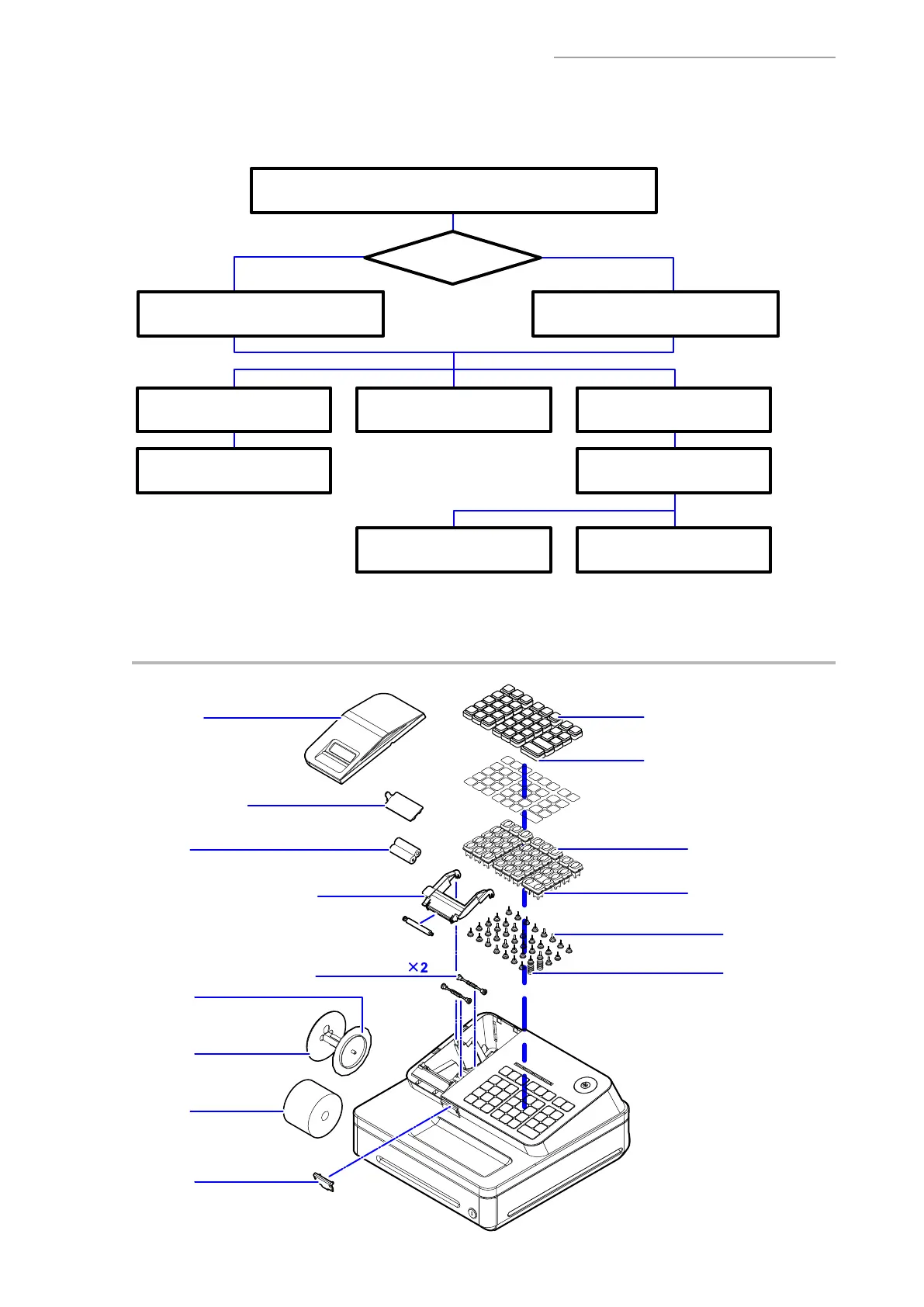

4-2. Flowchart
* See the fl owchart below for the order of disassembling major components.
B. MAIN-UNIT (S-type Drawer) B. MAIN-UNIT (M-type Drawer)
D. PS-ASSY
PS-UNIT, DISPLAY-UNIT
E. MODE KEY
F. MOTER G. PCB ASSY/E286-1
H. MOUNT/PCB
J. KEY BOARD UNITI. PRINTER
A. Replacement of detachable parts of the product
Drawer Type?
S-type M-type
4-3. Procedure
A. Replacement of detachable parts of the product
COVER/PRINTER
COVER/BATTERY
PLATEN ARM
ROLLER/D-P
PULLY/WIND
COVER/SD
SPOOL/PAPER
Memory protection batteries
Paper roll
SPRING/PRESS/A
CAP/L
KEY TOP/L
KEY TOP/S
CAP/S
RUBBER/CONTACT
To Next Page
