SE-S100 / PCR-T285 / PCR-T295
– 19 –

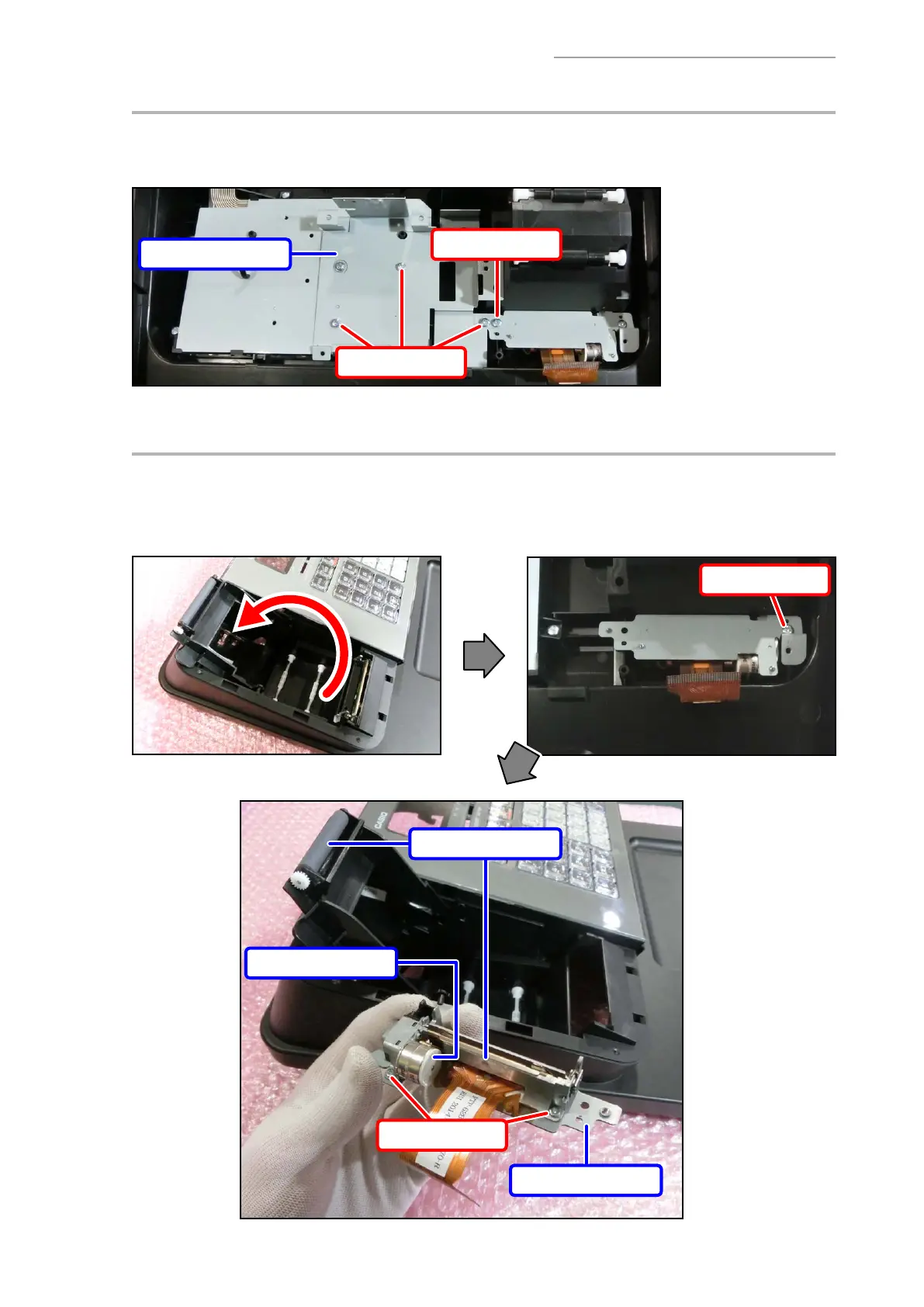

H. MOUNT/PCB
H-1.
Undo four screws.
H-2.
Remove the MOUNT/PCB.
Screws (S7)
Screw (S3)
MOUNT/PCB
I. PRINTER
I-1.
Open the Platen arm
I-2.
Undo two screws.
I-3.
Remove the PRINTER.
Screw (S3)
COVER/PRINTER
MOUNT/PRINTER
PRINTER
Screws (S6)
STOPPER
20
22
Table of Contents
Table of Contents
2
Specifications
3
IPL (Initial Program Loader)
4
Initialization
4
Initialization
5
Initial LOCALE Judgment/Settings
5
Specifications of the Screws
11
Disassembly
11
Replacement of Detachable Parts of the Product
12
MAIN-UNIT (S-Type Drawer)
13
Cover/Pcb
14
MAIN-UNIT (M-Type Drawer)
15
DRAEWR Case
16
PS-Assy (PS-Unit, Display-Unit)
17
Mode Key
20
Motor
20
PCB Assy/E286-1
20
Mount/Pcb
21
Printer
21
Key Board Unit
22
Diagnostic Program
23
Diagnostic Operation
23
Test Item
24
Test Procedures
25
Status Display
25
Batch Tests
26
RAM Test (Write / Read)
27
Flash ROM Test (Clear / Write / Read)
27
SD Card Test (Write / Read, Report)
28
Display Test
29
Main Display Contrast Adjustment
30
Main Display Backlight Test
30
Internal Printer Character Print Test
31
Time & Date Setting / Time & Date Display
32
Drawer Open Test
32
Buzzer Test
33
Key Test
33
Block Diagram
34
Technical Information
34
PCB Layout
35
Exploded View / Parts List
36
Exploded View
37
Parts List
39
Drawer S-Type (DL-1335A / DL-1844A)
45
Drawer M-Type (DL-2816A)
47
Other manuals for Casio PCR-T295
User Manual
95 pages
Quick Start Guide
2 pages
4
Based on 1 rating
