– 3 –

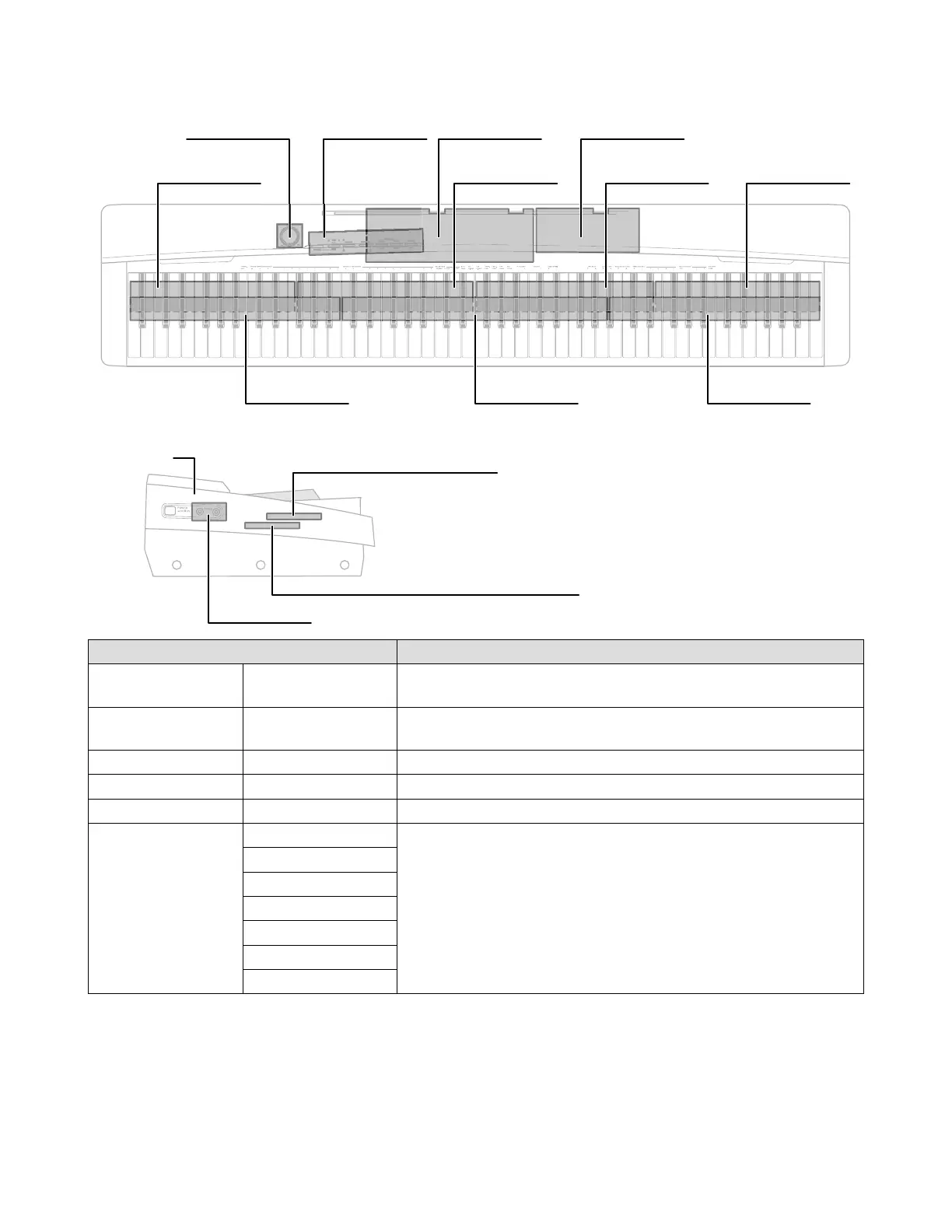

PCB LAYOUT
MACP-KYA1, MACP-KYA2,
MACP-KYB1, MACP-KYB2
MACP-KYC1, MACP-KYD1,
MACP-KYC2
MACP-KYA1 MACP-KYA2 MACP-KYB1
M900-MDA1M900-PSA1M900-CNA1M900-CNA2
MACP-KYB2
MACP-KYC1
M900-HPA1
MACP-KYD1 MACP-KYC2
Left side
PCBs Components
Main PCB M900-MDA1 MPU, Reset IC, SDRAM (256 Mbit), Flash Memory (256 Mbit),
PSRAM (32 Mbit), Power Supply Circuit, Key Controller, USB Port
Sub PCB M900-PSA1 DC12VTerminal,PowerSupplyCircuit,Filter,PowerAmplier,
Damper Pedal Jack
Console PCBs M900-CNA1 Buttons
Volume PCB M900-CNA2 Main Volume
Jack PCB M900-HPA1 Phones Jacks
Keyboard PCBs MACP-KYA1 Keyboard
MACP-KYA2
MACP-KYB1
MACP-KYB2
MACP-KYC1
MACP-KYC2
MACP-KYD1

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Casio PX-130 and is the answer not in the manual?

Casio PX-130 Specifications

General IconGeneral
Polyphony128 notes
Tones16 built-in tones
Speakers2 x 8W
Amplifier Output8W + 8W
MIDIYes
USBYes
Touch Response3 sensitivity levels, Off
Lesson FunctionYes
Recorder2 tracks, 1 song
MetronomeYes
PedalsIncluded SP-3
Power Consumption18W
Keyboard88-key, Scaled Hammer Action
Weight11.2 kg
Digital EffectsReverb (4 types)
Built-in Songs60 songs
TerminalsUSB, Pedal
Power RequirementsAC adaptor AD-A12150LW
Touch Sensitivity3 levels, off
Transpose25 steps (-12 to +12 semitones)
ConnectorsUSB, Pedal
Power SupplyAC adaptor AD-A12150LW
Included AccessoriesMusic stand
Recorder CapacityApproximately 5, 000 notes
TuningA4 = 415.5Hz to 465.9Hz
