PX-150

– 3 –

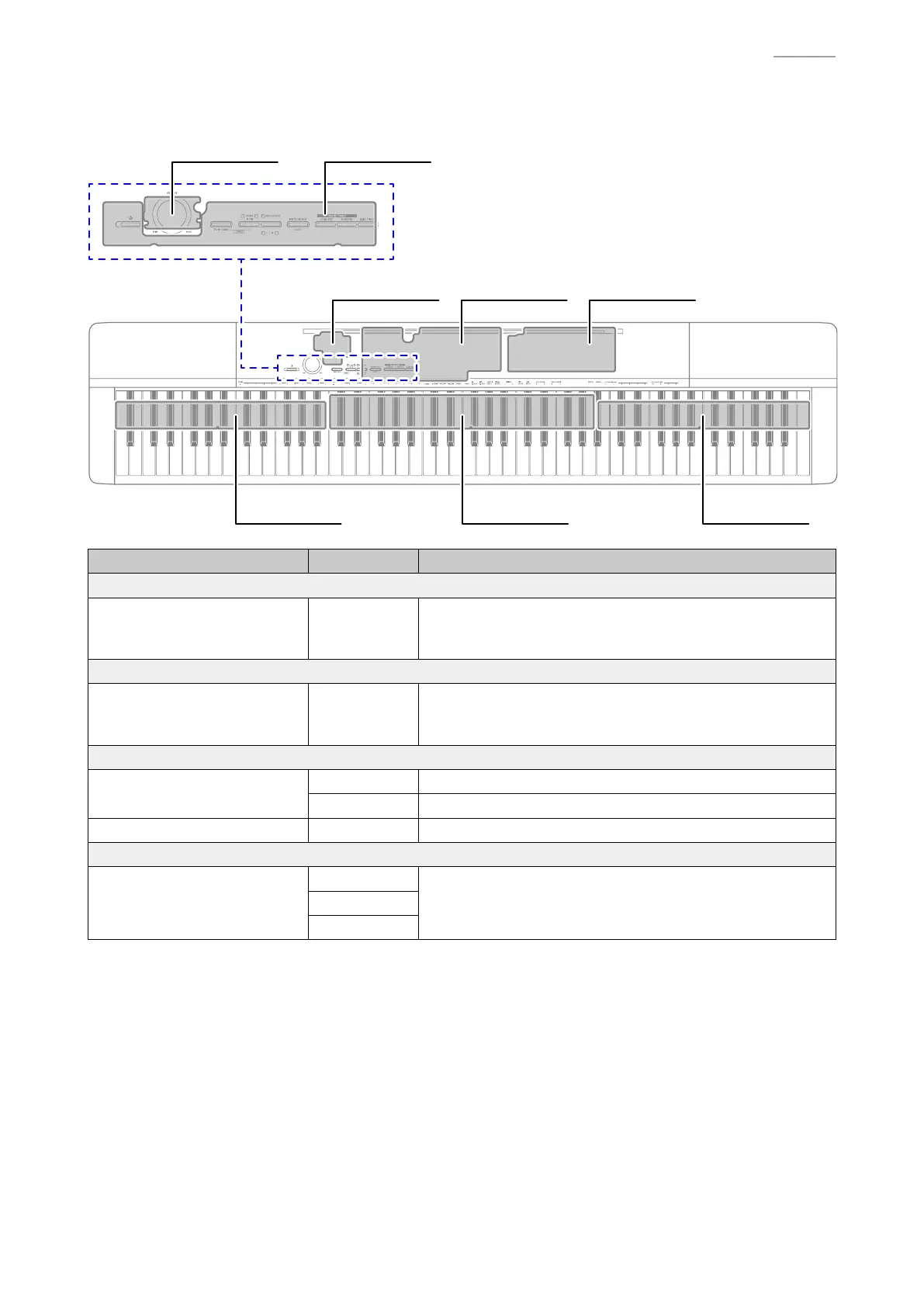

PCB INFORMATION

M920-KYC1

M920-CNA1

M920-CNA2

M920-MDA1M920-PSA1M920-HPA1

M920-KYB1M920-KYA1

Parts Name PCB Name Functions

MAIN PCB

PCB UNIT/MAIN M920-MDA1

MPU, SDRAM, EEPROM, Power supply circuits, Preamp,

Filter, DAC, APO Circuit, Electronic volume, USB port,

Pedal connector

POWER & AMP PCB

PCB UNIT/POWER & AMP M920-PSA1

Powersupplycircuits,Poweramplier,

Headphonesamplier,Speakers,DC12VTerminal,

DAMPER PEDAL jack

CONSOLE PCB

PCB UNIT/CNA

M920-CNA1 Power switch, Buttons, LED

M920-CNA2 Main volume

PCB UNIT/HPA1 M920-HPA1 PHONES jacks

KEYBOARD PCB

PCB UNIT/

KY and RUBBER CONTACT

M920-KYA1

KeyboardM920-KYB1

M920-KYC1

Other manuals for Casio PX-150

Questions and Answers:

Need help?

Do you have a question about the Casio PX-150 and is the answer not in the manual?

General

Category	Digital Piano
Touch Response	3 sensitivity levels, Off
Sound Source	Multi-dimensional Morphing AiR
Maximum Polyphony	128 notes
Tones	18 built-in tones
Lesson Function	Part On/Off
Metronome	Yes
Duet Mode	Yes
Speakers	12cm x 2
Amplifiers	8W + 8W
Modes	Layer, Split
Songs	60 built-in songs
Tuning	A4 = 415.5Hz ~ 440.0Hz ~ 465.9Hz
Digital Effects	Reverb (4 types), Chorus (4 types)
Recorder	2 tracks, 1 song
Transpose	-12 to +12 semitones
Pedals	Included: SP-3, Optional: SP-33 (damper, soft, sostenuto)
Connections	Headphones (2), USB (to Host), Sustain Pedal
Power Supply	AC Adapter AD-A12150LW
Dimensions	1, 322 x 286 x 135 mm (without music stand)
Weight	11.1 kg (without music stand)
Keyboard	88-key, Scaled Hammer Action Keyboard II
