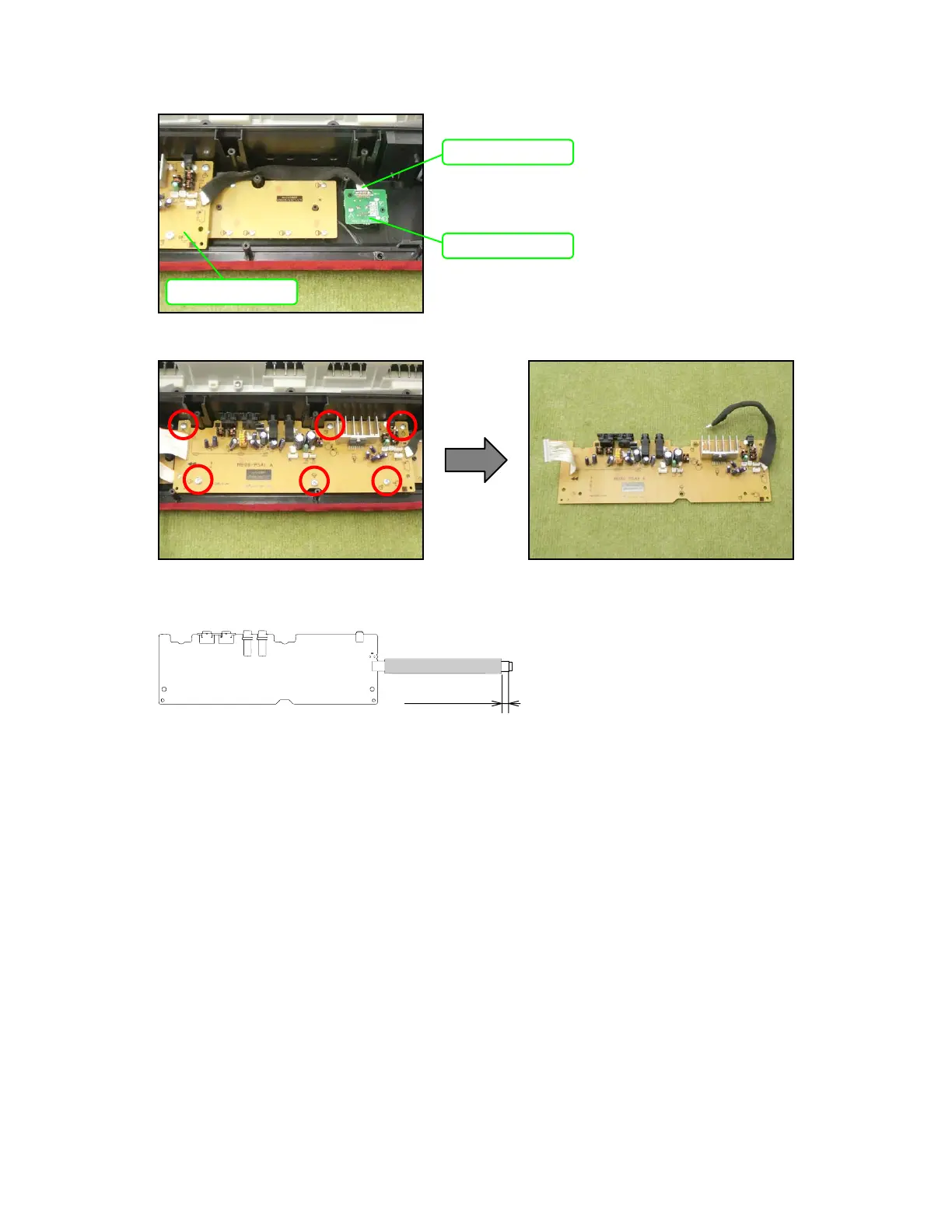

4. Unsolder the FFC connected to the M901-CNA3 PCB.
5. Undo six screws and then remove the M900-PSA1 PCB.
FFC (M900-PSA1)
M901-CNA3 PCB
M900-PSA1 PCB
10 ± 5 mm
<Caution when replacing with a new part>
To attach sponge to the cable to the M900-PSA1 PCB, refer to the illustration below for its position.
