— 13 —

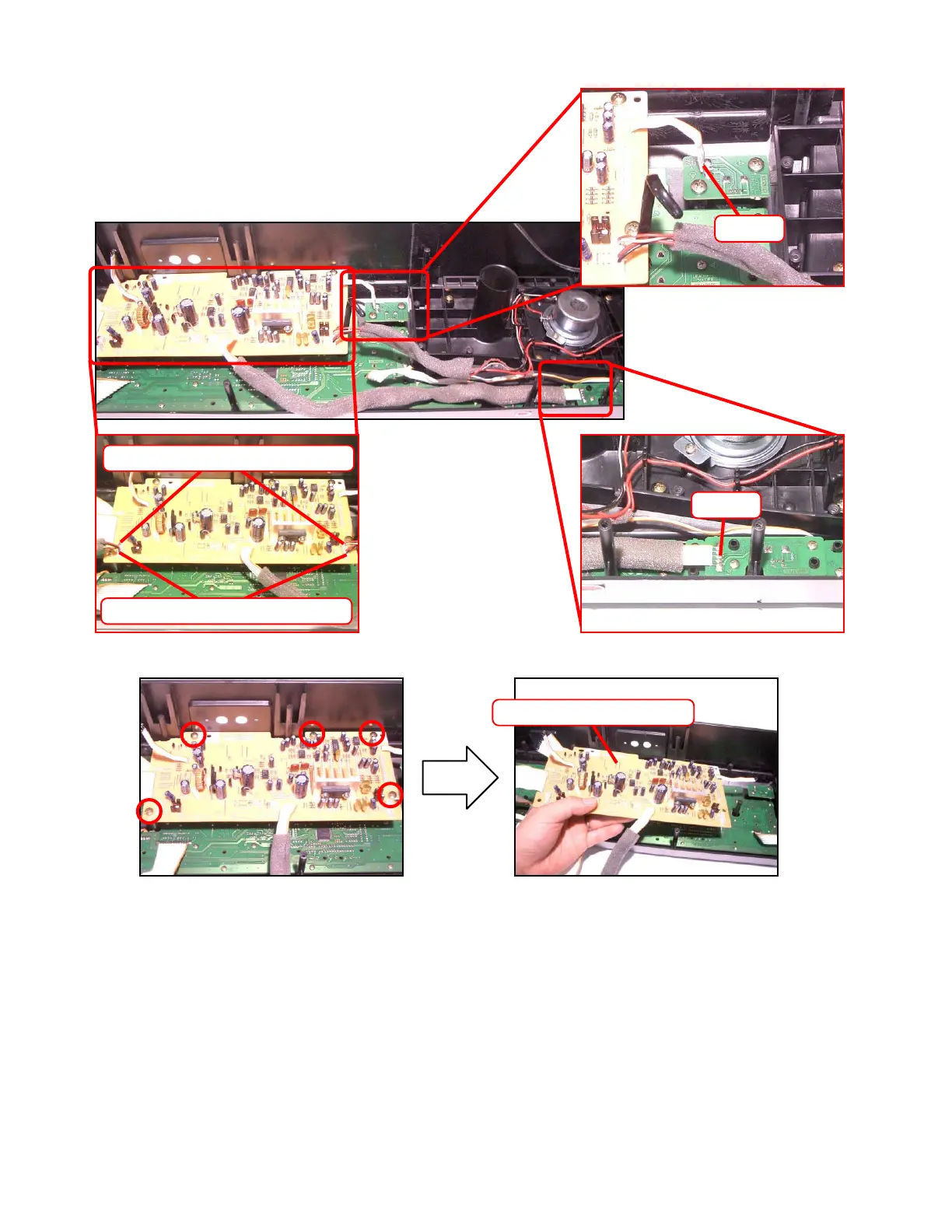

22.
Remove 5 screws and the M421-PSA1 PCB.
Speaker cables (Red, White)
Speaker cables (Red, Black)
CN603
CN602
M421-PSA1 PCB
■
T
o remove the M421-PSA1 PCB
20.
Unsolder to remove 2 cables.
21.
Remove the 4 speaker cables.
14
16
Table of Contents
Table of Contents
2
Specifications
3
Block Diagram
5
Circuit Description
6
Printed Circuit Board
8
Disassembly
10
Diagnostic Program
19
Exploded View
22
Parts List
23
Schematic Diagrams
27
