– 11 –

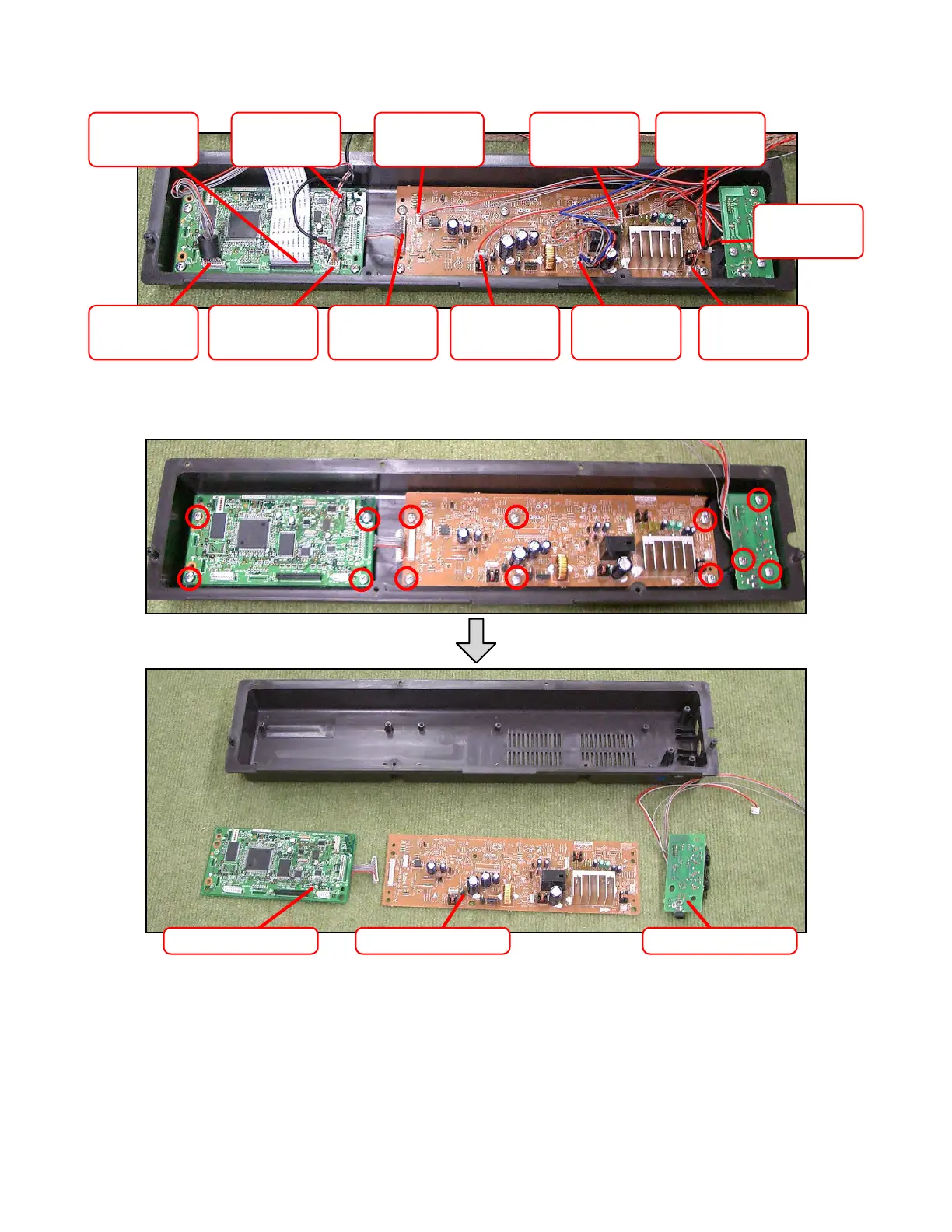

4. Remove the 11 connectors, release the lock and then remove the FPC.
Connector
(M681-CNA1)
Connector
(M681-CNA1)
Connector
(M681-CNA3)
Connector
(SPEAKER(R))
Connector
(M681-CNA4)
Connector
(Pedal)
FPC
(Keyboard)
Connector
(M408-MDA1)
Connector
(M681-CNA3)
Connector
(M681-CNA2)
Connector
(SPEAKER(L))
Connector
(Power SW)
5. Remove 4 screws and the M408-MDA1 PCB.
6. Remove 6 screws and the M408-PSA1 PCB.
7. Remove 3 screws and the M681-CNA3 PCB.
M408-MDA1 PCB M408-PSA1 PCB M681-CNA3 PCB
