Casio QT-6600 Service Manual
4
of 1
of 1 rating
136 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
— 25
—

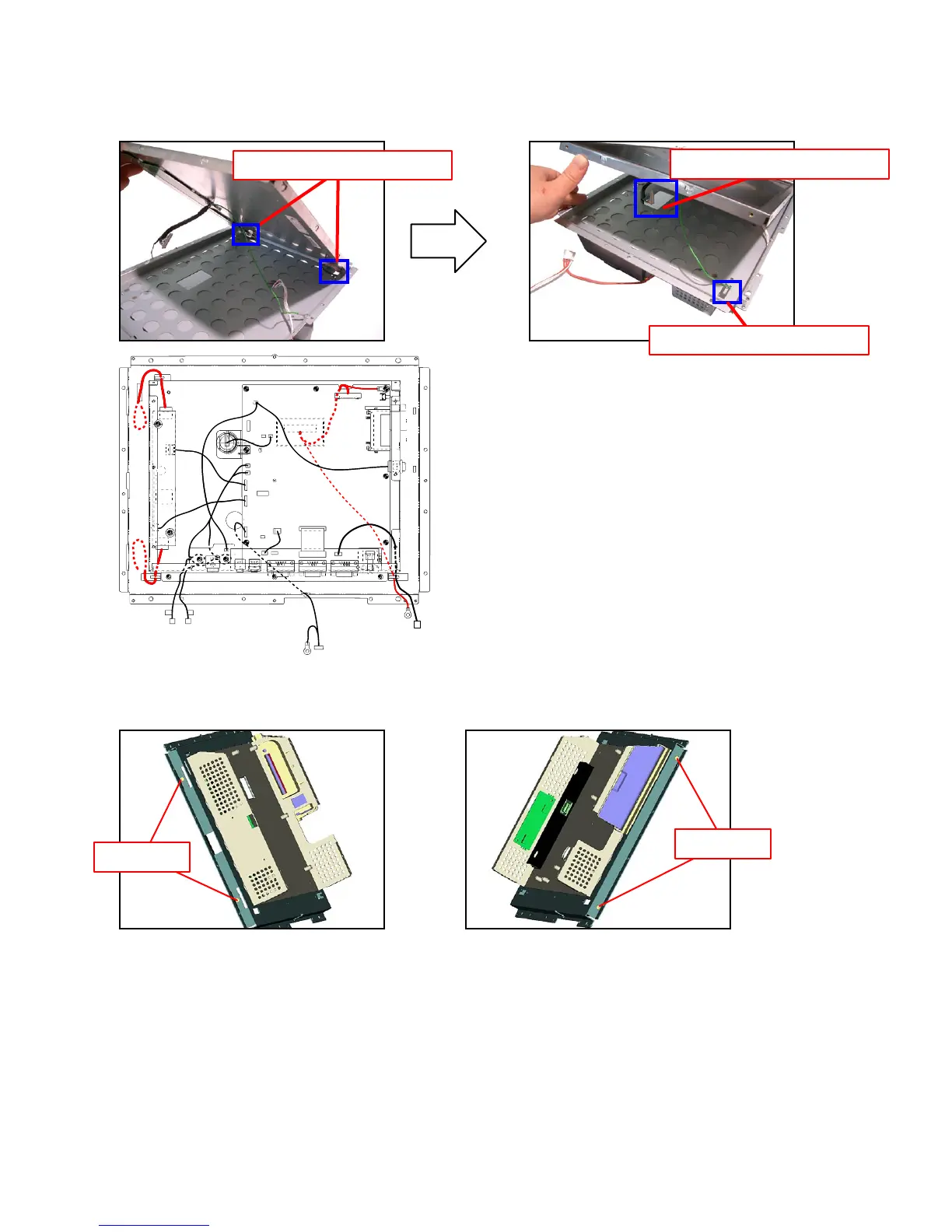

A. Assembling the LCD/T
ouch Panel
A-1. Lay four cables in the appropriate groove.
LCD cable
Earth cable
A-2. Engage the LCD Unit and secure it with four screws.
NOTE
:
Do not tighten the screws excessively
. (Reference torque value: 0.34N
•
m or less)
Screws (S10)
Screws (S10)
Backlight cables
27
29
