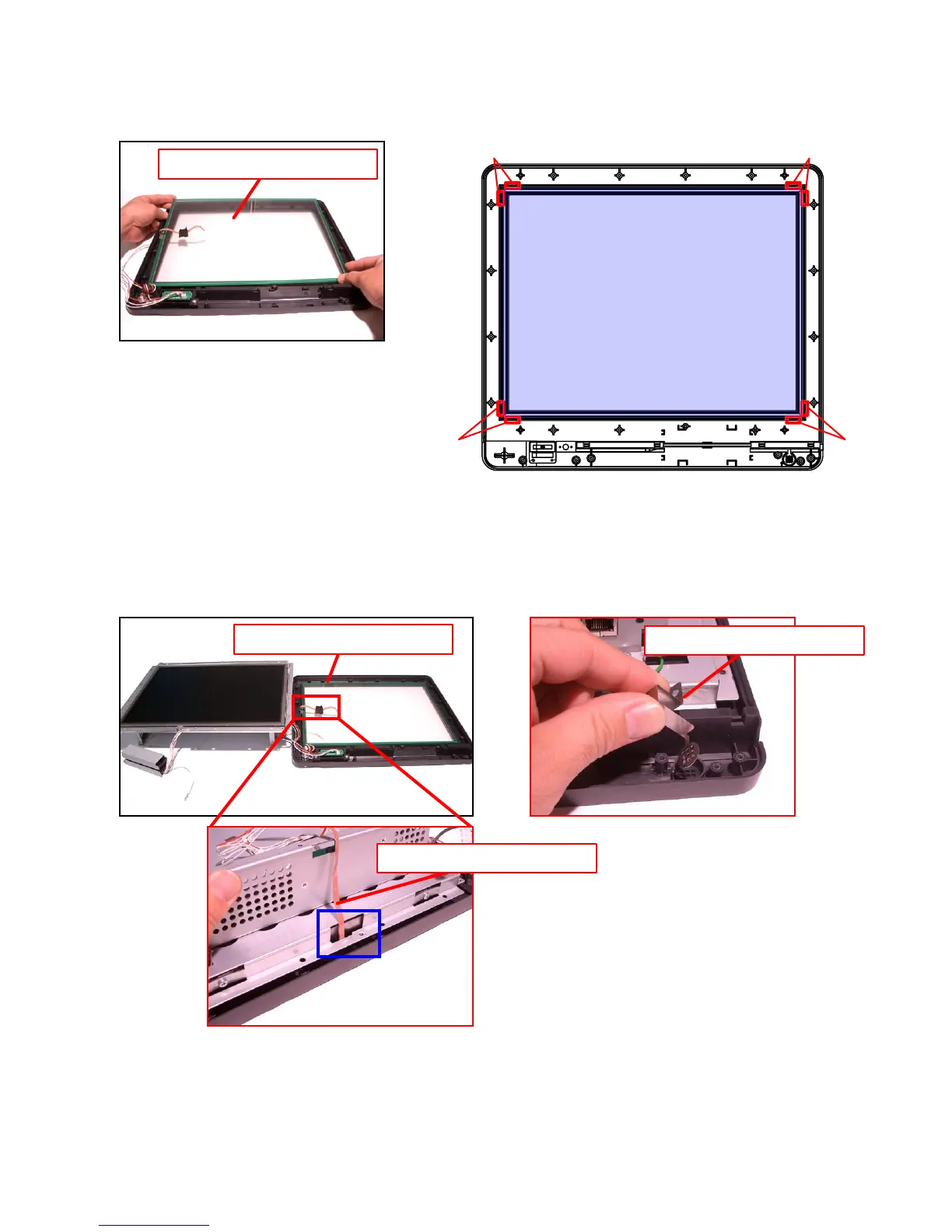

A-3. Engage the Touch Panel.
NOTE: Place the Touch Panel evenly inside the guides of the U-case.
Touch panel
A-4. Engage the U-Case Assy Block.
NOTE: Before engaging the U-case Assy Block, be sure that the LCD and the Touch Panel are clean and
free of dust, dirt, or any foreign matter.
NOTE: Pull out the FPC of the Touch Panel through the opening of the chassis.
A-5. Engage the Mic Earth.
U-CASE ASSY BLOCK
Mic earth
Touch panel FPC
To Next Page
