— 32 —
Screws (S5)
Screws (S7)
Black
White
Green
White
Black

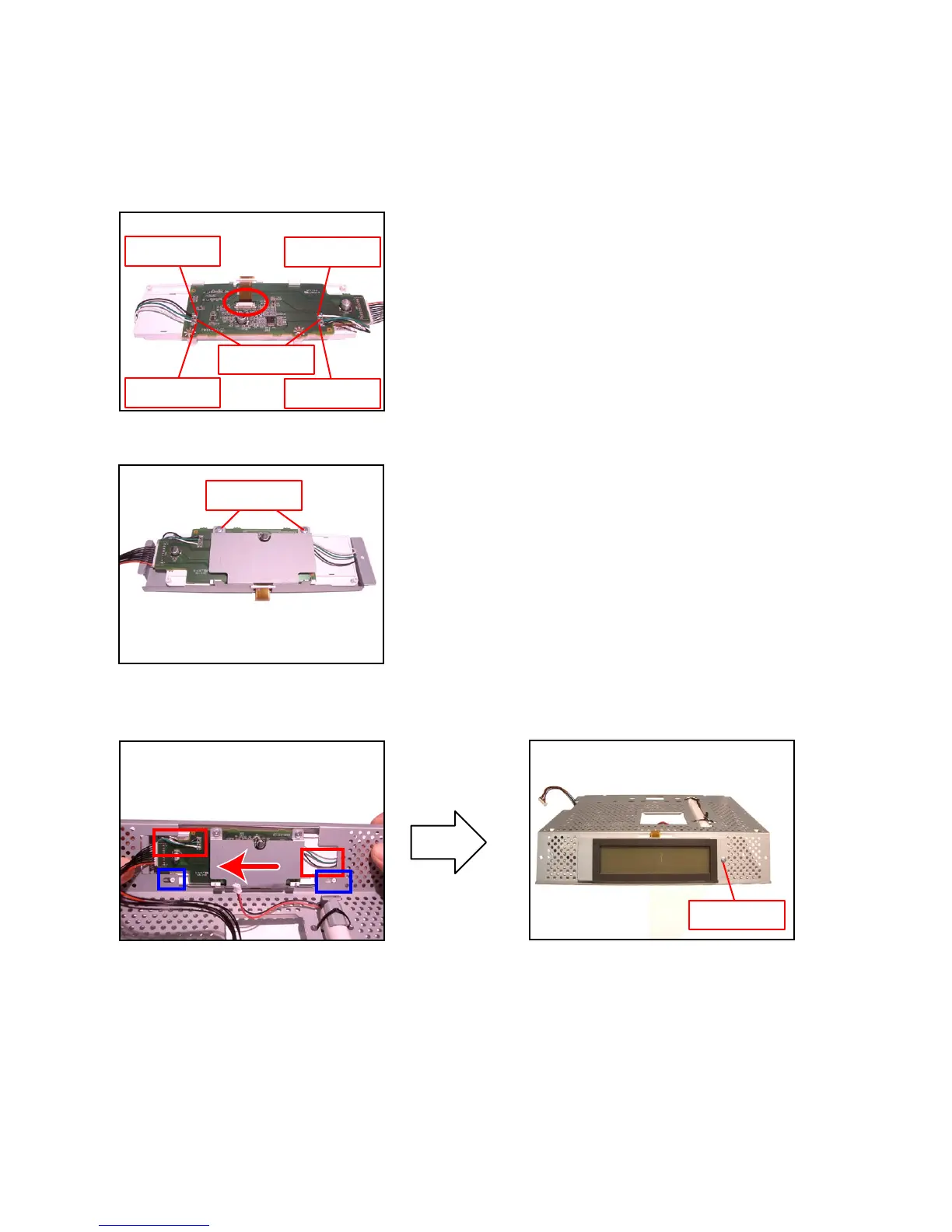

J. Assembling the Rear Display
J-1. Engage the Rear LCD PCD (E830-E22).
J-2. Use solder to connect six lead wires.
J-3. Connect the FPC.
NOTE: Engage the FPC securely until it locks in.
J-4. Engage the LCD Frame and secure it with two screws.
J-5. Engage the Rear Display Unit and secure it with the screw.
NOTE: When assembling, use caution so that the wires are not caught in chassis.
