— 33 —
Connector (Battery)
Screws (S6)
Connector (REAR DISPLAY)

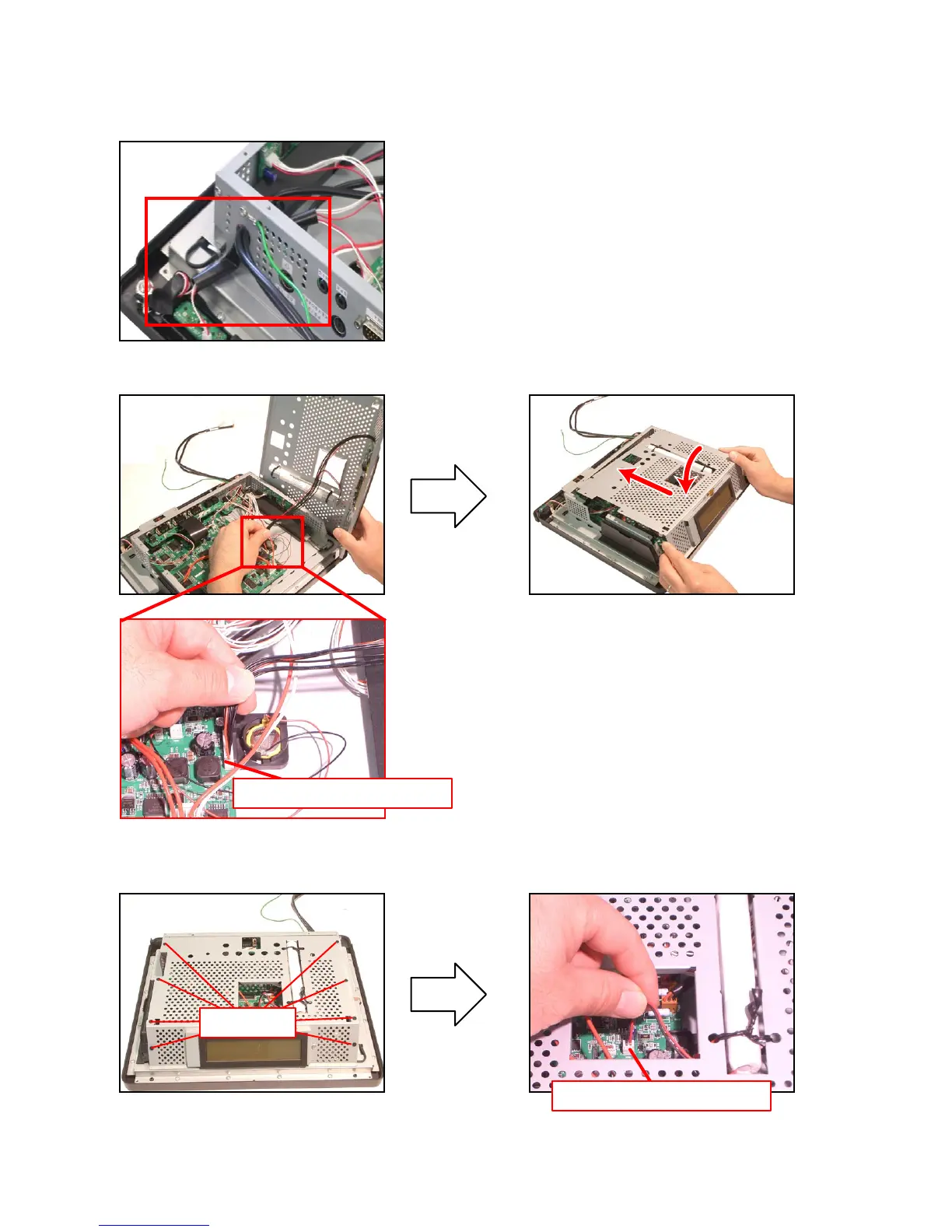

K. Assembling the Rear Display Block
NOTE:
Check that the cables for the i-Button key receiver and the LED PCB (E830-E6) are contained in the tube.
K-1. Plug the connector to the Rear Display and engage the Rear Display Block.
K-2. Secure it with eight screws.
K-3. Plug the connector to the Battery.
