Casio QT-6600 Service Manual

— 47 —
[ 2 ] Batch Test 2
[Function]
Performs the following tests in sequence.
(1) LCD Test: Performs the LCD Display Test.
To change the screen, touch any part of the panel.
Select the test result "1" (OK) or "9" (NG) by touching the panel.
(2) LCD Backlight Test: Performs the OFF test of the LCD Backlight.
To change the screen, touch any part of the panel.
Select the test result "1" (OK) or "9" (NG) by touching the panel.
(3) REAR DISPLAY Test: Performs the REAR DISPLAY Test.
To change the screen, touch any part of the panel.
Select the test result "1" (OK) or "9" (NG) by touching the panel.
(4) REAR DISPLAY Backlight Test: Performs the OFF test of the Rear LCD Backlight.
To change the screen, touch any part of the panel.
Select the test result "1" (OK) or "9" (NG) by touching the panel.
[Operation]
Operation : 2 ST
[LCD] [PRINT]

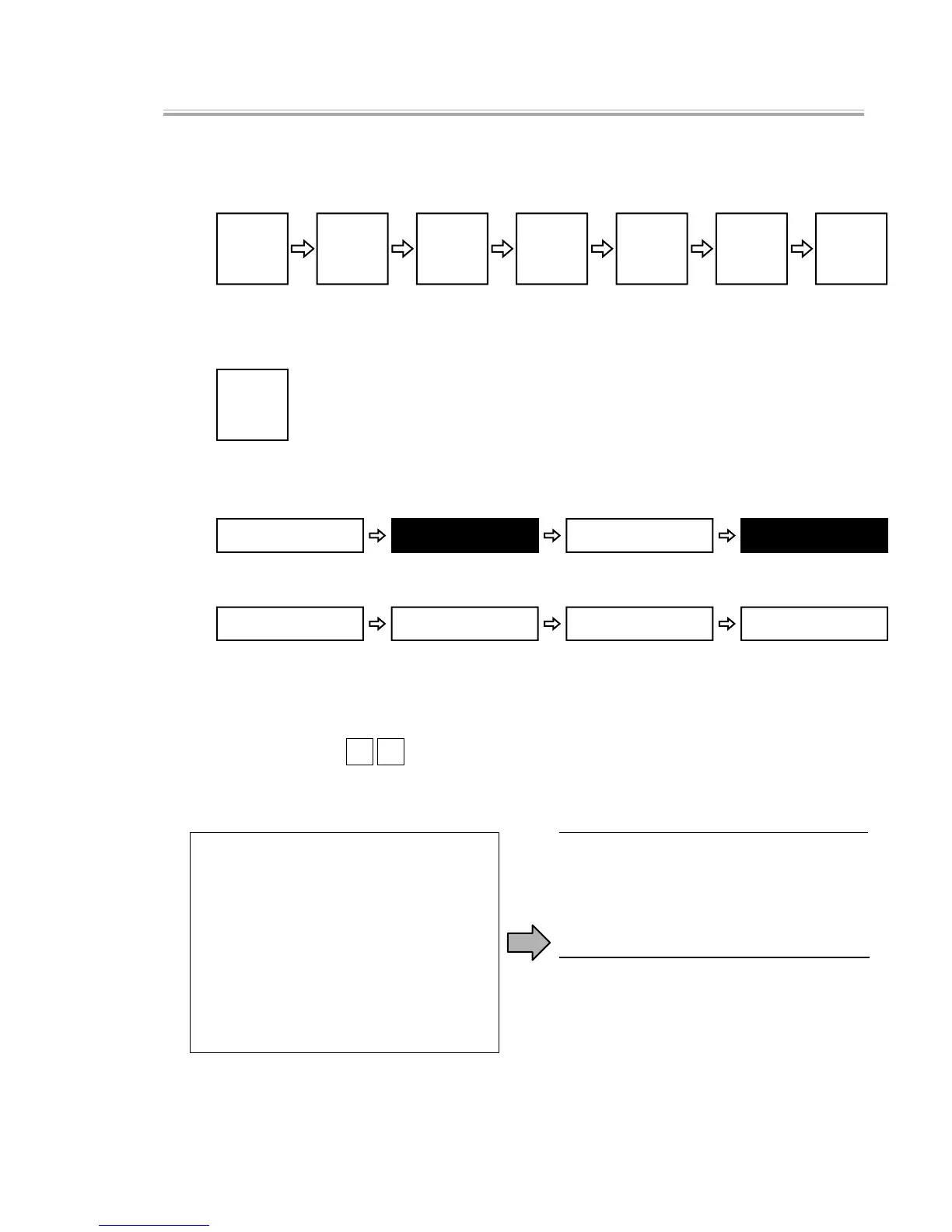

BATCH 2
Please Hit Key OK−>1 NG−>9
LCD OK
Please Hit Key OK−>1 NG−>9
LCD BACKLIGHT OK
Please Hit Key OK−>1 NG−>9
REAR DISP OK
Please Hit Key OK−>1 NG−>9
REAR BACK LIGHT OK
END 2
BATCH 2
LCD OK
LCD BACKLIGHT OK
REAR DISP OK
REAR BACKLIGHT OK
END 2
Green Blue
Reverse
check
RedWhiteBlack
Check (black
and white)
ABCDEFGHIJKLMNOPQRST
UVWXYZabcdefghijklm
n
ABCDEFGHIJKLMNOPQRST
UVWXYZabcdefghijklm
n
Back light
OFF
Back light OFF
White
Green
Emerald green
