Casio WK-240 Service Manual & Parts Catalogue

WK-240
– 23 –

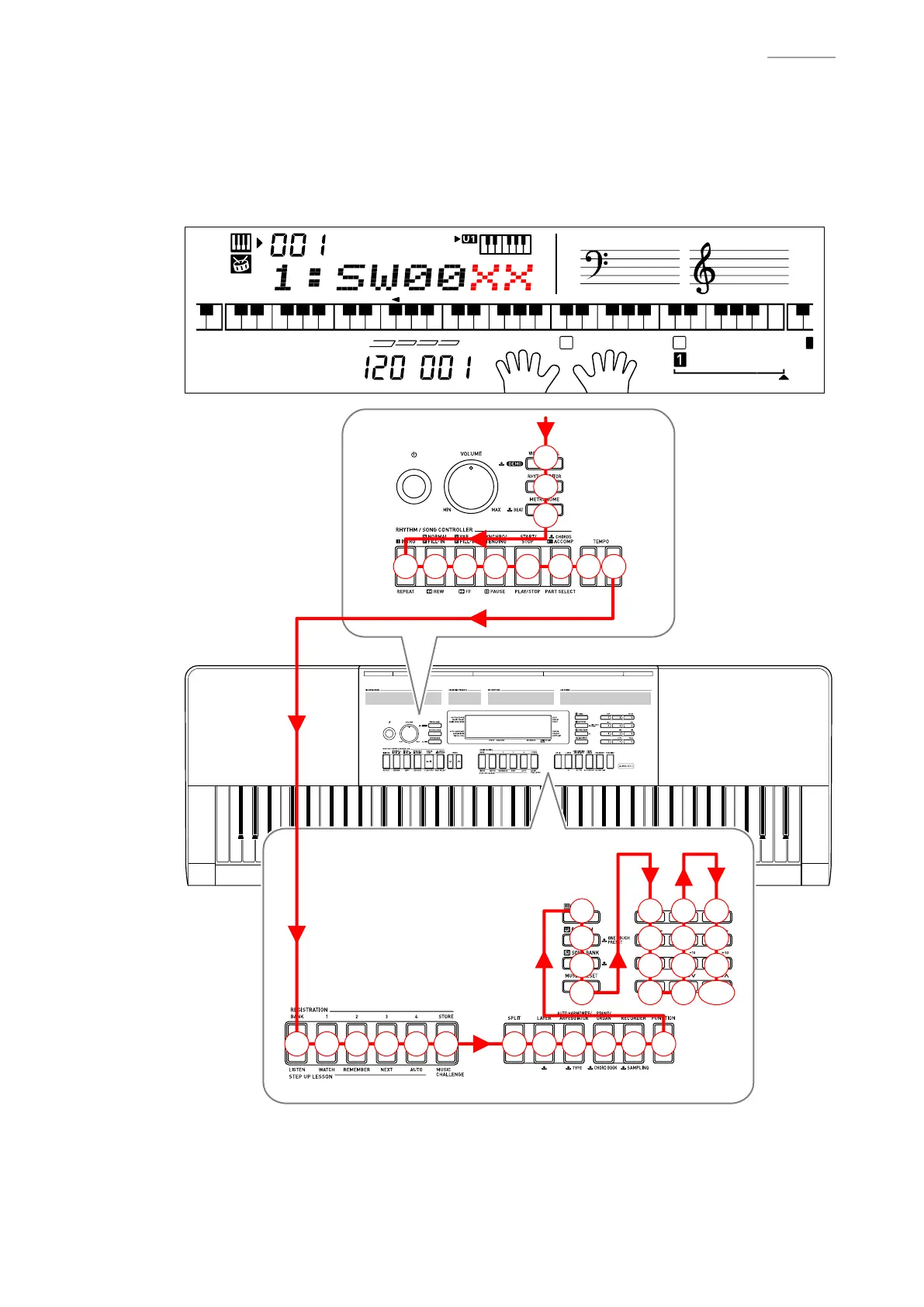

A-2. Press the buttons in the order indicated in the fi gure below.
If the result passes (OK):
• The confi rmation tone sounds and “1:SW00” and button number shown below “XX” appears.
If the result fails (NG):
• If there is a button failure or the buttons are pressed in a wrong sequence, the error tone
sounds and the button number which you pressed will be appears.
START
24
25
22
05 06 07 08 09 21 0B 0A
0F 0C 0D 10 0E 11 12 13 14 23 26 27
00
01
02
04
1C
19
16
15
1D
1A
17
20
1E
1B
18
SW OK!

Casio WK-240 Specifications

General

Control type	Buttons
MIDI-keyboard number of keys	76 keys
Metronome	Yes
Product color	Black, Silver
Sound effects	Chorus, Reverberation
Sound effects quantity	180
Maximum polyphony (notes)	48
Music memory capacity (songs)	10
Interface	USB
Headphone outputs	1
Display type	LCD
Power source type	AC, Battery, DC
Number of batteries supported	6

Weight and Dimensions

Depth	385 mm
Width	1161 mm
Height	134 mm
Weight	6900 g
