Catchbox Plus User Manual

19
Catchbox Plus
Receiver Specifications
Parts
1. Volume buttons
2. Volume LEDs
3. Status LEDs
4. Pairing button
5. Balanced audio output
6. Power switch
7. Power jack (USB micro)
Specifications
Weight
200g / 7oz
Dimensions (without antennas) 130 x 130 x 40 mm / 5.11 x 5.11 x 1.57 in
Power supply 5V 1A USB micro
Analog audio output TRS 6.3 mm / 1/4 in jack - balanced
Digital audio output
USB micro, USB-Audio protocol, no codec
installation required

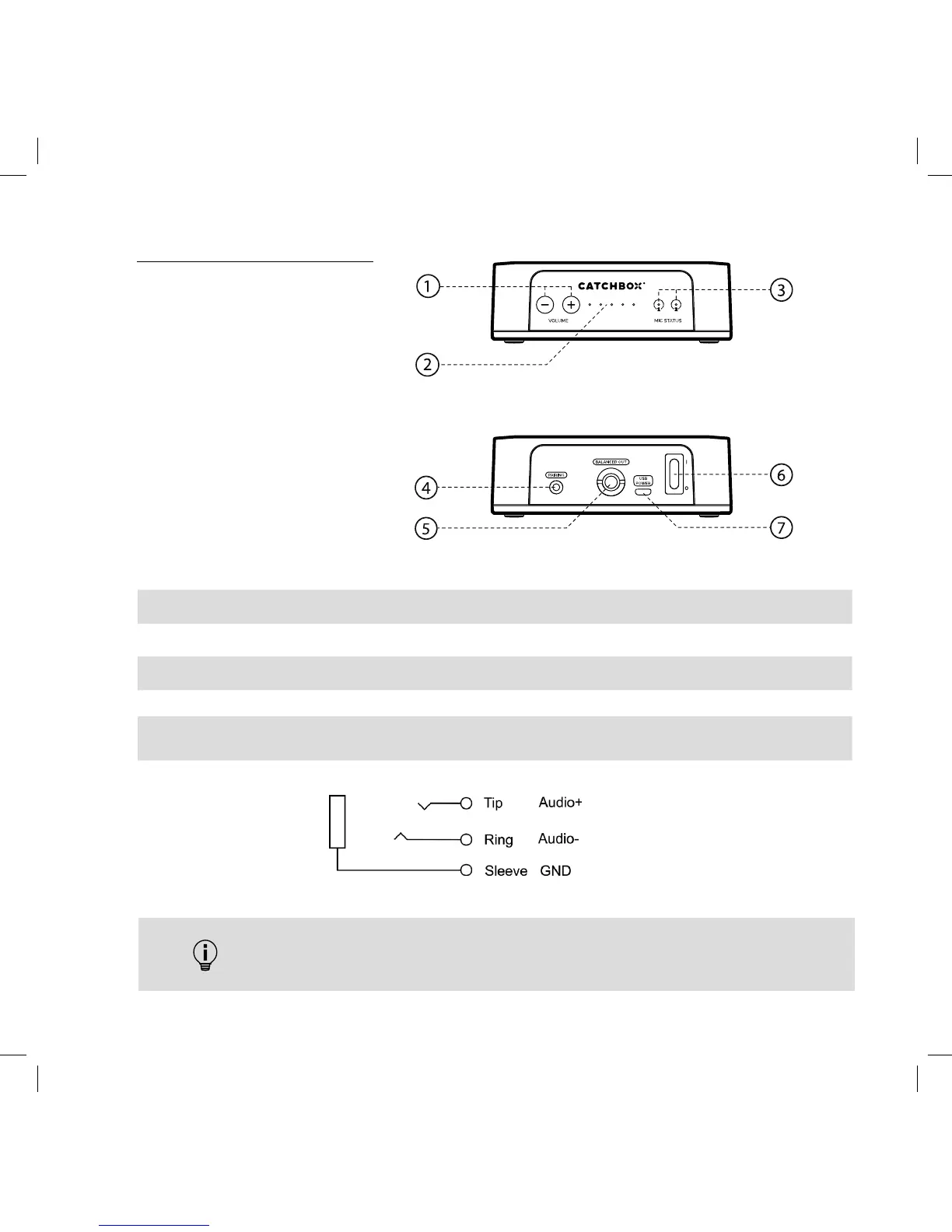

Front view
Rear view
Balanced Audio
Output Schematic
Both audio outputs operate simultaneously

Catchbox Plus Specifications

General

Brand	Catchbox
Model	Plus
Category	Microphone system
Language	English
