Depending on the input type of your Audio device, you may need to use
additional audio adapters (purchased separately). Please refer to the wiring
diagram of the Receiver’s balanced audio output (page 19)

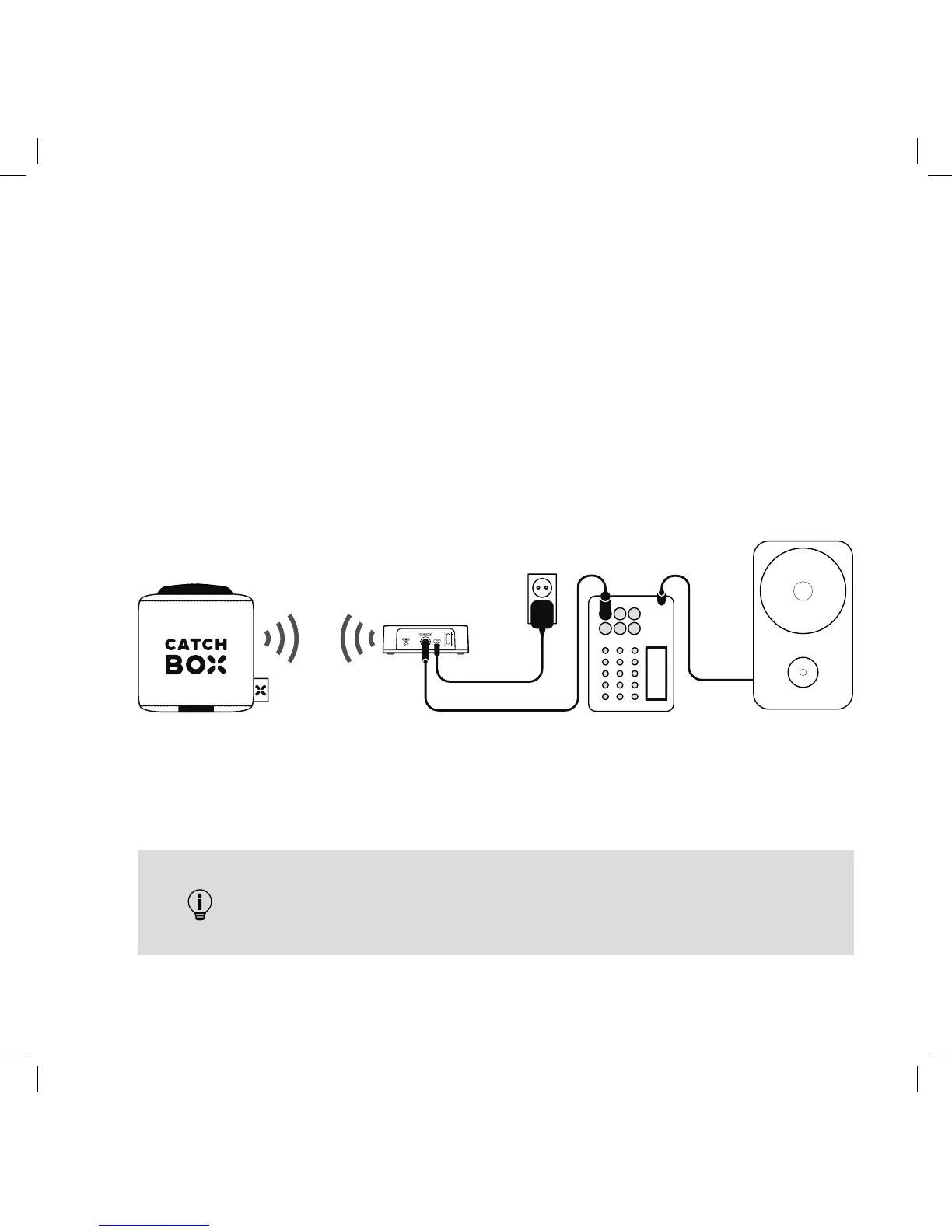

Use Case A
Catchbox with an Audio System
1. Plug the included Power supply to AC mains outlet and connect it to the Receiver's micro-USB
socket.
2. Plug the included audio cable to the Receiver's balanced audio output and connect it to the input
of your Audio System (mixer board, amplifier or other audio device).
3. Turn on both the Transmitter and the Receiver.
POWER
AUDIO
