MS-7
Replacing the V-Belt Tension Pulley
Replacing the V-Belt Tension Pulley
MS-7
The procedures stated in this section should be performed by two
persons.
 REMOVAL
1. Detach the frame cover, and then remove the V-belt.
(See [MS-4: Replacing the V-Belt ]:  REMOVAL.)
2. Remove the hexagon head bolt, and then remove the V-belt
tension pulley. (Fig. 1)
 ASSEMBLE
1. Mount the V-belt tension pulley by using a hexagon head bolt.
2. Mount the V-belts, and then mount the frame cover.
(See [MS-4: Replacing the V-Belt ]:  ASSEMBLE.)

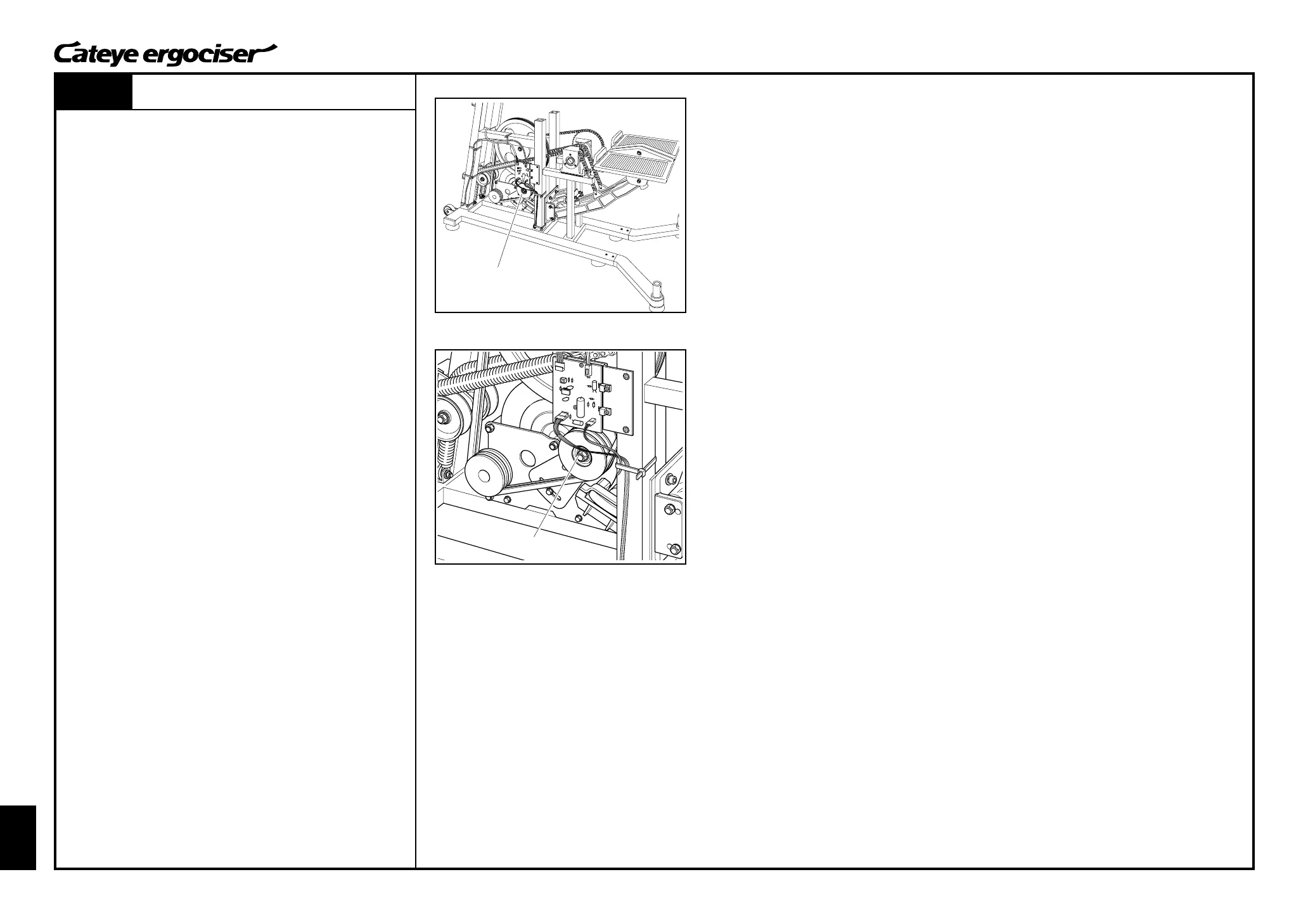

General Figure
V-Belt Tension Pulley
Fig.1
Hexagon Bolt
