CATTABRIGA EFFE4 B - Technical Features; Machine Layout; Intended Use; Noise

EFFE4 B - EFFE6 B
EFFE4-6 B_EN - 2010/07 Ed. 05
- 13 -
2.2.3 Technical features
(2) Machines with aircondensation, only
(3) Machines with watercondensation, only

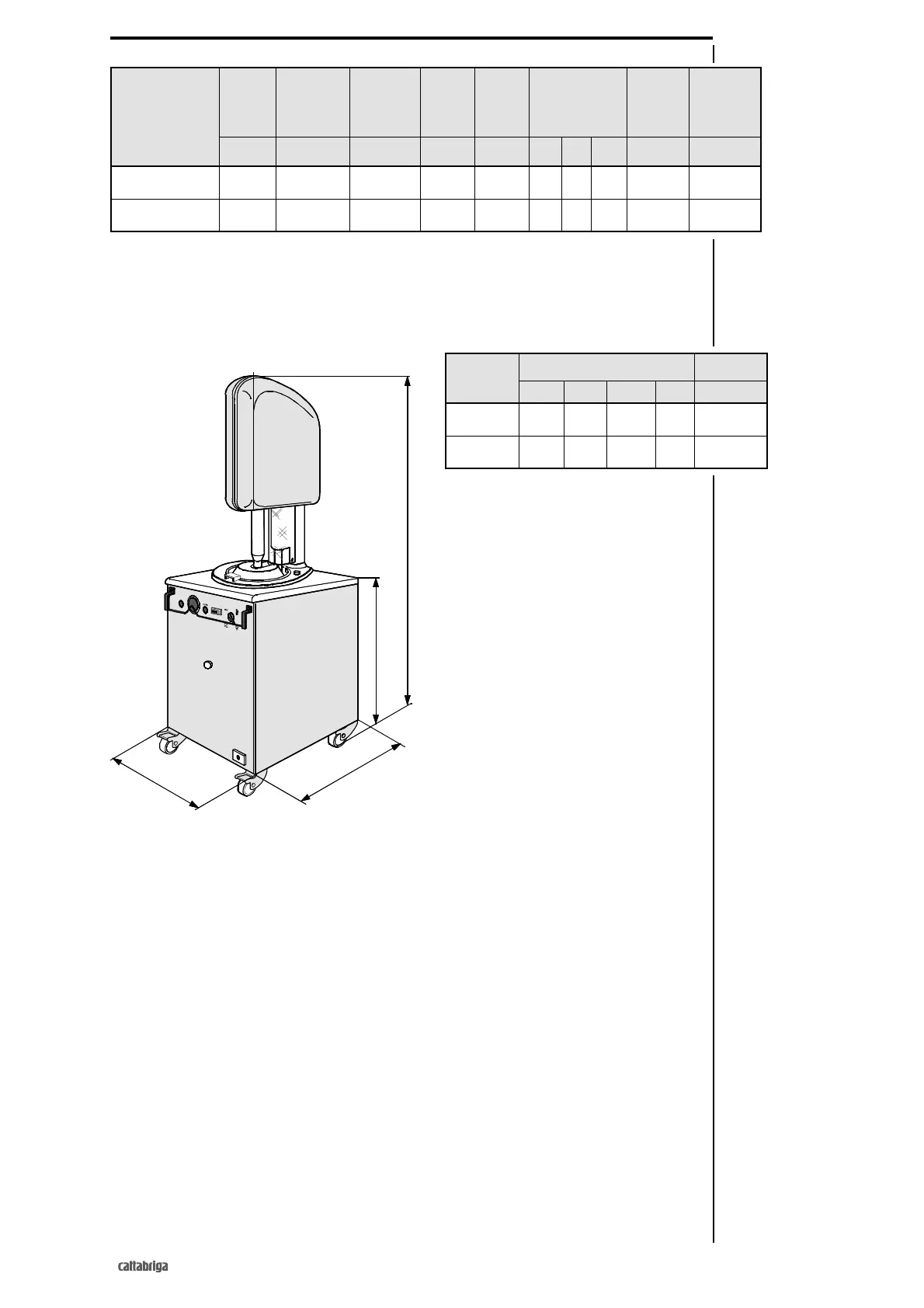

2.2.4 Machine layout
A
B
D
C
2.3 INTENDED USE
Vertical batch freezers series EFFE B must only be used for the production of ice cream, con-
forming with content of paragraph 2.2.1 "General Data", within the functional limits hereunder
reported:
• Voltage ±10%
• Min air temperature °C 10°C
• Max air temperature °C 43°C
• Min water temperature 10°C
• Max water temperature 30°C
• Min. water pressure 1 bar
• Max water pressure 8 bar
• Max relative humidity 85%
• This machine has not been designed for use not in compliance with its original design and
purpose.
2.4 NOISE
The steady acoustic pressure level weighed A in a working place alike by watercooled and by
aircooled machines is less than 70 dB(A).
Model
Dimensions mm Net weight
ABCD Kg
EFFE 4 B
1860 950 695 510 225
EFFE 6 B
2000 950 835 550 295
Model
Produc-
tion per
cycle
Compres-
sor motor
power
Beater mo-
tor power
Fan
motor
power
(2)
Anti-
freeze
diluted
50%
Electric power
Installed
power
Water con-
sumption
(3)
litres kW kW kW litri
Volt Hz Ph kW
litres/h
EFFE 4 B
4 1,1 0,75 0,13 6-7 380
50 3
2,0 170
EFFE 6 B
6 2,2 1,1 0,13 18 380
50 3
3,3 200
Fig. 6
