5 SAFETY DEVICES
WARNING
CATTABRIGA cannot be responsible for damages to persons and/or things if one has
tampered with machine safety devices or left them out.
5.1 SAFETY BAR AND EMERGENCY BUTTON
Safety bar and emergency button are installed in such a way that the operator can reach the safety
bar with his hands, pelvis or hip.
When pressing the button, the unit will IMMEDIATLEY set to STOP. The button has a nonreturn
mechanism. Reset is manual.
5.2 SAFETY SENSOR FOR ICE CREAM BOWL COVER
Magnetoswitch activating the safety sound device on cover opening, without stopping the ma-
chine operation in order to take out ice cream from the bowl.
5.3 SOUND WARNING DEVICE
It is activated whenever ice cream bowl cover is opened, so as to warn the operator.
5.4 HAIR SAVER COVER WITH
ANTI-REMOVAL SENSOR
A mechanical protection to avoid the possible entangle-
ment of clothing, hair, etc., with the motor transmission
shaft of the ice cream machine and with the motor drive
shaft. It is equipped with an anti-removal sensor that
blocks the utilisation of the machine.

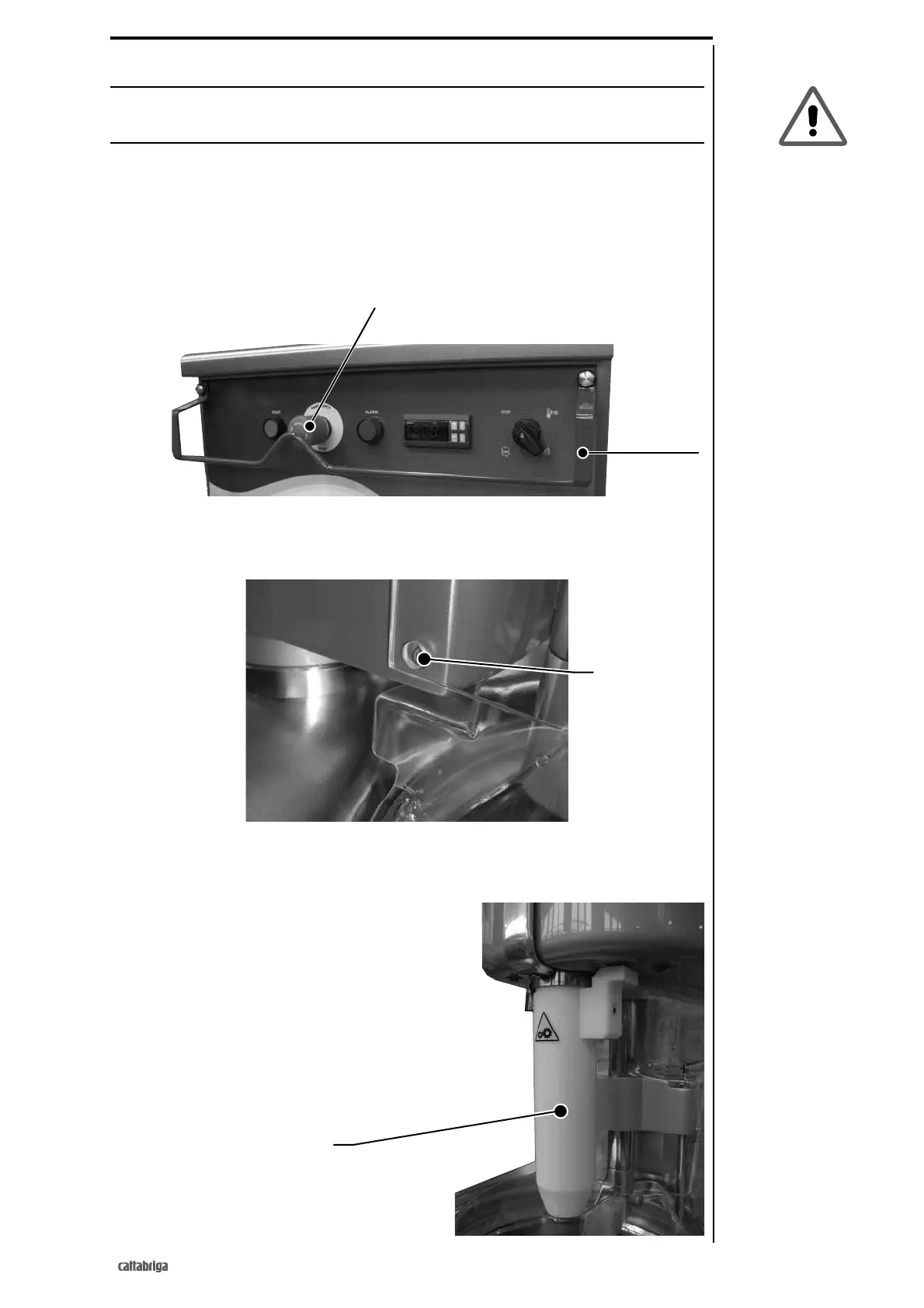

Safety
bar
Emergency
button
Fig. 11
Fig. 12
Fig. 13
Buzzer
Hair saver
cover
